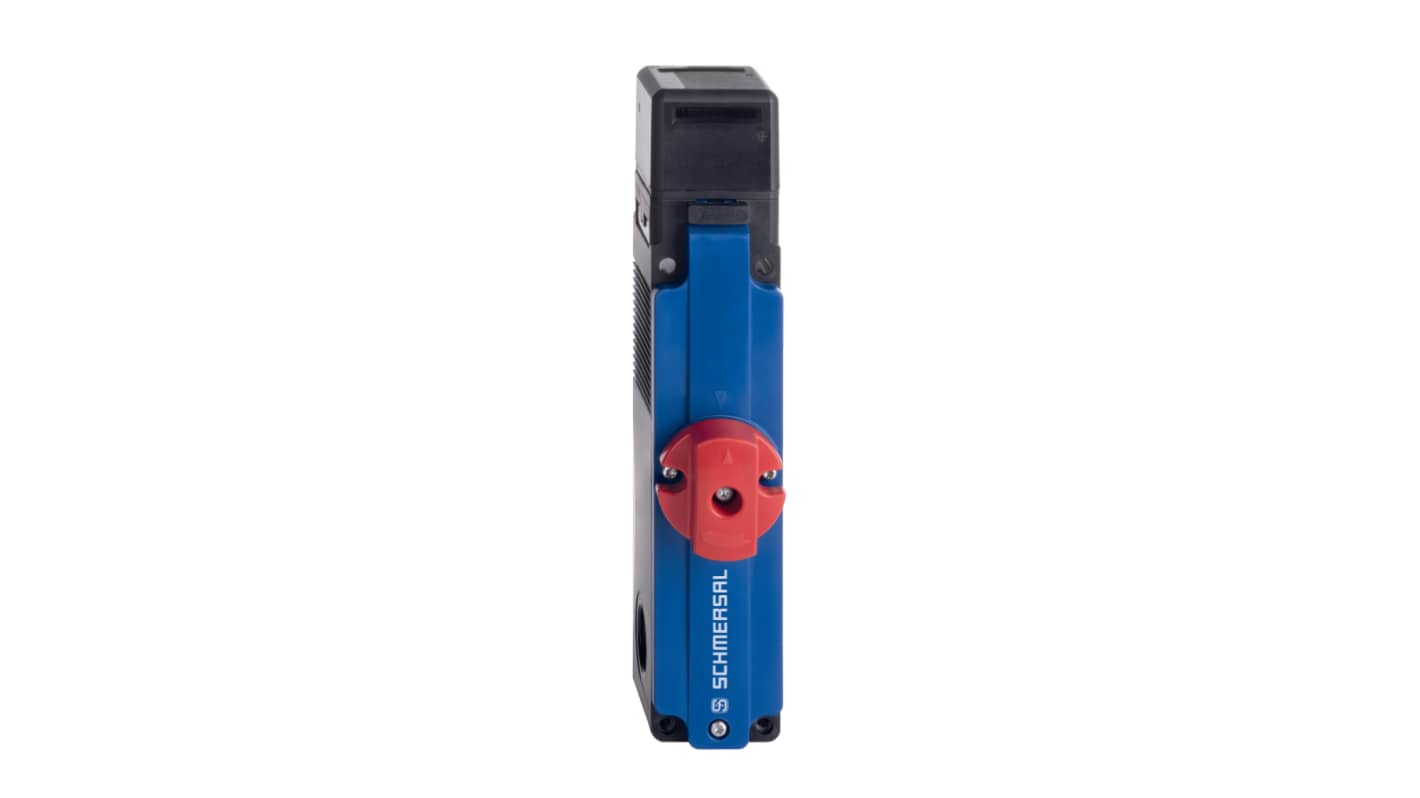

Schmersal AZM 150 Series Solenoid Interlock Switch, Power to Unlock
- RS 제품 번호:
- 335-739
- 제조사 부품 번호:
- AZM150SK-02/02RT-024
- 제조업체:
- Schmersal
Subtotal (1 unit)*
₩458,078.40
제조사가 재고 비축중
- 2026년 6월 26일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩458,078.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 335-739
- 제조사 부품 번호:
- AZM150SK-02/02RT-024
- 제조업체:
- Schmersal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schmersal | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | No | |
| Series | AZM 150 | |
| Safety Contacts | 4 | |
| Conduit Entry | 3 x (M20 x 1.5) | |
| Terminal Type | Screw | |
| Contact DC Voltage | 24V dc | |
| Contact Current | 4A | |
| Power to Lock/Unlock | Power to Unlock | |
| Contact AC Voltage | 230V ac | |
| Housing Material | Thermoplastic, Polyamide 6 Fibre Glass | |
| Depth | 204mm | |
| Width | 40mm | |
| IP Rating | IP67, IP65 | |
| Length | 64mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EN ISO 14119, EN IEC 60947-5-1, cULus, TÜV, EN ISO 13849-1 | |
| Power Consumption | 8.5W | |
| Supply Voltage | 24V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schmersal | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included No | ||
Series AZM 150 | ||
Safety Contacts 4 | ||
Conduit Entry 3 x (M20 x 1.5) | ||
Terminal Type Screw | ||
Contact DC Voltage 24V dc | ||
Contact Current 4A | ||
Power to Lock/Unlock Power to Unlock | ||
Contact AC Voltage 230V ac | ||
Housing Material Thermoplastic, Polyamide 6 Fibre Glass | ||
Depth 204mm | ||
Width 40mm | ||
IP Rating IP67, IP65 | ||
Length 64mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals EN ISO 14119, EN IEC 60947-5-1, cULus, TÜV, EN ISO 13849-1 | ||
Power Consumption 8.5W | ||
Supply Voltage 24V dc | ||
제외
- COO (Country of Origin):
- CN
The Schmersal solenoid interlock features a robust thermoplastic enclosure, eight approach levels enabled by its rotating head, and is designed for easy installation, particularly on 40 mm profiles.
Coding level according to EN ISO 14119 are Low
Working principle are electromechanical
Housing material Thermoplastic, Polyamide PA 6 GF
Gross weight 601 g
