Subtotal (1 unit)*
₩363,592.00
일시적 품절
- 2026년 3월 10일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩363,592.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 860-2887
- 제조사 부품 번호:
- PR 2020
- 제조업체:
- Steca
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Steca | |
| Solar Panel Voltage | 24V | |
| Product Type | Solar Charge Controller | |
| Maximum Current Rating - 24V Panel | 20A | |
| Maximum Current Rating - 12V Panel | 20A | |
| Width | 96 mm | |
| Length | 187mm | |
| Depth | 44mm | |
| Standards/Approvals | UL, VDE, CE | |
| Better World Claim | Renewable Energy Solution | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Steca | ||
Solar Panel Voltage 24V | ||
Product Type Solar Charge Controller | ||
Maximum Current Rating - 24V Panel 20A | ||
Maximum Current Rating - 12V Panel 20A | ||
Width 96 mm | ||
Length 187mm | ||
Depth 44mm | ||
Standards/Approvals UL, VDE, CE | ||
Better World Claim Renewable Energy Solution | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE

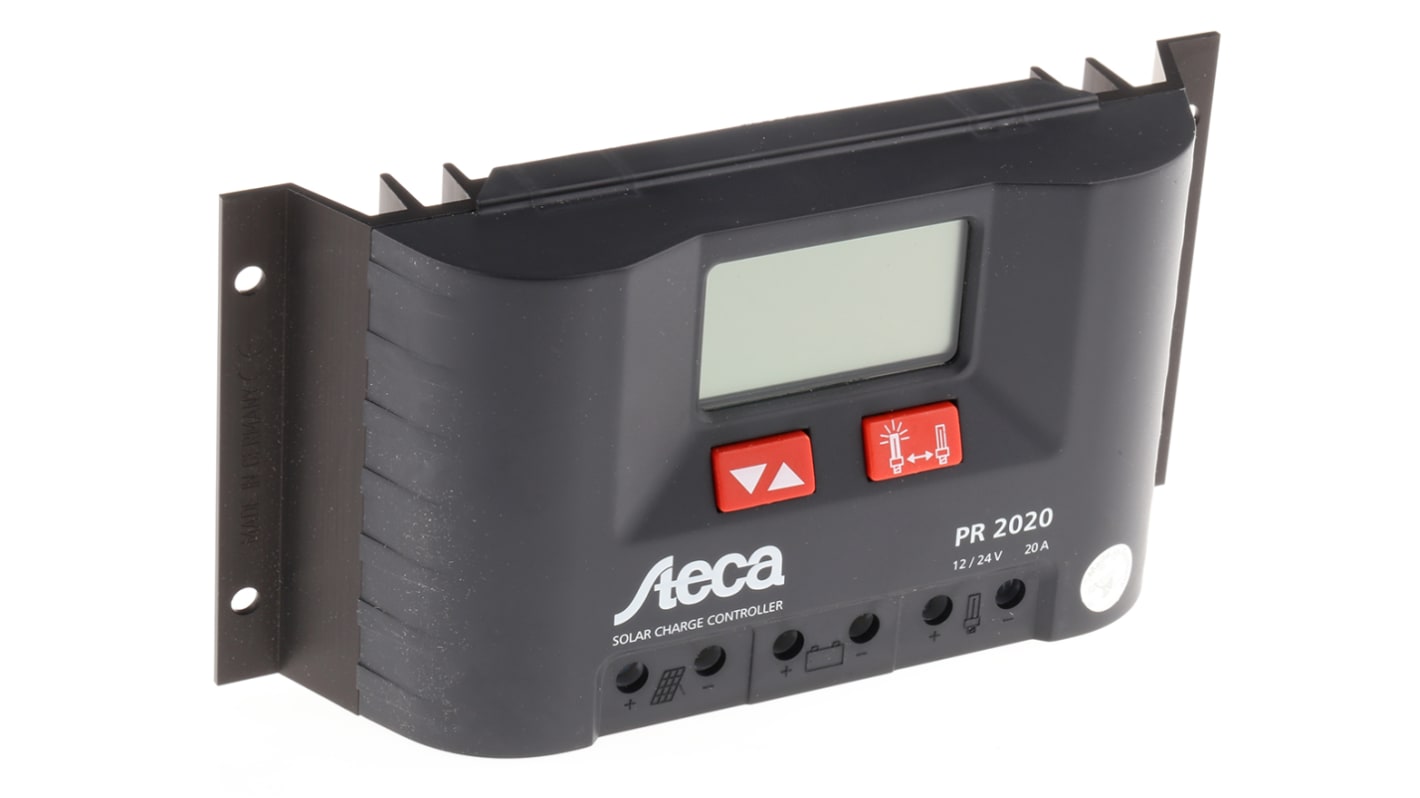

Solar Charge Regulator Steca PR
The Steca PR 10-30 series of charge controllers is the highlight in the range.
Use of the latest charging technologies combined with state of charge determination enable optimal battery maintenance and module power monitoring for up to 900 Wp of connected power. A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display
Hybrid controller
State of charge determination with Steca AtonIC (SOC)
Automatic detection of voltage
PWM control
Multistage charging technology
Load disconnection depending on SOC
Automatic load reconnection
Temperature compensation
Common positive or negative grounding on one terminal
Integrated data logger / energy meter
Night light and morning light function
Integrated self test
Monthly maintenance charge
Safety Features:
Electronic fuse, protection against overcurrent, overvoltage and overtemperaturer
Protection against wrong polarity and short circuit
Extremly low electromagnetic emission
