제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SKF
	Product Type	Socket
	Socket Size	22 mm
	Drive Size	3/8 in
	Socket Type	Locking Socket
	Standards/Approvals	No
	Overall Length	45.0mm
	Material	Steel
	Drive Type	Square

로그인하여 CAD 모델 다운로드

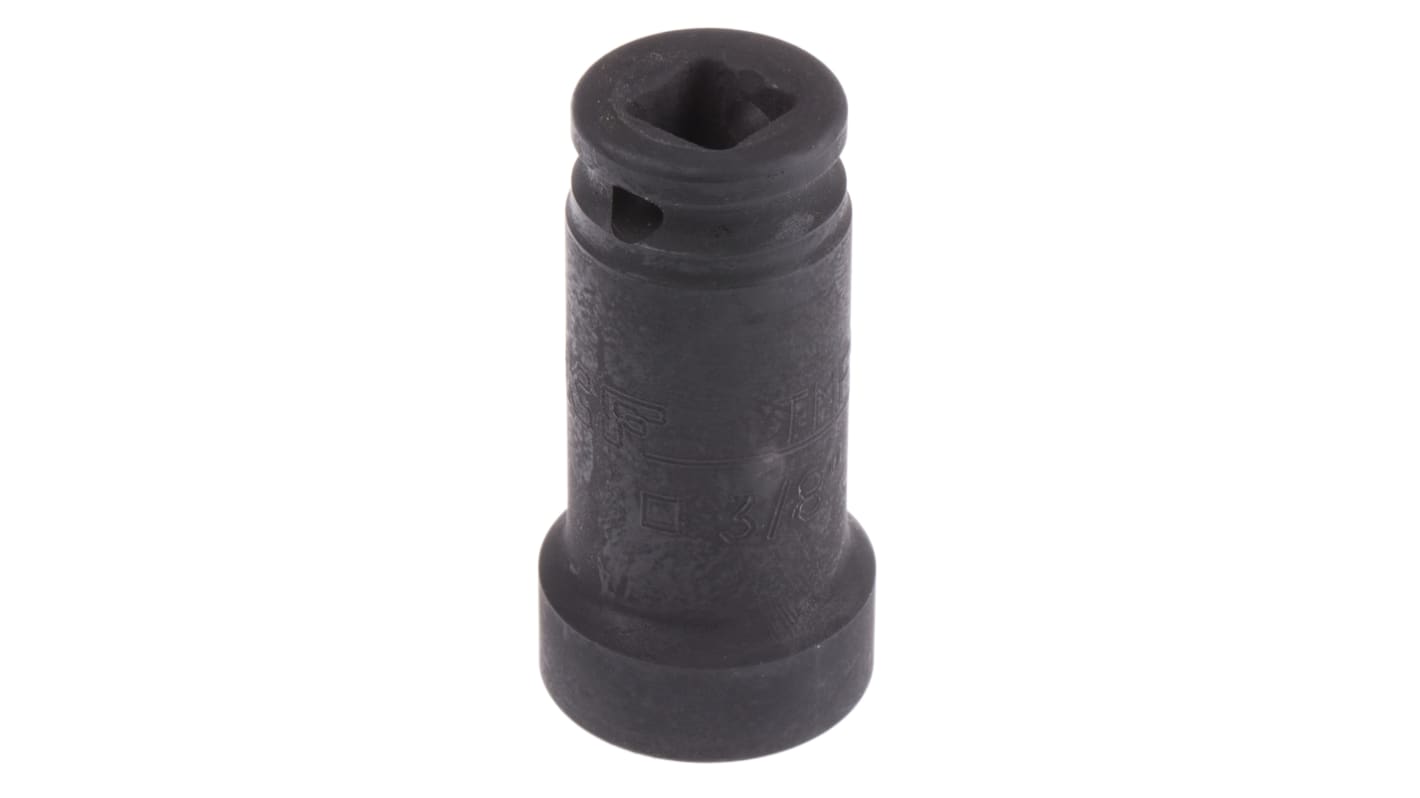

SKF Socket, For Use With Axial Locknuts, 28mm OD, 45mm Height, 3/8-Inch Drive Connection - TMFS 1

Wondering if there's a hassle-free way of tightening your axial locknuts? Take a turn with this socket from SKF. After threading a bearing and washer onto a rotary shaft, pop this unit on a torque wrench and use it to secure the assembly with a suitable locknut. Doing this keeps your bearing in place to provide you with maximum machine reliability. Thanks to the unit's 3/8in drive connection, it's a versatile product you can use with many standard power tools and wrenches.

Features & Benefits

• Low effective height of 45mm for working on locknuts in awkward areas

• Suitable for use on tapered journals and adapter and withdrawal sleeves, so it's a flexible piece of kit

• Compatible with a hook spanner (204-4549) for precision hand-tightening

• Hardened and tempered alloy engineering steel holds up to rigorous use

Applications

• Power generation

• Manufacturing plants

• Aerospace machinery

• Agricultural equipment

What size locknuts can I tighten with this socket fitting?

This versatile unit is designed for M12x1 locknuts with a width of 4 or 9mm.

SKF Axial Lock Nut Sockets TMFS Series

Incorrect mounting of bearings causes damage to the bearing and equipment. These TMFS series axial lock nut sockets from SKF have been designed for easy mounting and dismounting of the bearing nuts without damage.

Features and Benefits

• Requires less space around the bearing than hook spanners

• Fit nuts of series KM, KMK and KMF

SKF 3/8 in Drive 22 mm Locking Socket Square, 45.0 mm Overall Length
