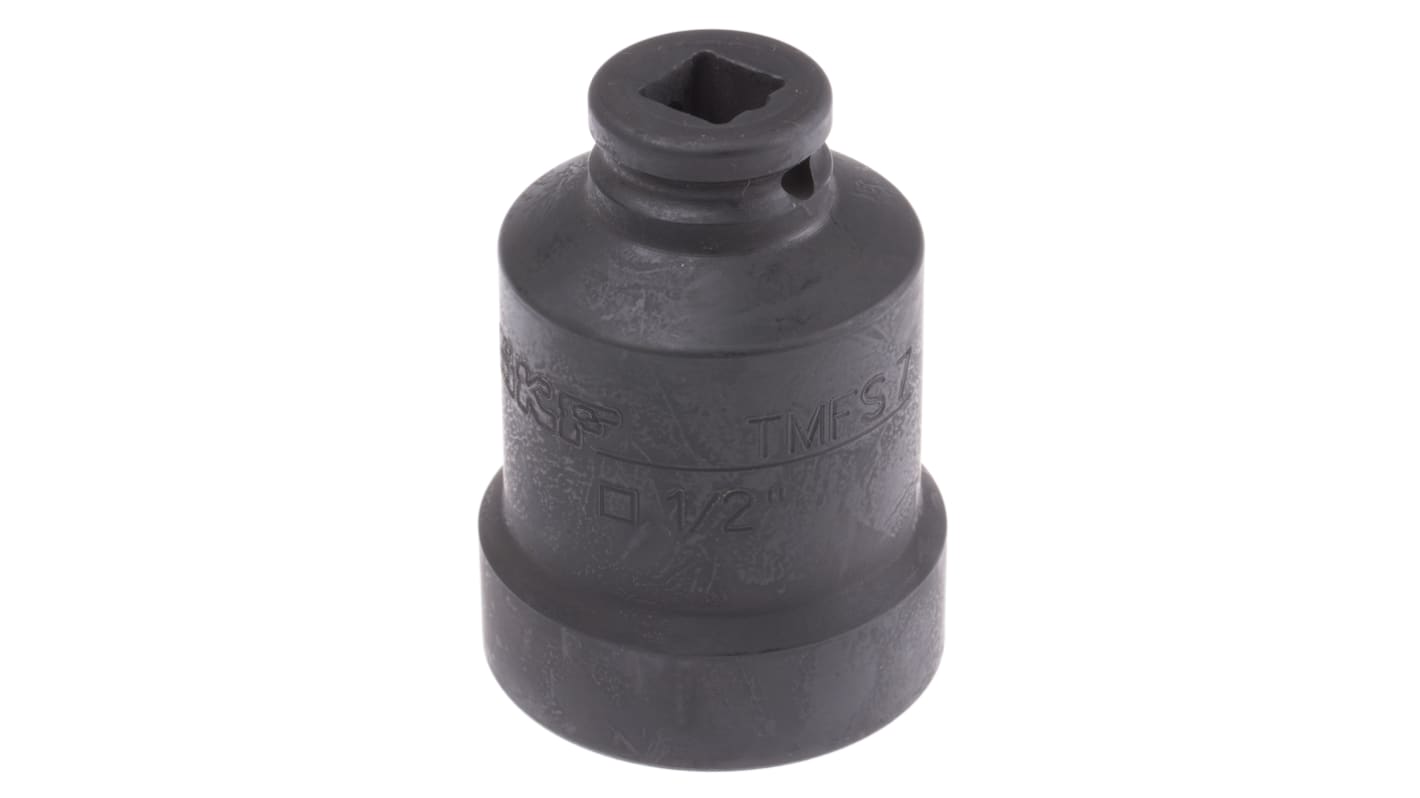

SKF 1/2 in Drive 52 mm Locking Socket Square, 58 mm Overall Length
- RS 제품 번호:
- 124-8443
- 제조사 부품 번호:
- TMFS 7
- 제조업체:
- SKF
Subtotal (1 unit)*
₩215,241.20
재고있음
- 추가로 2026년 4월 13일 부터 9 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩215,241.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-8443
- 제조사 부품 번호:
- TMFS 7
- 제조업체:
- SKF
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SKF | |
| Product Type | Socket | |
| Socket Size | 52 mm | |
| Drive Size | 1/2 in | |
| Socket Type | Locking Socket | |
| Standards/Approvals | No | |
| Overall Length | 58mm | |
| Material | Alloy Steel | |
| Drive Type | Square | |
| 모두 선택 | ||
|---|---|---|
브랜드 SKF | ||
Product Type Socket | ||
Socket Size 52 mm | ||
Drive Size 1/2 in | ||
Socket Type Locking Socket | ||
Standards/Approvals No | ||
Overall Length 58mm | ||
Material Alloy Steel | ||
Drive Type Square | ||
SKF Axial Lock Nut Socket With Square Drive, 52mm Socket Size, 58mm Bit Length - TMFS 7
Looking for a tool to loosen or tighten your bearings without damaging them? Use this axial lock nut socket from SKF. It fits over your lock nut so you can turn it precisely in a set direction. For greater control, you can insert a power tool or torque wrench through the 1/2-inch connection hole. This versatile device is suitable for use with bearings mounted on an adapter or withdrawal sleeve, as well as on a tapered journal.
• Compatible with the KM, KMK and KMFE series of lock nuts for versatility
• Compact dimensions of 52 (diameter) x 58mm (length) require less space around the bearing than a hook spanner
Applications
• Manufacturing assembly lines
• Mining and quarrying
• Hydraulic pumps
• Wind turbines
How do I measure a lock nut?
You can use a vernier caliper to measure the internal and external diameter of the nut or use a tape measure to measure its bore size. Measuring your lock nut ensures you're using the correct socket and tools, making mounting and dismounting hassle-free.
