Martindale, Model PC104/16 Socket Tester 16A 415V CAT III

RS 제품 번호:: 776-1995
제조사 부품 번호:: PC104-16
제조업체:: Martindale

Martindale, Model PC104/16 Socket Tester 16A 415V CAT III

Subtotal (1 unit)*

₩177,118.50

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩177,118.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 776-1995
제조사 부품 번호:: PC104-16
제조업체:: Martindale

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Martindale
	Product Type	Socket Tester
	Voltage	415V
	Current	16A
	Earth Loop Impedance Test	Yes
	Number of Pins	4
	Wiring Check	Yes
	Minimum Operating Temperature	-10°C
	Power Source	Mains
	Maximum Operating Temperature	40°C
	Model Number	PC104/16
	Weight	292g
	Height	54mm
	Length	131mm
	Standards/Approvals	RoHS
	Width	94mm
	Safety Category Level	CAT III
	Safety Category Voltage	300V

	모두 선택
	브랜드 Martindale
	Product Type Socket Tester
	Voltage 415V
	Current 16A
	Earth Loop Impedance Test Yes
	Number of Pins 4
	Wiring Check Yes
	Minimum Operating Temperature -10°C
	Power Source Mains
	Maximum Operating Temperature 40°C
	Model Number PC104/16
	Weight 292g
	Height 54mm
	Length 131mm
	Standards/Approvals RoHS
	Width 94mm
	Safety Category Level CAT III
	Safety Category Voltage 300V

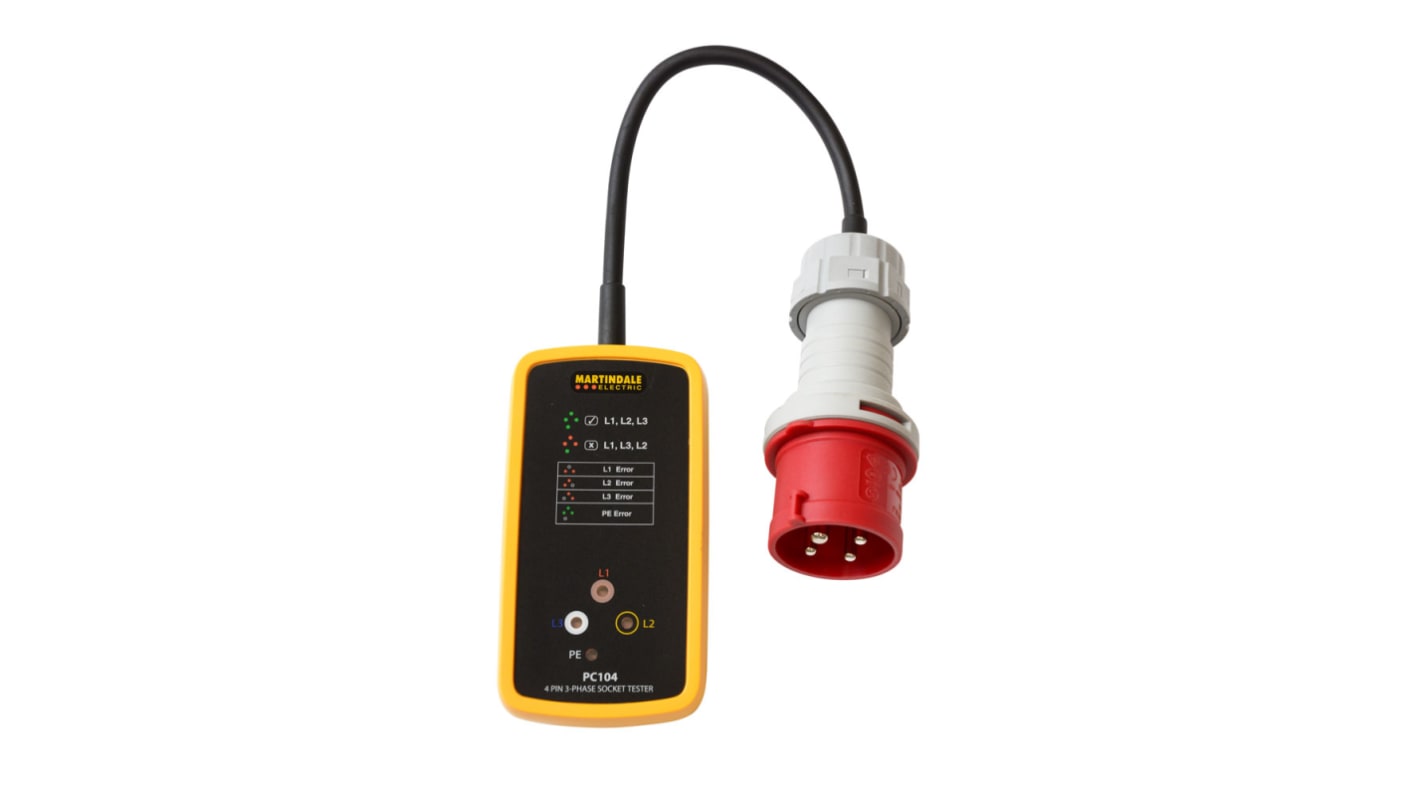

PC104 3 Phase Industrial Socket Tester

The PC104 is a 3 phase socket tester designed to quickly check for the presence of phase, phase sequence and PE in 4 pin, 16A, 32A and 63A sockets.

This device includes a four-pin socket for connection to compatible sockets which is attached via a cable to the main body of the socket tester

Once it's connected up the device will evaluate phase presence, phase sequence and PE presence and display the results as coloured LED indicators

The device includes a handy guide on the front that shows the different possible LED indications

L1, L2 and L3 are present

L1, L2 and L3 are missing, PE present

L1 error

L2 error

L3 error

PE error

Martindale, Model PC104/16 Socket Tester 16A 415V CAT III

PC104 3 Phase Industrial Socket Tester
