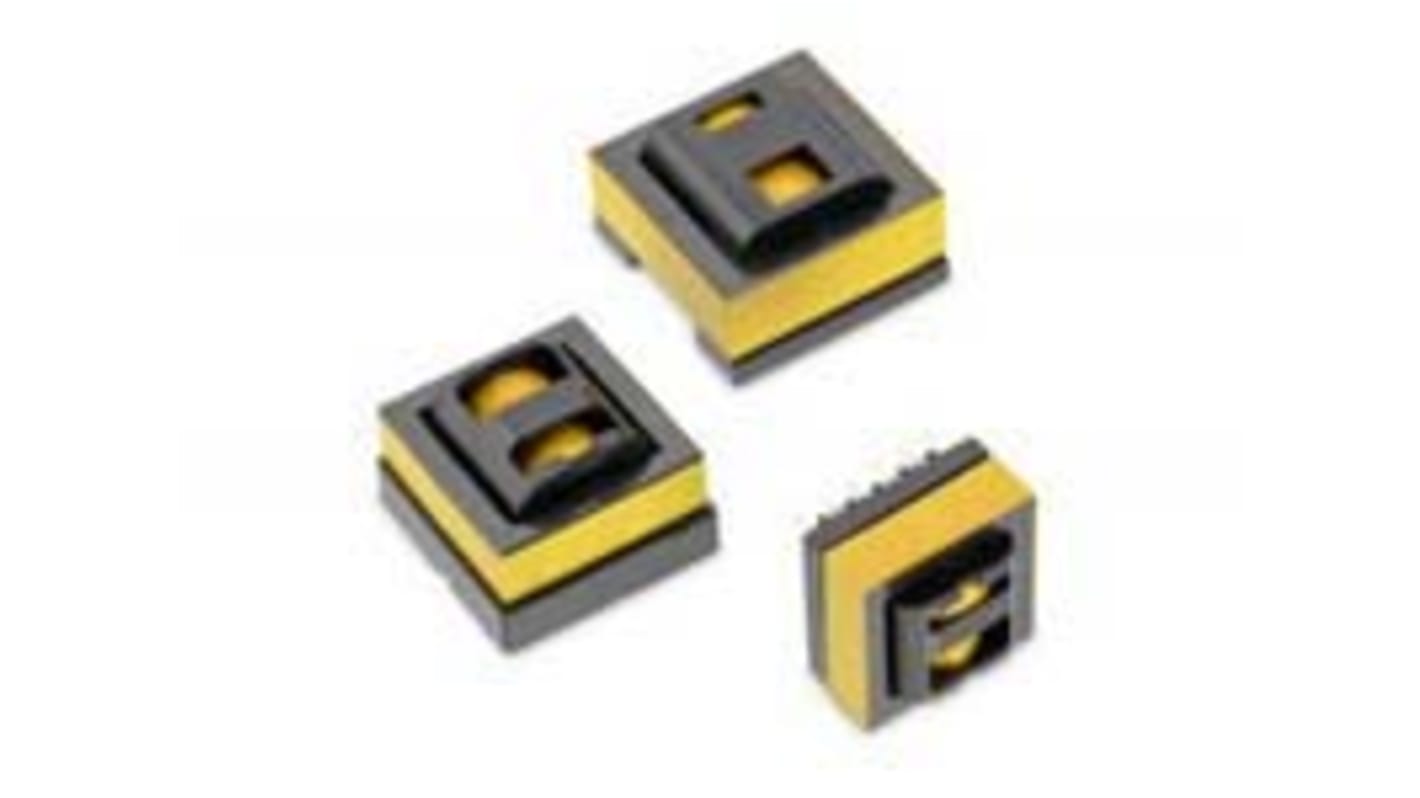

Wurth Elektronik 1 Output SMPS Transformer 200 W Output, 360/400 V, 24 V, 500 μH
- RS 제품 번호:
- 163-5620
- 제조사 부품 번호:
- 760895641
- 제조업체:
- Wurth Elektronik
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 163-5620
- 제조사 부품 번호:
- 760895641
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Product Type | SMPS Transformer | |
| Secondary Voltage | 24 V | |
| Primary Voltage | 360/400 V | |
| Number of Outputs | 1 | |
| Mount Type | Through Hole | |
| Inductance | 500μH | |
| Power | 200W | |
| Secondary Current | 3.5A | |
| Number of Pins | 14 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 44mm | |
| Weight | 85g | |
| Series | WE-LLCR | |
| Width | 43mm | |
| Standards/Approvals | No | |
| Depth | 30mm | |
| Isolation Voltage | 250V | |
| Leakage Inductance | 95μH | |
| Turns Ratio | 35 : 4 : 4 : 3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Product Type SMPS Transformer | ||
Secondary Voltage 24 V | ||
Primary Voltage 360/400 V | ||
Number of Outputs 1 | ||
Mount Type Through Hole | ||
Inductance 500μH | ||
Power 200W | ||
Secondary Current 3.5A | ||
Number of Pins 14 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 44mm | ||
Weight 85g | ||
Series WE-LLCR | ||
Width 43mm | ||
Standards/Approvals No | ||
Depth 30mm | ||
Isolation Voltage 250V | ||
Leakage Inductance 95μH | ||
Turns Ratio 35 : 4 : 4 : 3 | ||
- COO (Country of Origin):
- CN
WE-LLCR Resonant Converter
Transformer for high efficiency power supplies
Three transformer sizes with three values per size available
Litz wire for low eddy current losses
Defined leakage inductance for use without additional resonant inductor
Testing voltage 4 kV (AC)
Applications include: Power supplies, including PC and Notebook Power supplies, LED lighting power supplies; Highly efficient resonant converters
