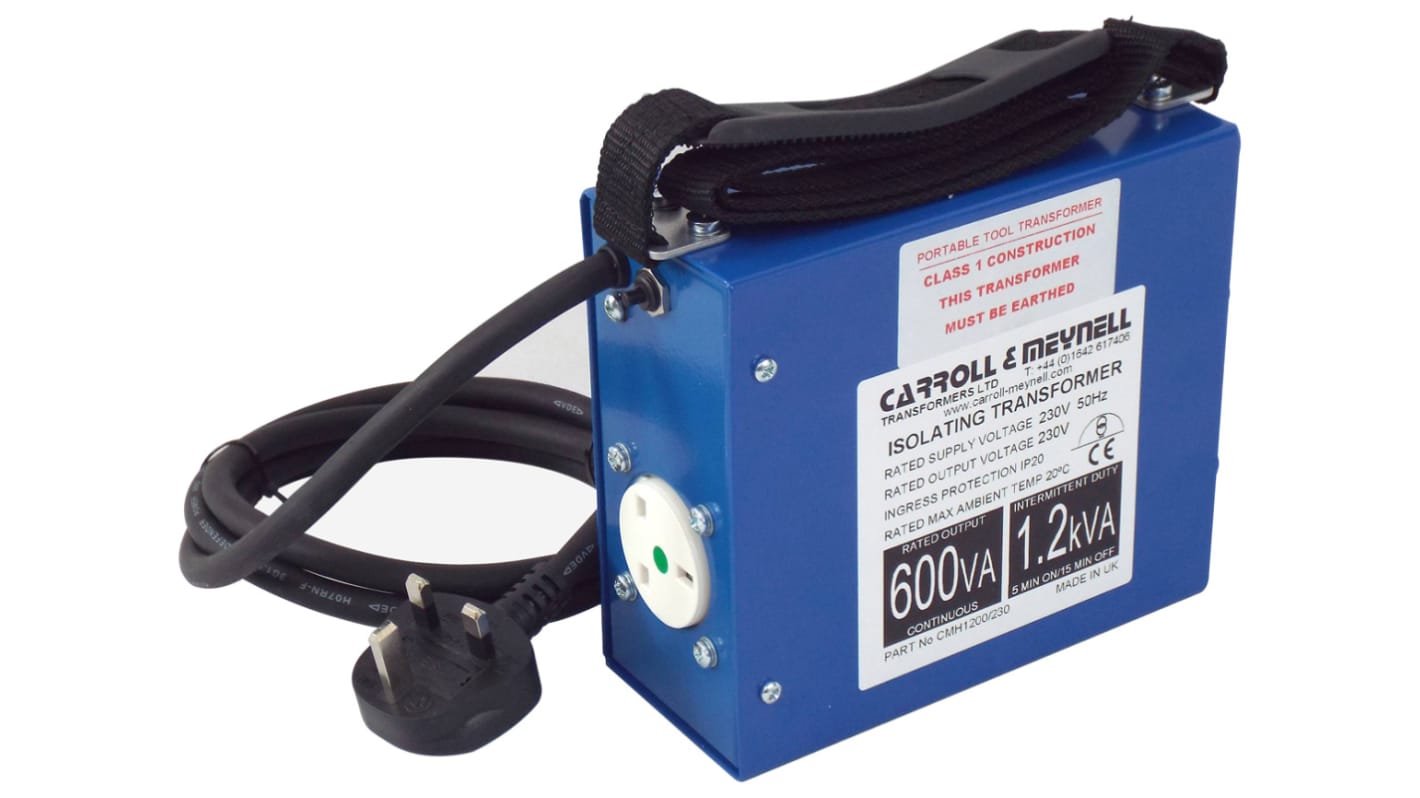

Carroll & Meynell Single Phase 1.2kVA Site Transformer, 230V ac Primary, 230V ac Secondary, 5.2A O/P
- RS 제품 번호:
- 436-8827
- 제조사 부품 번호:
- CMH 1200/230
- 제조업체:
- Carroll & Meynell
- RS 제품 번호:
- 436-8827
- 제조사 부품 번호:
- CMH 1200/230
- 제조업체:
- Carroll & Meynell
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Single Phase 230V ac Input, 230V ac Output
Brought to you by Carroll & Meynell, this selection of rugged portable isolating Transformers are designed to ensure an isolated supply when working on equipment connected to the mains supply. With a resettable thermal cut out in the primary circuit to prevent overload, these high quality single phase transformers are ideal for test/service engineers.
Features and Benefits:
• Double wound
• 230V secondaries
• All insulated blue GRP or sheet steel enclosure
• Thermal safety overload fuse embedded into primary windings
• Approx. 2m mains cable fitted with 13A plug
• High quality manufactured and tested in accordance with BSEN 61558-2-23
• Double wound
• 230V secondaries
• All insulated blue GRP or sheet steel enclosure
• Thermal safety overload fuse embedded into primary windings
• Approx. 2m mains cable fitted with 13A plug
• High quality manufactured and tested in accordance with BSEN 61558-2-23
This selection of Portable Safety Isolating Transformers includes:
사양
속성 | 값 |
---|---|
Primary Voltage Rating | 230V ac |
Secondary Voltage Rating | 230V ac |
Power Rating | 1.2kVA |
Number of Phases | 1 |
Output Current | 5.2A |
Series | CMH1200/230 |
Plug Type | Type G - British 3-Pin |
Socket Type | Type G - British 3-Pin |
Weight | 7kg |
Width | 74mm |
Depth | 200mm |
Dimensions | W74 x D200 x H160mm |
Mounting Type | Shoulder Carry |
Minimum Operating Frequency | 50Hz |
Maximum Operating Frequency | 60Hz |
