RS PRO 2.5 kVA Intermittent 5 Mins on 15 Mins off Site Transformer, 230V ac Primary, 110 (55V Secondary

모든 Site Transformers 열람하기

Subtotal (1 unit)*

₩918,474.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 4 개 단위 배송 준비 완료
  • 추가로 다른 지역에서 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩918,474.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
122-6718
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Primary Voltage Rating

230V ac

Secondary Voltage Rating

110 (55V-0V-55V)V

Power Rating

2.5 kVA Intermittent 5 Mins on 15 Mins off

Length

350mm

Width

242mm

Depth

353mm

Dimensions

350 x 242 x 353mm

Mounting Type

Stand Alone

Maximum Operating Frequency

50Hz

Minimum Operating Frequency

50Hz

COO (Country of Origin):
GB

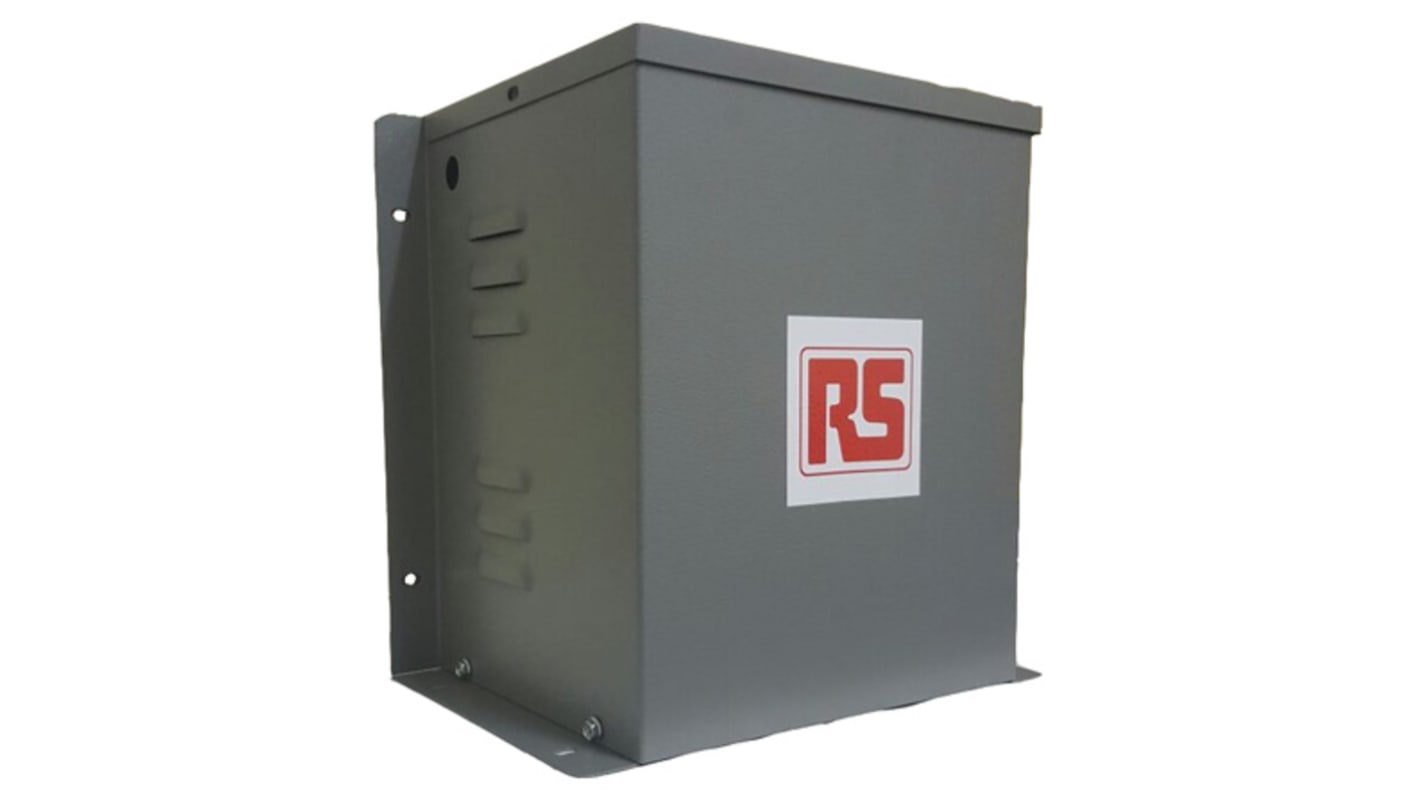

RS PRO 2.5 kVA Isolation Transformer, 230 V AC


Need a safe power supply for your tools? Use this safety transformer from RS PRO. It's designed for use with a range of applications in industrial and garage settings.


This continuous single-phase transformer has an output of 110 V AC and an input of 230 V AC, allowing you to step the voltage down when needed. This offers you control in case of a cut cable or other hazard. For additional safety, the 110 V secondary winding is centre-tapped to earth.


It's easy to install and use thanks to the mounting flanges and conduit entry points. The thermal magnetic trip also reduces the chance of an overload. The housing on this device is made from durable steel and is IP22-rated. This protects the device from water and keeps your fingers safe from electrical hazards.

Features and Benefits



  • Dimensions of 350 (length) x 242 (width) x 353 mm (depth)

  • Operating frequency of 50 Hz

  • Standalone mounting type

  • Power rating of 2.5 kVA

  • Primary voltage rating of 230 V AC

  • Secondary voltage rating of 110 (55V-0V-55V) V


Note

Continuous Rating: 1.65kVA
Intermittent Rating: 3.3kVA at maximum operating load with duty cycle 5 minutes on/15 minutes off.
