RS PRO Site Transformer, 230 V ac Primary, 230 V ac Secondary, 13 A O/P
- RS 제품 번호:
- 122-6713
- Distrelec 제품 번호:
- 304-03-851
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩373,255.20
재고있음
- 추가로 2026년 2월 23일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩373,255.20 |
| 5 + | ₩307,192.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 122-6713
- Distrelec 제품 번호:
- 304-03-851
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage | 230 V ac | |
| Product Type | Site Transformer | |
| Secondary Voltage | 230 V ac | |
| Output Current | 13A | |
| Mount Type | Stand Alone | |
| Plug Type | BS1363 | |
| Socket Type | BS1363 | |
| Standards/Approvals | IP44 | |
| Weight | 12kg | |
| Depth | 265mm | |
| Width | 195 mm | |
| Length | 195mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage 230 V ac | ||
Product Type Site Transformer | ||
Secondary Voltage 230 V ac | ||
Output Current 13A | ||
Mount Type Stand Alone | ||
Plug Type BS1363 | ||
Socket Type BS1363 | ||
Standards/Approvals IP44 | ||
Weight 12kg | ||
Depth 265mm | ||
Width 195 mm | ||
Length 195mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- GB

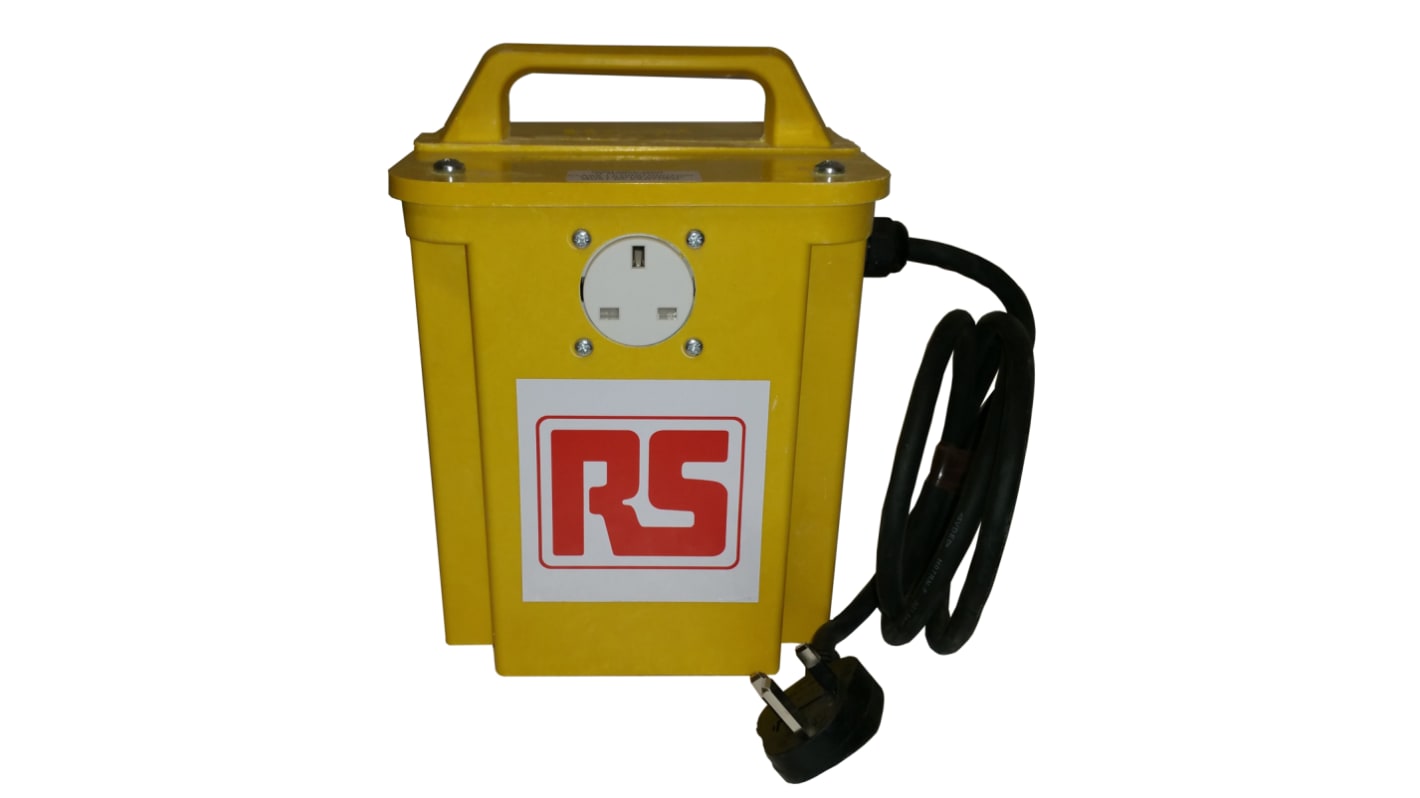

RS PRO 1.5 kVA Isolation Transformer, 230 V AC, 2 x 13 A
Need to safely isolate your equipment from a 230 V AC UK mains supply? This isolating transformer from RS PRO is encased in a robust, fibreglass-reinforced plastic enclosure that prevents it from being knocked or damaged. The unit is fitted with a standard 3-pin socket so you can use it to power a wide variety of appliances.
There's little chance of overload thanks to the transformer's thermal magnetic trip. The unit conforms to a range of industry standards, including BSEN 61558 as a safe transformer. It's also compliant with the EU's Restriction of Hazardous Substances directive (RoHS), which means it contains only minimal levels of any environmentally harmful materials. This standalone unit is fitted with a handle on the top to make it portable.
Features and Benefits
• Output current of 2 x 13 A
• Length of 195 mm
• Width of 195 mm
• Depth of 265 mm
• Maximum operating frequency of 60 Hz
• Minimum operating frequency of 50 Hz
• Power rating of 1.5 kVA
• BS1363 socket
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 230 V AC
• Standalone mounting
• Weight of 12 kg
Note
Continuous Rating: 1.65kVA
Intermittent Rating: 3.3kVA at maximum operating load with duty cycle 5 minutes on/15 minutes off.
Intermittent Rating: 3.3kVA at maximum operating load with duty cycle 5 minutes on/15 minutes off.
