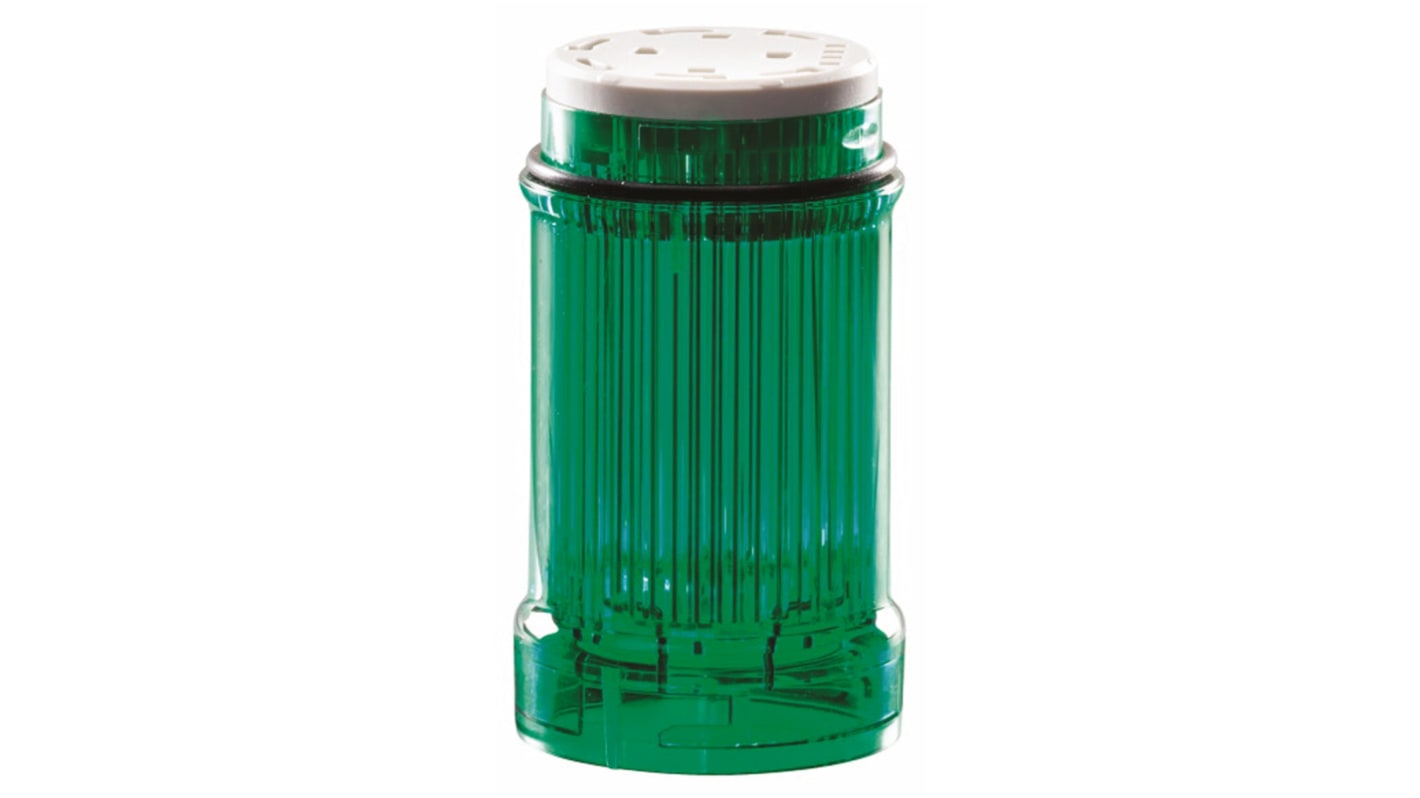

Eaton SL4 Series Green Flashing Effect Beacon Unit, LED Bulb 24V ac/dc, AC/DC, IP66

RS 제품 번호:: 818-3816
제조사 부품 번호:: 171338 SL4-BL24-G
제조업체:: Eaton

Eaton SL4 Series Green Flashing Effect Beacon Unit, LED Bulb 24V ac/dc, AC/DC, IP66

Subtotal (1 unit)*

₩153,309.00

제조사가 재고 비축중

2026년 6월 19일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩153,309.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 818-3816
제조사 부품 번호:: 171338 SL4-BL24-G
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Beacon Unit
	Series	SL4
	Component Type	Beacon
	Multifunction	No
	Current Type	AC/DC
	Light Effect	Flashing
	Current Consumption	0.02, 0.03mA
	Mount Type	Tube
	Lens Colour	Green
	Lamp Included	Yes
	Bulb Type	LED
	Maximum Supply Voltage	24V ac/dc
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CSA, UL
	Height	62mm
	IP Rating	IP66
	Hazardous Area Certification	No
	Housing Colour	Black

	모두 선택
	브랜드 Eaton
	Product Type Beacon Unit
	Series SL4
	Component Type Beacon
	Multifunction No
	Current Type AC/DC
	Light Effect Flashing
	Current Consumption 0.02, 0.03mA
	Mount Type Tube
	Lens Colour Green
	Lamp Included Yes
	Bulb Type LED
	Maximum Supply Voltage 24V ac/dc
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CSA, UL
	Height 62mm
	IP Rating IP66
	Hazardous Area Certification No
	Housing Colour Black

Eaton SL4 Modular Signal Towers

The Eaton SL4 modular safety towers improve the safety, productivity and availability of your machines and equipment. Designed with an attractive rounded shape these new signal towers also feature a 100 dB acoustic module for improved audibility and IP66 rated fixtures that are impervious even to strong jets of water.

The SL4 signal towers new rapid mounting and wiring system allows you to change the composition of the individual signal colours simply and quickly. The mounting adapter uses a bayonet fitting, so electrical wiring only needs to be connected once, meaning the lower portion can remain on the machine.

Various mounting options are available to accommodate applications with limited ceiling clearance or require different signals on the left or right side.

Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending.

Features and Benefits

• Red, yellow, green, blue, clear and orange (amber) colours available for the international market

• Lighting variants include continuous light, flashing light, strobe light and variable strobe light

• LEDs and high performance LEDs for greater brightness

• Acoustic modules with up to 8 different signals and adjustable volume levels for optimal adaptation to any ambient conditions

• High performance LEDs for extra brightness

• IP66 rated for protection against strong jets of water from any direction

• Modules can be changed easily with a simple twist

• Bayonet fitting for quick and easy mounting and dismantling

• Transport cover for cables and connections

• Available in 24 V, 120 V and 230 V versions

• Slim design is ideal for installations with limited space

Note

Eaton formerly known as Moeller

Standards

IEC/EN 60947-5-1.
