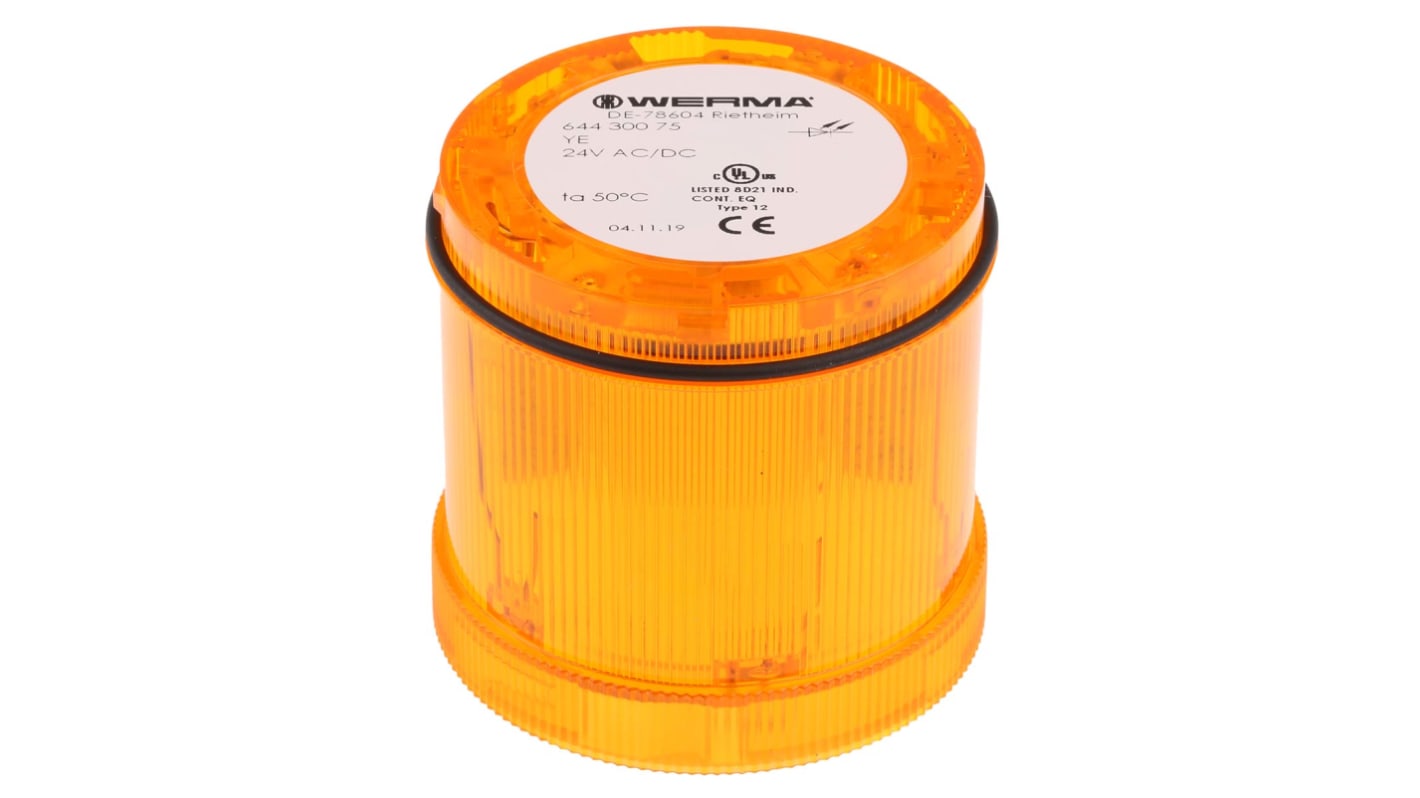

Werma KombiSIGN 71 Series Yellow Steady Effect Beacon Unit, LED Bulb 24V dc, AC/DC, IP65

RS 제품 번호:: 455-3312
Distrelec 제품 번호:: 133-66-361
제조사 부품 번호:: 644.300.75
제조업체:: Werma

Werma KombiSIGN 71 Series Yellow Steady Effect Beacon Unit, LED Bulb 24V dc, AC/DC, IP65

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩88,560.00

추가로 2026년 8월 10일 부터 196 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 5	₩88,560.00
6 - 11	₩86,100.00
12 +	₩82,540.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 455-3312
Distrelec 제품 번호:: 133-66-361
제조사 부품 번호:: 644.300.75
제조업체:: Werma

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Werma
	Product Type	Beacon Unit
	Series	KombiSIGN 71
	Component Type	Beacon
	Multifunction	No
	Current Type	AC/DC
	Light Effect	Steady
	Current Consumption	30mA
	Mount Type	Base
	Lens Colour	Yellow
	Lamp Included	Yes
	Terminal Type	Cable
	Bulb Type	LED
	Maximum Supply Voltage	24V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Height	66mm
	Standards/Approvals	CE
	Hazardous Area Certification	No
	IP Rating	IP65
	Base Diameter	70mm
	Housing Colour	Yellow

	모두 선택
	브랜드 Werma
	Product Type Beacon Unit
	Series KombiSIGN 71
	Component Type Beacon
	Multifunction No
	Current Type AC/DC
	Light Effect Steady
	Current Consumption 30mA
	Mount Type Base
	Lens Colour Yellow
	Lamp Included Yes
	Terminal Type Cable
	Bulb Type LED
	Maximum Supply Voltage 24V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Height 66mm
	Standards/Approvals CE
	Hazardous Area Certification No
	IP Rating IP65
	Base Diameter 70mm
	Housing Colour Yellow

COO (Country of Origin):: DE

Werma KombiSIGN 71 Series Beacon Unit, 24V Maximum Supply Voltage, 70mm Base Diameter - 644.300.75

This beacon unit is a compact visual signalling device designed for industrial environments where a steady yellow warning light is required. It delivers a continuous LED indication from a base-mounted housing rated for outdoor and indoor use, offering straightforward installation onto a surface and wired connection via a cable terminal.

Features and Benefits:

• LED light draws only 30 mA, improving energy efficiency
• Operates from 24V DC for low-voltage control systems
• IP65 protection permits use in dusty and wet conditions
• Suitable for AC/DC supply, providing installation flexibility
• CE marked to indicate conformity with applicable standards
• Yellow lens and housing deliver high-visibility warning indication

Applications

• Suitable for mounting on machinery to indicate operating status
• Ideal for assembly lines requiring continuous visual alerts
• Used with control panels that accept 24V DC signalling devices
• Can be used for minimal-footprint safety warning installations

What connection type is provided for electrical wiring?

A cable-style terminal is supplied for direct hardwiring into control circuits.

What ambient temperatures can the unit tolerate during operation?

It functions correctly between -20 °C and 50 °C without performance change.

How large is the mounting footprint for surface installation?

The beacon uses a 70 mm diameter base for secure base-mounted fitting.

Is the light effect flashing or continuous?

The device provides a steady, continuous LED illumination for constant indication.

What physical height should be allowed when installing in confined spaces?

The unit requires a vertical clearance of 66 mm from the mounting surface.

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.

Approvals

UL listed, CSA, VDE
