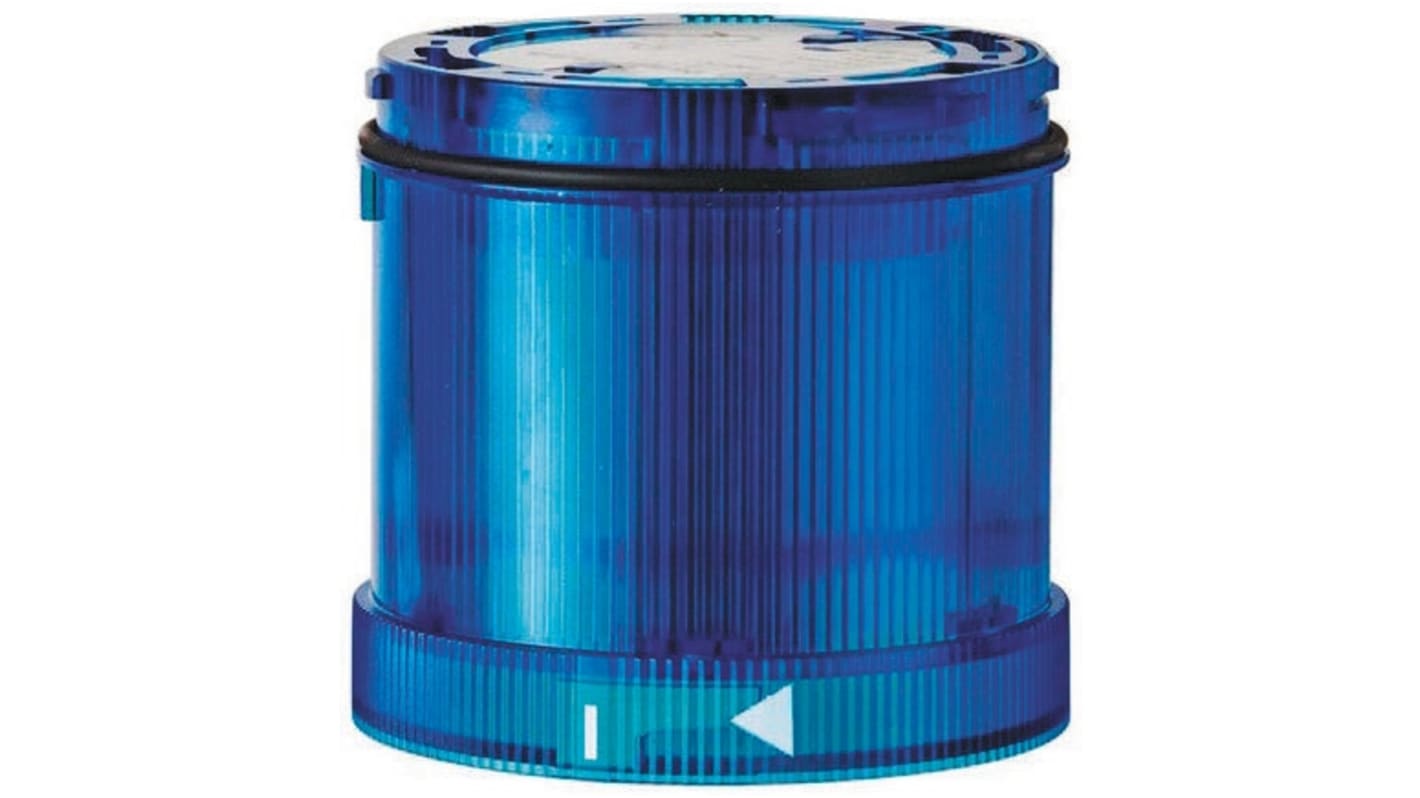

Werma 641 Series Blue Steady Effect Beacon Unit, Filament Bulb 230V ac/dc, AC/DC, IP65
- RS 제품 번호:
- 455-3227
- Distrelec 제품 번호:
- 133-66-350
- 제조사 부품 번호:
- 641.500.00
- 제조업체:
- Werma
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩38,064.00
재고있음
- 5 개 단위 배송 준비 완료
- 추가로 2026년 4월 29일 부터 26 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩38,064.00 |
| 6 - 11 | ₩36,543.00 |
| 12 + | ₩35,002.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 455-3227
- Distrelec 제품 번호:
- 133-66-350
- 제조사 부품 번호:
- 641.500.00
- 제조업체:
- Werma
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Werma | |
| Product Type | Beacon Unit | |
| Series | 641 | |
| Component Type | Beacon | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Mount Type | Base | |
| Light Effect | Steady | |
| Lens Colour | Blue | |
| Lamp Included | Yes | |
| Bulb Type | Filament | |
| Maximum Supply Voltage | 230V ac/dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UL 508, EAC, CSA C22-2 No. 14, CCC | |
| Height | 65mm | |
| Base Diameter | 70mm | |
| IP Rating | IP65 | |
| Hazardous Area Certification | No | |
| Housing Colour | Blue | |
| 모두 선택 | ||
|---|---|---|
브랜드 Werma | ||
Product Type Beacon Unit | ||
Series 641 | ||
Component Type Beacon | ||
Multifunction No | ||
Current Type AC/DC | ||
Mount Type Base | ||
Light Effect Steady | ||
Lens Colour Blue | ||
Lamp Included Yes | ||
Bulb Type Filament | ||
Maximum Supply Voltage 230V ac/dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UL 508, EAC, CSA C22-2 No. 14, CCC | ||
Height 65mm | ||
Base Diameter 70mm | ||
IP Rating IP65 | ||
Hazardous Area Certification No | ||
Housing Colour Blue | ||
- COO (Country of Origin):
- DE
WERMA Blue Beacon Unit, Steady Light Effect, IP65 - KombiSIGN 71 Series - 641.500.00
Signal the status of an ongoing process in your workplace with this blue beacon unit from WERMA. It has a bayonet fixing with an integrated contact system, making it quick and easy to stack with other elements in the KombiSIGN 71 series. The unit's O-ring seal prevents light from passing through to adjacent modules, making it simple to identify which beacon is illuminated. The robust polycarbonate lens material is strong and impact-resistant for use in harsh industrial environments.
Features & Benefits
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
• Broad operating temperature range between -20°C and +50°C for use in demanding environments
• Wide supply voltage range between 12 and 230V AC/DC for versatility
• Compact base diameter of 70mm to take up minimal space
Applications
• Logistics and shipping
• Mechanical engineering
• Machine safety
• Automotive industry
How many modules can you connect to a KombiSIGN 71 stacking tower?
You can connect up to five visual and audible modules in a KombiSIGN 71 stacking tower, making it simple to assemble a complete signalling system.
