Werma 840 Series Terminal Unit 230V ac, AC/DC, IP54

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩64,164.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 133 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩64,164.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
314-7360
Distrelec 제품 번호:
133-66-293
제조사 부품 번호:
840.085.00
제조업체:
Werma
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Werma

Product Type

Terminal Unit

Series

840

Component Type

Termination

Multifunction

No

Current Type

AC/DC

Mount Type

Base

Maximum Supply Voltage

230V ac

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Standards/Approvals

EAC, cULus, CE

Height

30.5mm

IP Rating

IP54

Hazardous Area Certification

No

Base Diameter

70mm

Housing Colour

Black

COO (Country of Origin):
DE

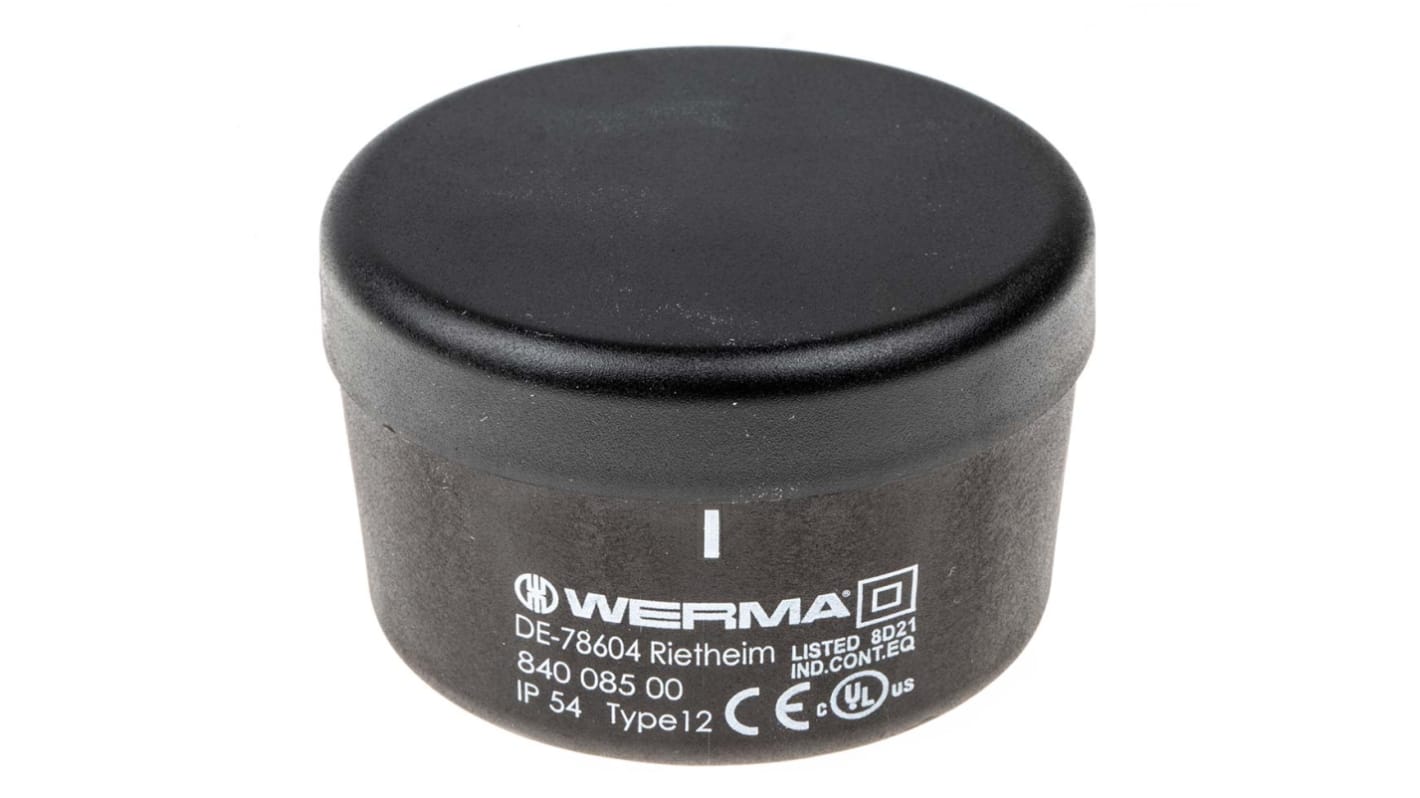

WERMA KombiSIGN 70 Terminal Unit, 230V AC, 24V DC - 840 Series - 840.085.00


This terminal unit from WERMA is a signal tower component that's used to enhance workplace safety. It's compatible with lamps and sounders from the KombiSIGN 70 series and acts as a base for your bespoke signal tower. The unique modular design features bayonet fixings and an integral contact system so installation of light and alarm elements is simple. With a height of 30.5mm and a base diameter of 70mm, this is a compact device.

Features & Benefits


• IP54 (ingress protection) rating protects the unit from dust damage and water sprays

• Versatile terminal unit accommodates up to 5 elements

• PA (polyamide) housing is robust and durable and won't malfunction when used with vibrating equipment

• Base mounting style for versatile use

Applications


• Timing equipment for process control

• Conveyor belts

• Automated assembly equipment

Can I use this terminal unit in places where temperatures are not controlled?


This WERMA terminal unit is robust and will function in varying temperatures ranging from -20°C to +50°C, so you can confidently use it within this spectrum.

Stacking Signal Tower - KombiSIGN 70, 70mm, IP54


The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

Features and Benefits


• Suitable for machine and manual Andon indication

• Modular system allows a completely free combination of optical and audible signal elements

• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system

• Completely safe element changes (contact-voltage proof) without the need for tools

• Protection rating IP54 for use in normal conditions

• Up to 5 elements can be mounted on a terminal base

• Flexible combination of optical and audible elements

• Optical isolation due to O-ring seal stopping illumination of adjacent element

• Operating voltage for the continuous incandescent element is dependant on bulb fitted

• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention

• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness

• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)

• Operating temperature range is -20 to +50 °C

• Polyamide body with polycarbonate lenses, 70 mm diameter

Permanent Multi-colour LED Light Element


• Seven colours in one beacon

• Different colours can be triggered via the pins in the terminal element

• Positive and negative control logic

• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs

• High light intensity

Note

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

Approvals

UL listed, CSA, VDE
