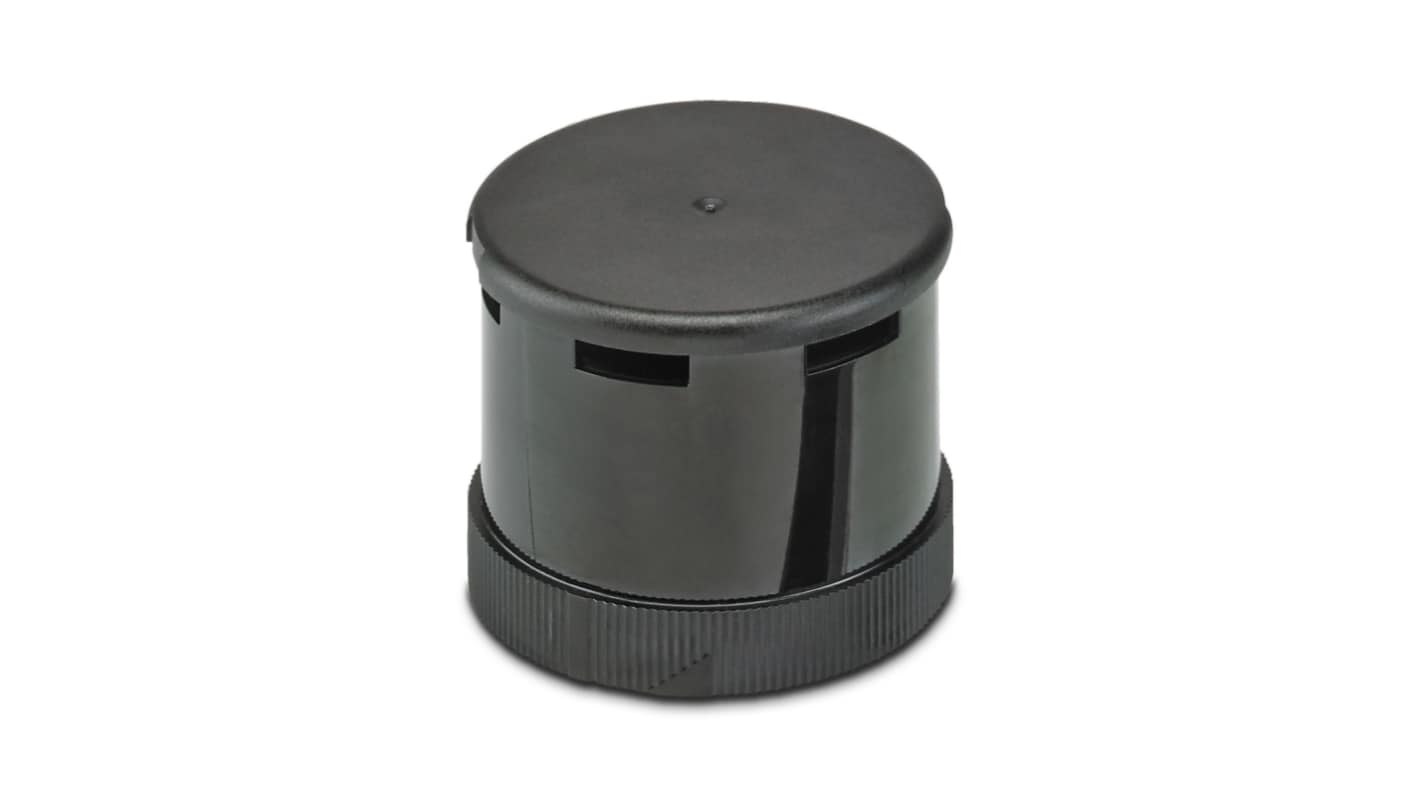

Phoenix Contact PSD Series Siren Unit 24V ac/dc, IP65

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩193,500.00

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 11월 06일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩193,500.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
287-7854
Distrelec 제품 번호:
302-39-105
제조사 부품 번호:
2702997
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Siren Unit

Series

PSD

Component Type

Acoustic Element

Multifunction

Yes

Sounder Type

Siren

Current Consumption

30mA

Mount Type

Tube

Terminal Type

Screw

Maximum Supply Voltage

24V ac/dc

Minimum Operating Temperature

-30°C

Maximum Sound Level

102dB

Maximum Operating Temperature

50°C

Standards/Approvals

EU RoHS, CHINA RoHS, EU REACH

Height

54mm

IP Rating

IP65

Base Diameter

70mm

Hazardous Area Certification

No

Housing Colour

Black

COO (Country of Origin):
DE
The Phoenix Contact audible signal element is a component of a modular signal tower, which can include up to five signal elements. These can consist of either optical or audible elements, with a maximum of four optical and one audible element. The audible element must be positioned at the top. A bayonet locking system is used for both mechanical and electrical connections between elements. Electrical connections can utilize either spring-cage or screw connections. Mounting options include base or tube mounting. It's important to note that PSD-S signal towers (70 mm diameter) are not mechanically compatible with PSD-S 50 signal towers (50 mm diameter).

Multi-tone siren signalling depending on the situation

Eight tone functions can be set via DIP switches

Adjustable volume
