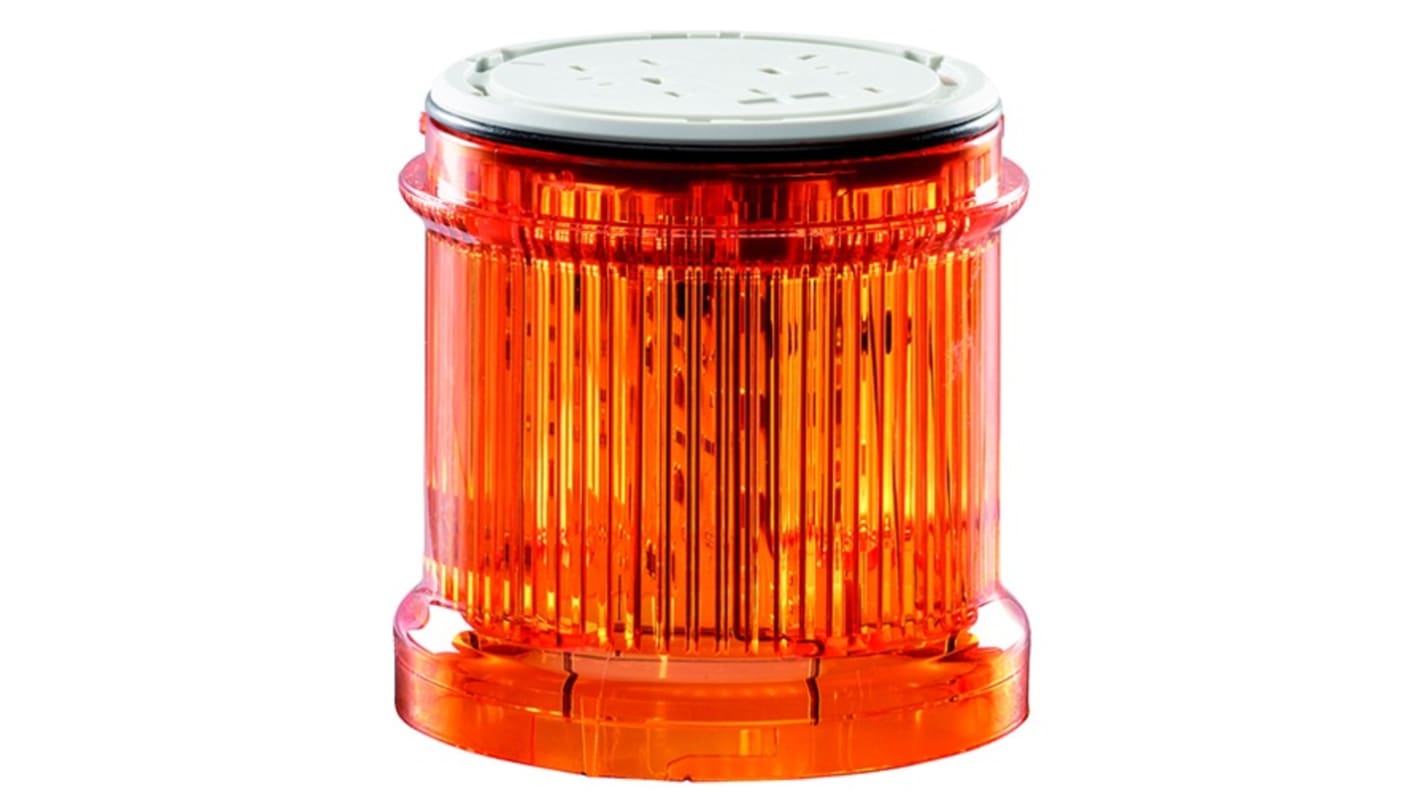

Eaton Orange Series Orange Continuous Effect Light Module, LED Bulb 24V, AC, IP66
- RS 제품 번호:
- 272-0686
- 제조사 부품 번호:
- 171432 SL7-L24-A-HP
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩489,960.00
제조사가 재고 비축중
- 2026년 10월 07일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩489,960.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 272-0686
- 제조사 부품 번호:
- 171432 SL7-L24-A-HP
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Series | Orange | |
| Product Type | Light Module | |
| Component Type | Light Module | |
| Multifunction | No | |
| Current Type | AC | |
| Current Consumption | 0.17, 0.2A | |
| Light Effect | Continuous | |
| Mount Type | Base | |
| Lens Colour | Orange | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, IEC/EN 60947-5-1, IEC/EN 60529, CSA, CE | |
| Height | 73mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Base Diameter | 73mm | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Series Orange | ||
Product Type Light Module | ||
Component Type Light Module | ||
Multifunction No | ||
Current Type AC | ||
Current Consumption 0.17, 0.2A | ||
Light Effect Continuous | ||
Mount Type Base | ||
Lens Colour Orange | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, IEC/EN 60947-5-1, IEC/EN 60529, CSA, CE | ||
Height 73mm | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Base Diameter 73mm | ||
Housing Colour Black | ||
제외
- COO (Country of Origin):
- AT
The Eaton Moeller series SL4 continuous light module is made up of polycarbonate material. It has black enclosure colour and rated impulse withstand voltage is 4000 Vac. That has shock resistance and climatic proof.
Pollution degree 3
360 degree radiation angle
Note
Eaton formerly known as Moeller
