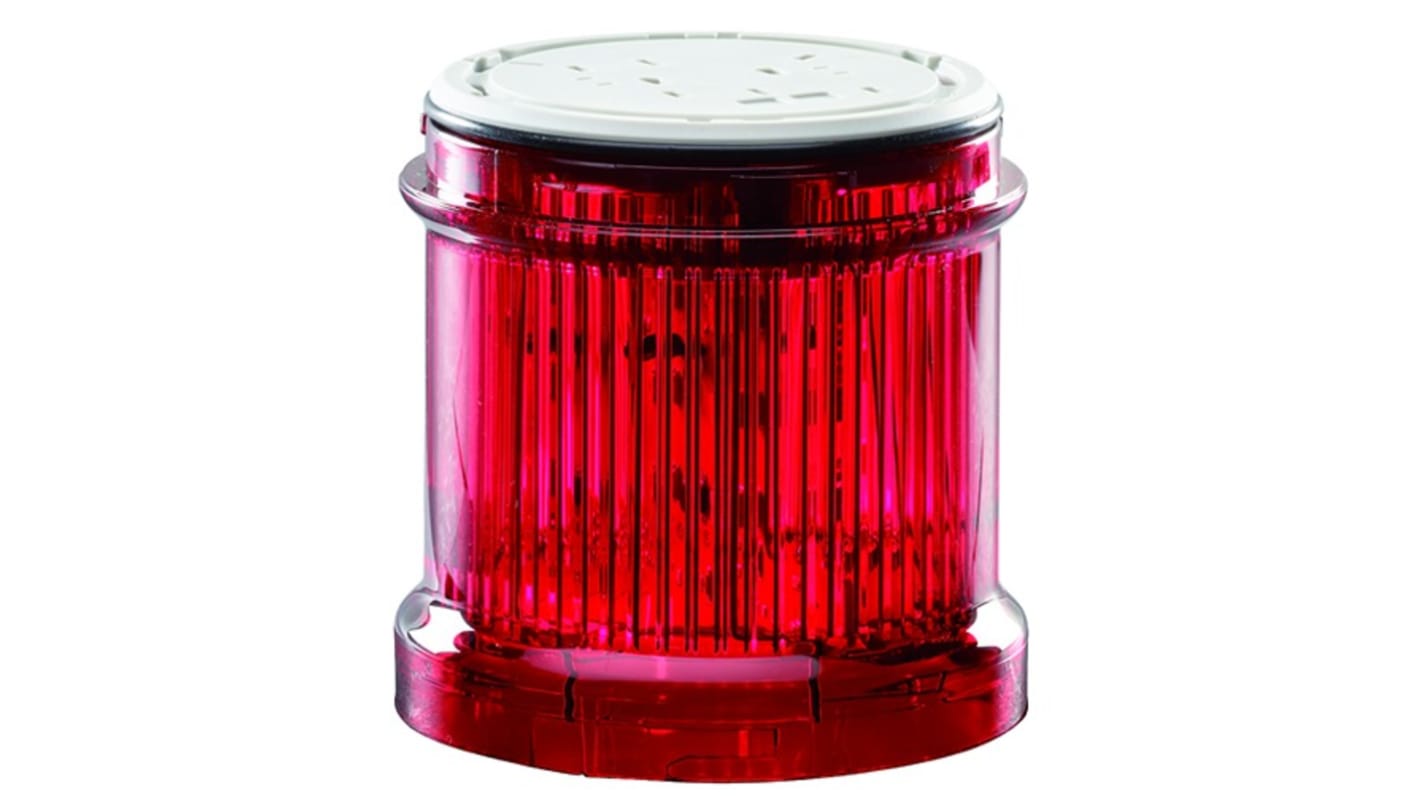

Eaton Red Series Red Multi Strobe Effect Light Module, LED Bulb 24V, AC/DC, IP66
- RS 제품 번호:
- 272-0621
- 제조사 부품 번호:
- 171277 SL7-FL24-R-HPM
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩667,360.00
제조사가 재고 비축중
- 2026년 11월 03일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩667,360.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 272-0621
- 제조사 부품 번호:
- 171277 SL7-FL24-R-HPM
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Series | Red | |
| Product Type | Light Module | |
| Component Type | Multi-Strobe Light Module | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Current Consumption | 0.003A | |
| Light Effect | Multi Strobe | |
| Mount Type | Base | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 73mm | |
| Standards/Approvals | UL 508, IEC/EN 60947-5-1, IEC/EN 60529, CE, UL | |
| Base Diameter | 73mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Series Red | ||
Product Type Light Module | ||
Component Type Multi-Strobe Light Module | ||
Multifunction No | ||
Current Type AC/DC | ||
Current Consumption 0.003A | ||
Light Effect Multi Strobe | ||
Mount Type Base | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Height 73mm | ||
Standards/Approvals UL 508, IEC/EN 60947-5-1, IEC/EN 60529, CE, UL | ||
Base Diameter 73mm | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Housing Colour Black | ||
제외
- COO (Country of Origin):
- AT
The Eaton Moeller series SL4 multi strobe light module that has flash light function and is made up of polycarbonate material. It has black enclosure colour and rated impulse withstand voltage is 4000 Vac.
Pollution degree 3
360 degree radiation angle
Note
Eaton formerly known as Moeller
