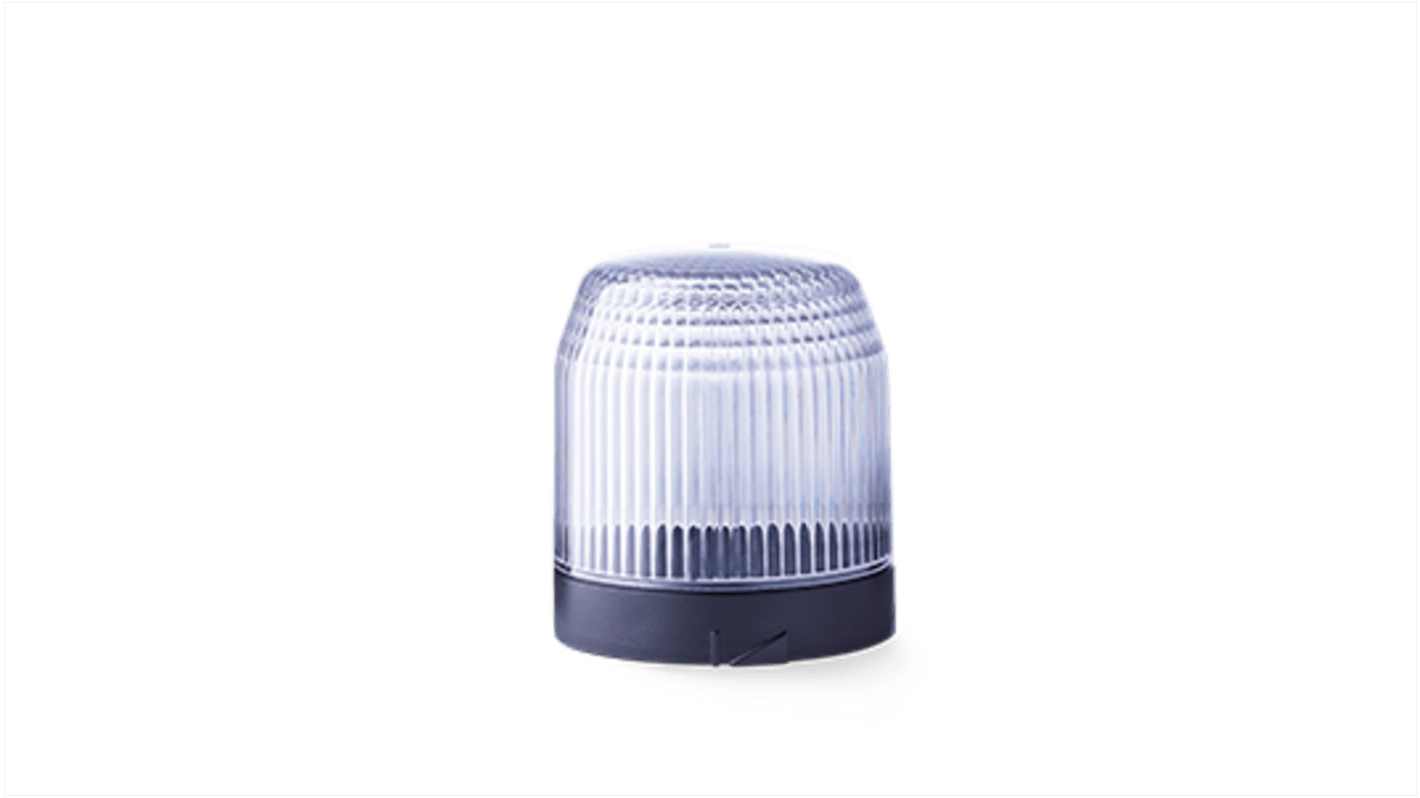

AUER Signal PC7DFB Series Clear Multi Strobe Effect Beacon Module Top, LED Bulb 24V ac/dc, AC/DC, IP67, IP66

RS 제품 번호:: 244-0311
Distrelec 제품 번호:: 302-56-963
제조사 부품 번호:: 910124405
제조업체:: AUER Signal

AUER Signal PC7DFB Series Clear Multi Strobe Effect Beacon Module Top, LED Bulb 24V ac/dc, AC/DC, IP67, IP66

Subtotal (1 unit)*

₩176,065.50

제조사가 재고 비축중

2026년 6월 18일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩176,065.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 244-0311
Distrelec 제품 번호:: 302-56-963
제조사 부품 번호:: 910124405
제조업체:: AUER Signal

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	AUER Signal
	Product Type	Beacon Module Top
	Series	PC7DFB
	Minimum Sound Level	100dB
	Component Type	LED
	Multifunction	Yes
	Current Type	AC/DC
	Sounder Type	Multi-Tone Alarm Sounder
	Mount Type	Tube
	Light Effect	Multi Strobe
	Current Consumption	0.003A
	Lens Colour	Clear
	Lamp Included	Yes
	Bulb Type	LED
	Terminal Type	M12
	Maximum Supply Voltage	24V ac/dc
	Minimum Operating Temperature	-30°C
	Maximum Sound Level	105dB
	Maximum Operating Temperature	70°C
	Standards/Approvals	No
	Hazardous Area Certification	No
	IP Rating	IP67, IP66
	Base Diameter	70mm
	Housing Colour	Black

	모두 선택
	브랜드 AUER Signal
	Product Type Beacon Module Top
	Series PC7DFB
	Minimum Sound Level 100dB
	Component Type LED
	Multifunction Yes
	Current Type AC/DC
	Sounder Type Multi-Tone Alarm Sounder
	Mount Type Tube
	Light Effect Multi Strobe
	Current Consumption 0.003A
	Lens Colour Clear
	Lamp Included Yes
	Bulb Type LED
	Terminal Type M12
	Maximum Supply Voltage 24V ac/dc
	Minimum Operating Temperature -30°C
	Maximum Sound Level 105dB
	Maximum Operating Temperature 70°C
	Standards/Approvals No
	Hazardous Area Certification No
	IP Rating IP67, IP66
	Base Diameter 70mm
	Housing Colour Black

Datasheet - 910124405

The AUER Signal PC7DFB type Top LED multistrobe module is used for industrial and general applications.. It has operating temperature range of -30 °C to +60 °C and nominal voltage of 24 V AC/DC. It comes with red lens colour and high protection class IP67, IP69 and impact resistance IK08.

Up to 6 times brighter than comparable signal towers

7 positions provide maximum flexibility

Two visual appearances available with the new diffuser

Even brighter top light module with hemispherical signalling effect

New LED light modules with multi colour, rotating light, multi function and steady light functions

AUER Signal PC7DFB Series Clear Multi Strobe Effect Beacon Module Top, LED Bulb 24V ac/dc, AC/DC, IP67, IP66
