Patlite LR6-IL Series White Flashing, Steady Effect IO-Link Mounting Base, LED Bulb 24V dc, DC, IP65

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩249,676.05

Add to Basket
수량 선택 또는 입력
재고있음
  • 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩249,676.05

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-8580
Distrelec 제품 번호:
303-15-323
제조사 부품 번호:
LR6-ILWCNW
제조업체:
Patlite
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Patlite

Product Type

IO-Link Mounting Base

Series

LR6-IL

Minimum Sound Level

85dB

Component Type

Direct Mount Body Unit

Multifunction

Yes

Current Type

DC

Sounder Type

Buzzer

Light Effect

Flashing, Steady

Current Consumption

250mA

Mount Type

Direct

Lens Colour

White

Lamp Included

Yes

Bulb Type

LED

Terminal Type

Plug-In

Maximum Supply Voltage

24V dc

Minimum Operating Temperature

-30°C

Maximum Sound Level

88dB

Maximum Operating Temperature

50°C

Standards/Approvals

CSA, UL

Height

151mm

Hazardous Area Certification

No

Base Diameter

60mm

IP Rating

IP65

Housing Colour

White

COO (Country of Origin):
JP

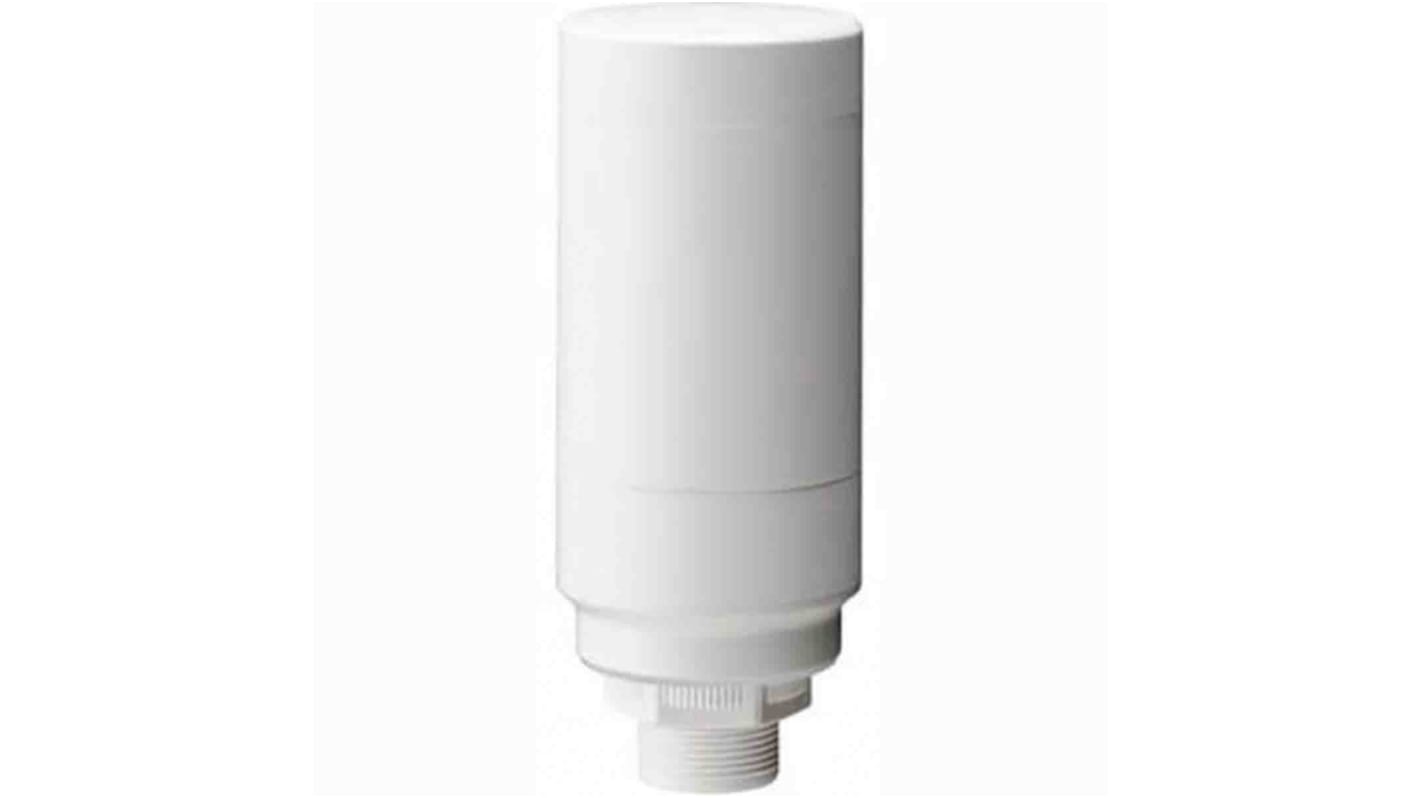

The Patlite LR6-IL IO-Link signal tower visualizes sensor information. Corresponding to the worldwide-standardized IO-Link technology, this signal tower enables you to communicate with sensors and actuators. The M12 connector makes installing and replacing easy. The visual information is customizable by choosing up to 5 LEDs in coloured LED units or one multicolour unit. With a protection rating of IP65, the LR6-IL is suitable for use in areas with splash water and dust. In addition to the visual information, a buzzer with 84 dB and 4 alarm sounds supports you in triggering the correct response in case of a detected abnormality.

Module in White

Diameter: 60 mm

Mounting: Direct Mount with M30 Nut

M12 Connector

Simple Twist & Lock system to install the LED modules and Buzzer module on the body unit
