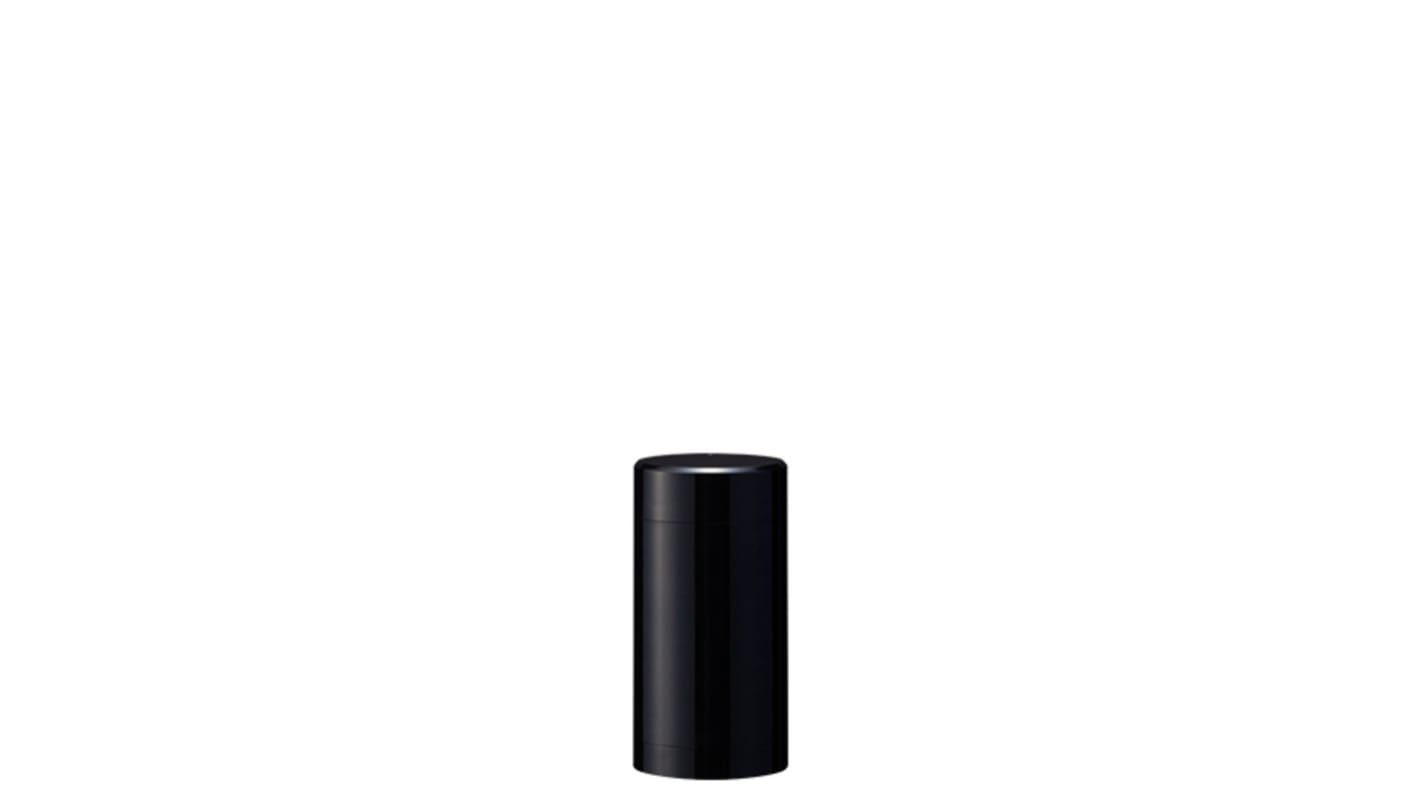

Patlite LR5 Series Black Steady Effect Body Unit, LED Bulb 24V dc, AC, IP65
- RS 제품 번호:
- 169-8908
- Distrelec 제품 번호:
- 303-15-288
- 제조사 부품 번호:
- LR5-02KTNK
- 제조업체:
- Patlite
Subtotal (1 unit)*
₩71,214.00
재고있음
- 추가로 2026년 6월 10일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩71,214.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 169-8908
- Distrelec 제품 번호:
- 303-15-288
- 제조사 부품 번호:
- LR5-02KTNK
- 제조업체:
- Patlite
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Patlite | |
| Series | LR5 | |
| Product Type | Body Unit | |
| Component Type | Light Module | |
| Multifunction | Yes | |
| Current Type | AC | |
| Mount Type | Pole | |
| Light Effect | Steady | |
| Current Consumption | 45mA | |
| Sounder Type | Buzzer | |
| Lens Colour | Black | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | Cable | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Sound Level | 85dB | |
| Maximum Operating Temperature | 50°C | |
| Height | 99mm | |
| Standards/Approvals | CSA | |
| Base Diameter | 50mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Housing Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 Patlite | ||
Series LR5 | ||
Product Type Body Unit | ||
Component Type Light Module | ||
Multifunction Yes | ||
Current Type AC | ||
Mount Type Pole | ||
Light Effect Steady | ||
Current Consumption 45mA | ||
Sounder Type Buzzer | ||
Lens Colour Black | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type Cable | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Sound Level 85dB | ||
Maximum Operating Temperature 50°C | ||
Height 99mm | ||
Standards/Approvals CSA | ||
Base Diameter 50mm | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Housing Colour Black | ||
- COO (Country of Origin):
- ID
Patlite Single Tower Light
The Patlite single tower light is LR LED preconfigured beacon single tower light featuring a modular design. It has a supply voltage of 24VDC. The tower light is base mount. A sleek, smooth form factor and enhanced body construction for high performance in harsh environments. It is available in a black body colour.
Features and Benefits
• Knockouts mounts/terminal
• Modular "twist and lock" system to easily customize and reconfigure LED and sound modules
• No flashing/buzzer
• Redesigned lens and improved module construction delivering bright, even light for visibility from further distances (2000mcd output)
• Reengineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omnidirectional sound
• Service temperature ranges between -20°C and 50°C
• Φ50 size
Certifications
• CSA-C22.2 No.14
• EMC Directive (EN61000-6-4, EN61000-6-2)
• FCC Part 15 Subpart B Class A
• IP65
• KC (KN 61000-6-4, KN 61000-6-2)
• Low-voltage Directive (IEC /EN60947-5-1, EN62471)
• UL 508
