Werma KombiSIGN 40 Series Blue Steady, Flashing Effect Beacon Tower, LED Bulb 24V ac/dc, AC/DC, IP66

RS 제품 번호:: 123-2904
Distrelec 제품 번호:: 300-58-426
제조사 부품 번호:: 634.510.75
제조업체:: Werma

Werma KombiSIGN 40 Series Blue Steady, Flashing Effect Beacon Tower, LED Bulb 24V ac/dc, AC/DC, IP66

Subtotal (1 unit)*

₩55,220.00

26 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩55,220.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 123-2904
Distrelec 제품 번호:: 300-58-426
제조사 부품 번호:: 634.510.75
제조업체:: Werma

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Werma
	Product Type	Beacon Tower
	Series	KombiSIGN 40
	Minimum Sound Level	89dB
	Multifunction	Yes
	Current Type	AC/DC
	Mount Type	Base
	Light Effect	Steady, Flashing
	Current Consumption	30mA
	Lens Colour	Blue
	Lamp Included	Yes
	Bulb Type	LED
	Maximum Supply Voltage	24V ac/dc
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	60°C
	Maximum Sound Level	95dB
	Height	59mm
	Standards/Approvals	CE Certified
	Base Diameter	40mm
	Hazardous Area Certification	No
	IP Rating	IP66
	Housing Colour	Blue

	모두 선택
	브랜드 Werma
	Product Type Beacon Tower
	Series KombiSIGN 40
	Minimum Sound Level 89dB
	Multifunction Yes
	Current Type AC/DC
	Mount Type Base
	Light Effect Steady, Flashing
	Current Consumption 30mA
	Lens Colour Blue
	Lamp Included Yes
	Bulb Type LED
	Maximum Supply Voltage 24V ac/dc
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 60°C
	Maximum Sound Level 95dB
	Height 59mm
	Standards/Approvals CE Certified
	Base Diameter 40mm
	Hazardous Area Certification No
	IP Rating IP66
	Housing Colour Blue

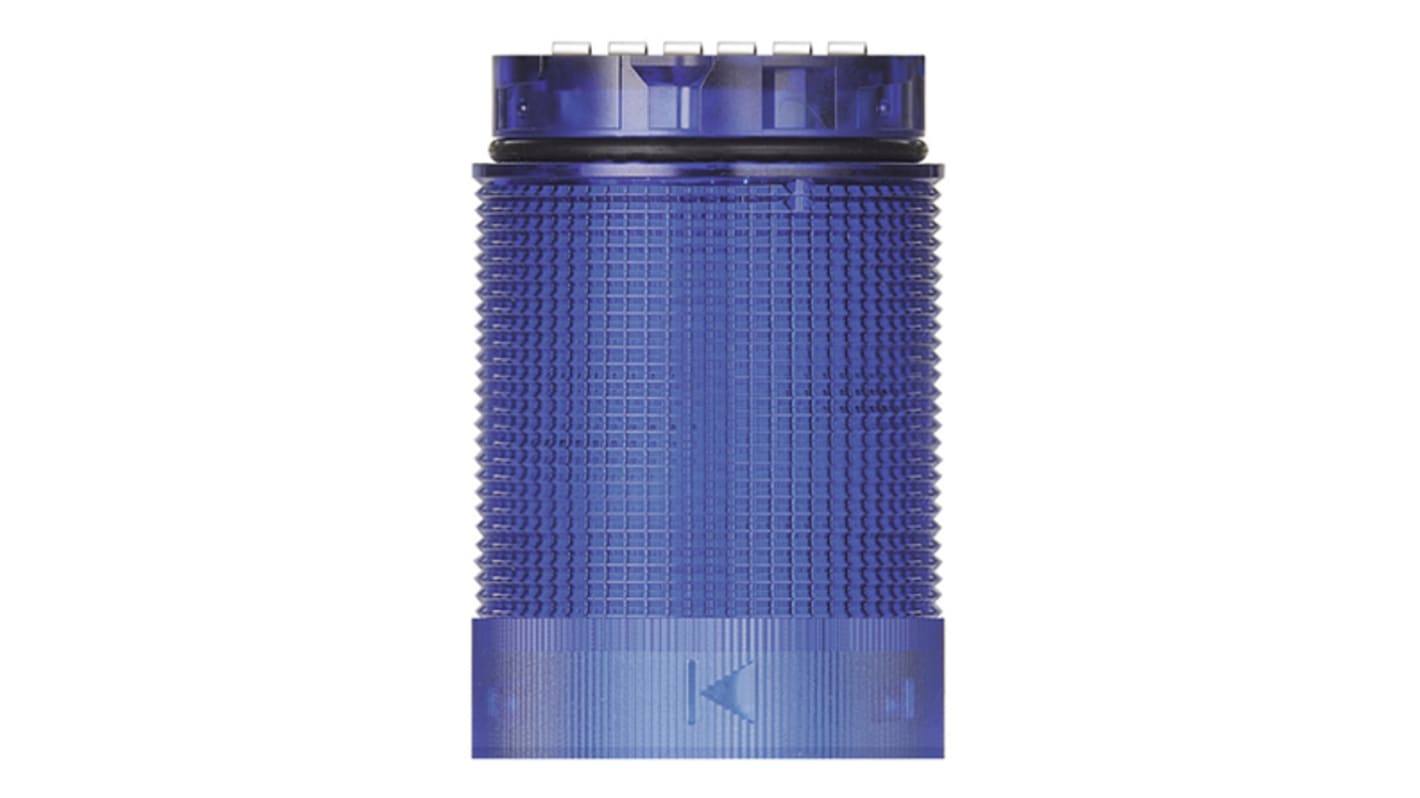

WERMA Beacon, 59mm Height, Bayonet Connection System - KombiSIGN 40 Series - 634.510.75

Say goodbye to blind spots in your work environment with the help of this beacon from WERMA. Its two-in-one functionality means it combines a permanent and flashing lighting effect in a single LED bulb for versatile signalling. Thanks to its bayonet connection system, you can hook up this beacon in a flash without the need for special tools. For a customised setup, you can stack this beacon with others in the KombiSIGN 40 series to create a signal tower.

Features & Benefits

• Supply voltage of 24V AC/DC makes it compatible with many electrical systems

• CE certification means it meets EU safety, health and environmental protection requirements

• IP66 rating means it's protected against dust and high-pressure water jets

Applications

• Construction sites

• Automated assembly lines

• Food and beverage production

Can I use this beacon in extreme temperatures?

Yes, it performs reliably in demanding environments, thanks to a broad operating temperature range between -30°C and +60°C.

Stacking Signal Tower - KombiSIGN 40, 40mm

The WERMA KombiSIGN 40 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation.

Features and Benefits

• Suitable for machine and manual Andon indication

• Modular system allows a completely free combination of optical and audible signal elements

• Mechanical and electrical connection of the elements in seconds using a bayonet connection system

• Completely safe element changes (contact-voltage proof) without the need for tools

• Protection rating IP66

• Up to 5 elements can be mounted on a terminal base

• Flexible combination of optical and audible elements

• Optical isolation due to O-ring seal stopping illumination of adjacent element

• Operating temperature range is -30 to +60 °C

• Polycarbonate 40 mm diameter
