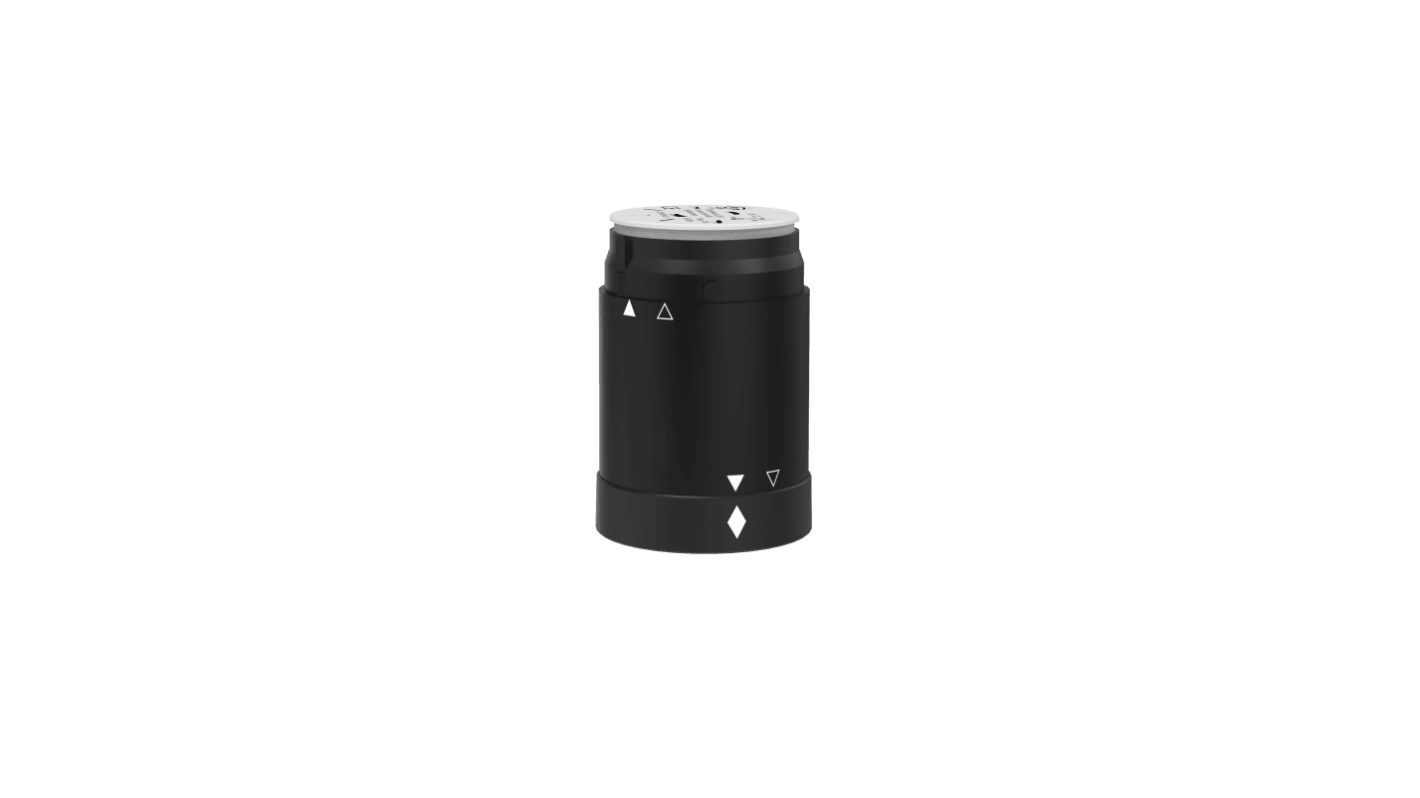

Pfannenberg 28250148300 Series Clear Continuous Effect Signal Tower, LED Bulb 24V dc, AC/DC, IP54

Subtotal (1 unit)*

₩250,828.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩250,828.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
497-556
제조사 부품 번호:
28250148300
제조업체:
Pfannenberg
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pfannenberg

Product Type

Signal Tower

Series

28250148300

Component Type

LED

Multifunction

Yes

Current Type

AC/DC

Light Effect

Continuous

Current Consumption

250mA

Lens Colour

Clear

Bulb Type

LED

Terminal Type

Screw

Maximum Supply Voltage

24V dc

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

55°C

Height

63mm

Standards/Approvals

RoHS

Hazardous Area Certification

NO

IP Rating

IP54

Base Diameter

54mm

The Pfannenberg Module Fieldbus is a versatile component designed for seamless integration into AS-Interface bus systems for 31 Slave/Master. It features a modular design, allowing up to four stages for displaying machine statuses and issuing warning signals. With its robust housing, it is suitable for both indoor and outdoor applications, ensuring reliable performance in various environments. They monitored module for greater safety, the light source has two separate LED strands. If one strand fails, the alarm contact is activated and the second strand continues to light. The mechanical and electronics are decoupled which results in a more stable construction that is less sensitive to vibrations.

IP65 Protection

ABS housing material

Graphite black housing

Dimension are diameter 54 x 63mm

Flexible building kit system guarantees easy handling
