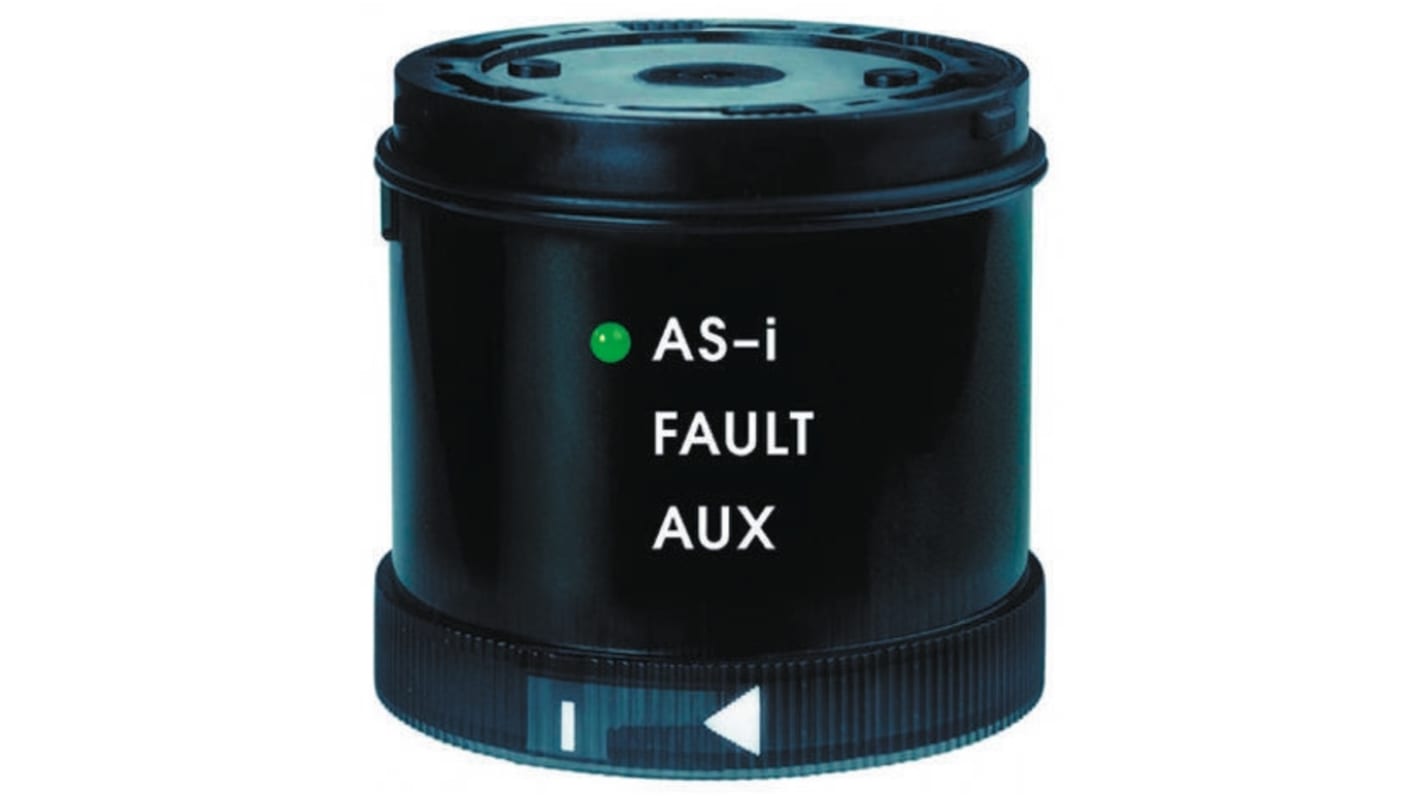

Werma KombiSIGN 71 Series AS-I Element 31V, IP65

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Signal Tower Components 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩256,560.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 13 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 5₩256,560.00
6 +₩246,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
481-963
제조사 부품 번호:
646.830.55
제조업체:
Werma
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Werma

Product Type

AS-I Element

Series

KombiSIGN 71

Component Type

AS-I Element Standard

Multifunction

No

Mount Type

Base

Current Consumption

235mA

Lamp Included

No

Maximum Supply Voltage

31V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Height

65.5mm

Standards/Approvals

EAC, cULus, CE

IP Rating

IP65

Hazardous Area Certification

No

Base Diameter

70mm

Housing Colour

Black

COO (Country of Origin):
DE

WERMA AS-I Element, Standard Slave Type, 31 Modules - KombiSIGN 71 Series - 646.830.55


Exchange information between your industrial signalling system and control unit using this AS-I element from WERMA. It's designed for use with signal towers from the KombiSIGN 71 range and links an actuator to the beacons and sirens through a single wire. This saves you the hassle of handling multiple wire connections. It addresses up to 31 modules for robust signal transmissions.

Features & Benefits


• Service life of 50,000h for durable performance

• IP65 rating shows it's protected against dust and low-pressure water jets

• LED indicator for convenient status monitoring

Applications


• Aviation engineering

• Emergency services

• Warehouses

• Transportation industry

Where should I mount this element?


For proper assembly, mount this element directly on top of the terminal.

How many signal elements can I use this device with?


Thanks to its multi-address function, this device can trigger up to four elements for versatility.
