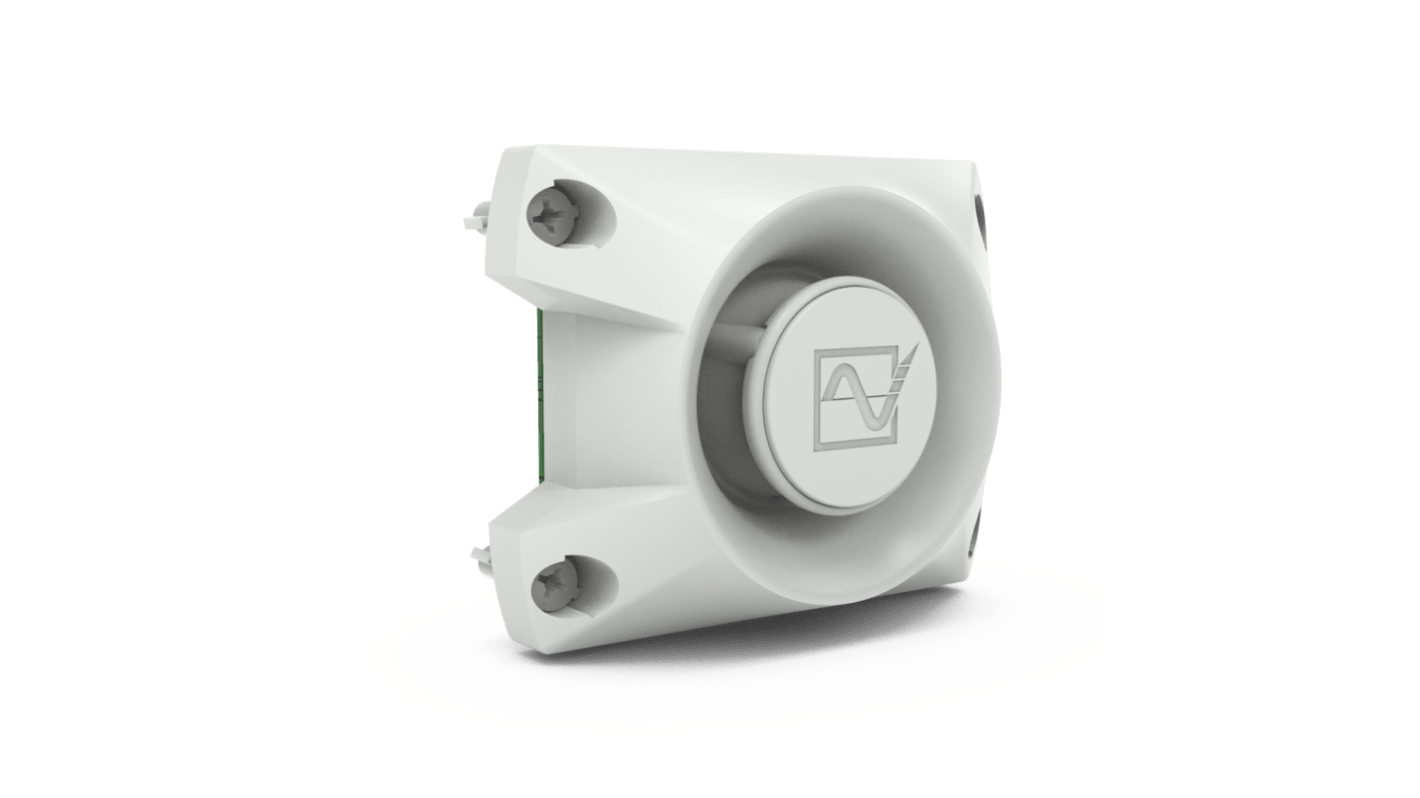

Pfannenberg PY L Series Grey Flashing, Continuous, Blinking Effect Sounder, LED Bulb 230V, AC, IP66

RS 제품 번호:: 460-977
Distrelec 제품 번호:: 303-69-870
제조사 부품 번호:: 21517100055
제조업체:: Pfannenberg

Pfannenberg PY L Series Grey Flashing, Continuous, Blinking Effect Sounder, LED Bulb 230V, AC, IP66

Subtotal (1 unit)*

₩268,500.00

제조사가 재고 비축중

2026년 10월 05일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩268,500.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 460-977
Distrelec 제품 번호:: 303-69-870
제조사 부품 번호:: 21517100055
제조업체:: Pfannenberg

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pfannenberg
	Series	PY L
	Product Type	Sounder
	Component Type	Compact LED Traffic Light
	Current Type	AC
	Current Consumption	36mA
	Light Effect	Flashing, Continuous, Blinking
	Lens Colour	Grey
	Bulb Type	LED
	Maximum Supply Voltage	230V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	55°C
	Height	345mm
	Standards/Approvals	RoHS, IEC 73, EN 60825-1, DIN EN 842, DIN EN 54, DIN 54113-2
	IP Rating	IP66
	Hazardous Area Certification	No
	Base Diameter	109.5mm

	모두 선택
	브랜드 Pfannenberg
	Series PY L
	Product Type Sounder
	Component Type Compact LED Traffic Light
	Current Type AC
	Current Consumption 36mA
	Light Effect Flashing, Continuous, Blinking
	Lens Colour Grey
	Bulb Type LED
	Maximum Supply Voltage 230V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 55°C
	Height 345mm
	Standards/Approvals RoHS, IEC 73, EN 60825-1, DIN EN 842, DIN EN 54, DIN 54113-2
	IP Rating IP66
	Hazardous Area Certification No
	Base Diameter 109.5mm

Datasheet - 21517100055

COO (Country of Origin):: DE

The Pfannenberg Compact LED traffic lights can be selected as pre-assembled units or customized based on your specific needs. With selectable combinations, they offer flexibility and ease of configuration, allowing you to design the traffic light according to your preferences.

Traffic light sounder module with 105 dB(A) for use in combination with a basic housing to be ordered separately

Multi voltage power supply unit 195253 V AC

Housing and lens are made of impact-resistant polycarbonate (IK 08)

Protection class: IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)

Operating temperature: -40C+55C

10 years warranty

Pfannenberg PY L Series Grey Flashing, Continuous, Blinking Effect Sounder, LED Bulb 230V, AC, IP66
