Pfannenberg BR50 Series Red Flashing Effect Signal Tower, LED Bulb 230V ac, AC, IP54

RS 제품 번호:: 460-293
제조사 부품 번호:: 28250071050
제조업체:: Pfannenberg

Pfannenberg BR50 Series Red Flashing Effect Signal Tower, LED Bulb 230V ac, AC, IP54

Subtotal (1 unit)*

₩583,908.00

제조사가 재고 비축중

2026년 6월 05일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩583,908.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 460-293
제조사 부품 번호:: 28250071050
제조업체:: Pfannenberg

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pfannenberg
	Series	BR50
	Product Type	Signal Tower
	Component Type	Light Module
	Multifunction	No
	Current Type	AC
	Light Effect	Flashing
	Current Consumption	10.5mA
	Lens Colour	Red
	Lamp Included	Yes
	Terminal Type	Screw
	Bulb Type	LED
	Maximum Supply Voltage	230V ac
	Minimum Operating Temperature	-25°C
	Maximum Sound Level	87dB
	Maximum Operating Temperature	55°C
	Height	63mm
	Standards/Approvals	RoHS
	IP Rating	IP54
	Hazardous Area Certification	No
	Base Diameter	54mm

	모두 선택
	브랜드 Pfannenberg
	Series BR50
	Product Type Signal Tower
	Component Type Light Module
	Multifunction No
	Current Type AC
	Light Effect Flashing
	Current Consumption 10.5mA
	Lens Colour Red
	Lamp Included Yes
	Terminal Type Screw
	Bulb Type LED
	Maximum Supply Voltage 230V ac
	Minimum Operating Temperature -25°C
	Maximum Sound Level 87dB
	Maximum Operating Temperature 55°C
	Height 63mm
	Standards/Approvals RoHS
	IP Rating IP54
	Hazardous Area Certification No
	Base Diameter 54mm

Datasheet - 28250071050

COO (Country of Origin):: CN

The Pfannenberg Signal tower is ultra-bright and super slim, offering excellent visibility with a slim design. The signaling mode is determined by LED, providing flexible design options to suit various applications.

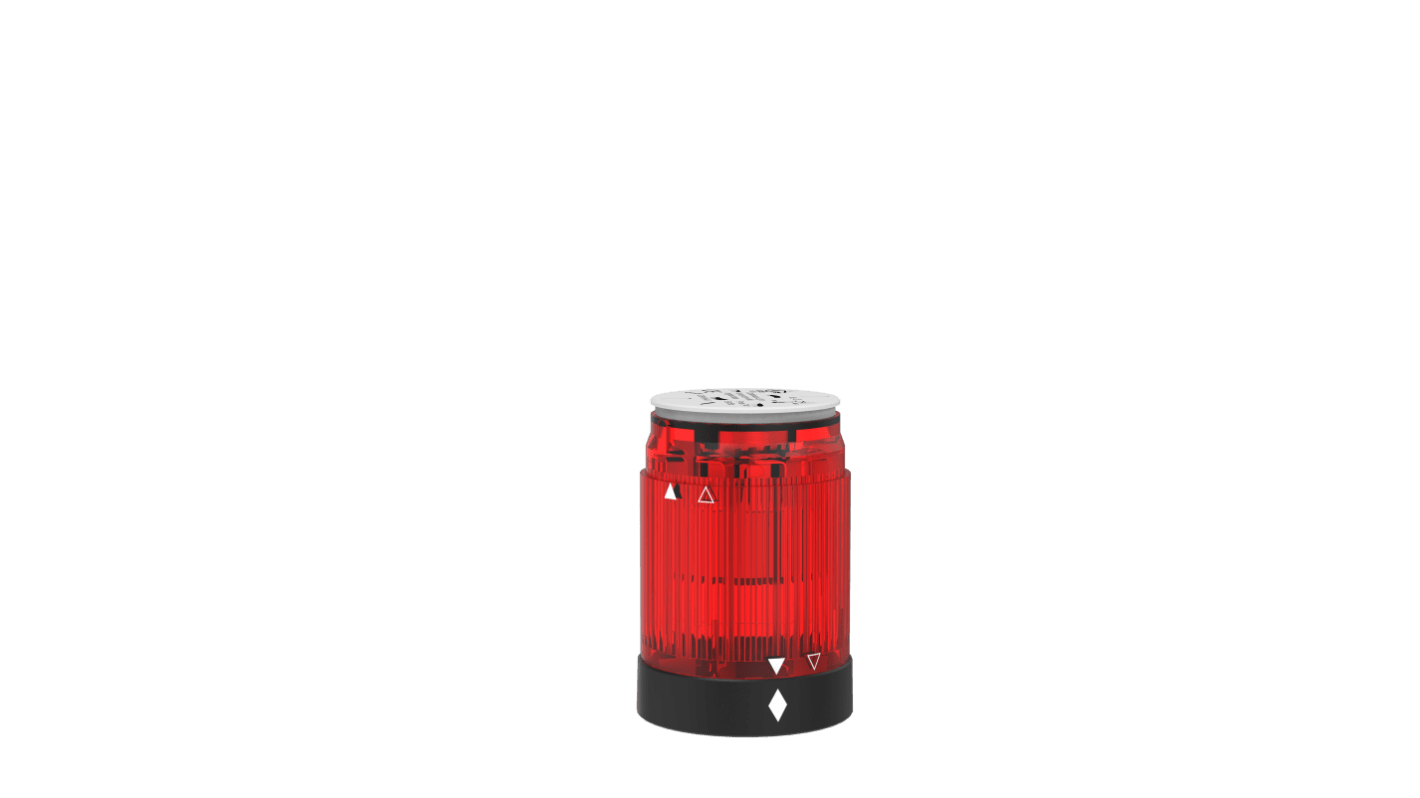

BR 50 signal tower red flashing light module

Up to 5 modules with 6 lens colours

Can be used everywhere where machine statuses need to be displayed and warning signals given

Modular design with sturdy housing for all indoor and outdoor applications in tough conditions

Types of modules include continuous lights with LED, blinking light (1.5 Hz), flashing light, sounder 85 dB (A)

Flexible building kit system guarantees easy handling

Mechanical and electronics are decoupled, this results in a more stable construction that is less sensitive to vibrations

Many different variations, can be fixed by means of tubular stand, tube or direct mounting

High system of protection IP 54 (optionally IP 65)

Dimensions: diameter 54 x 63mm per light module

Pfannenberg BR50 Series Red Flashing Effect Signal Tower, LED Bulb 230V ac, AC, IP54
