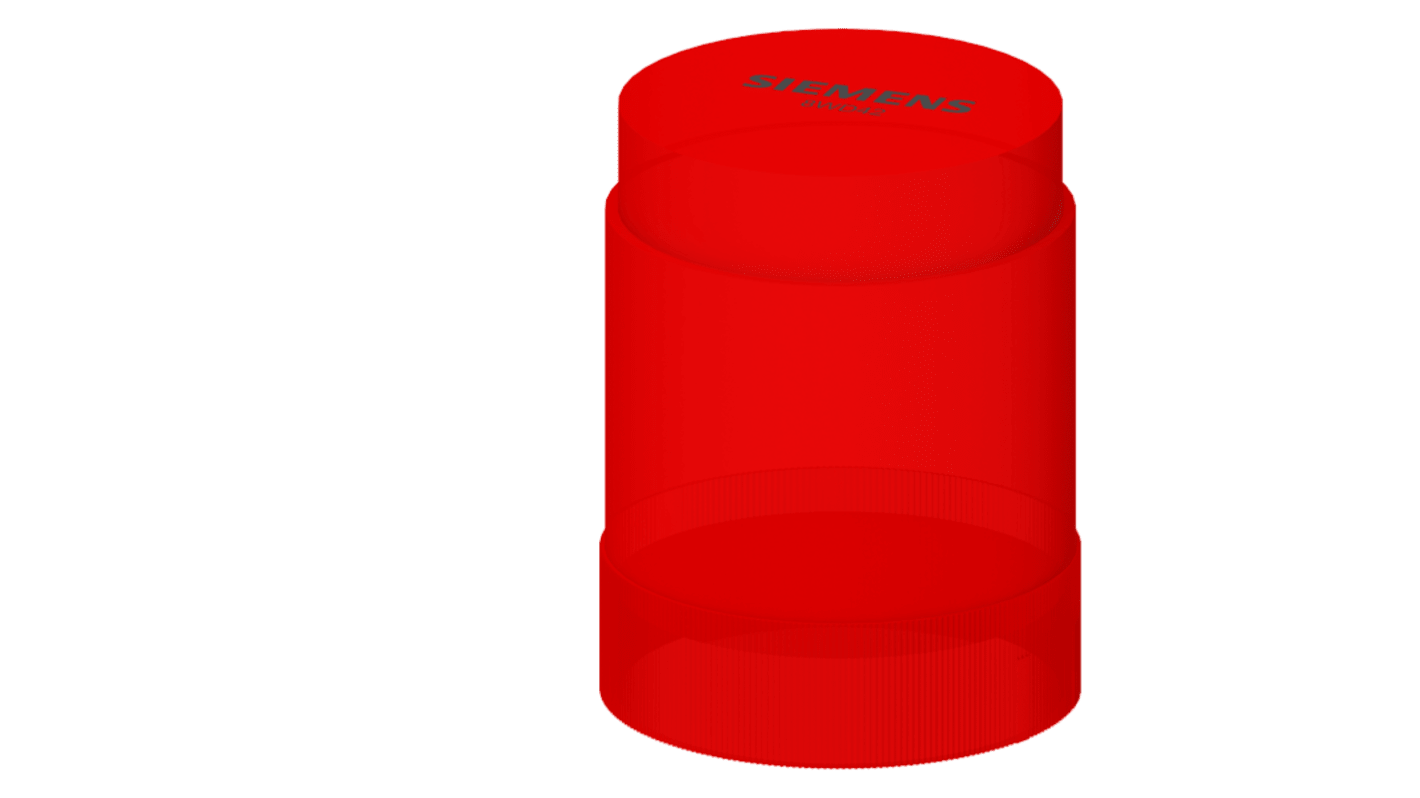

Siemens 8WD42 Series Red Continuous Effect Light Module, LED Bulb 230V ac, AC, IP54
- RS 제품 번호:
- 161-254
- 제조사 부품 번호:
- 8WD4250-5AB
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩251,960.00
일시적 품절
- 2026년 9월 09일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩251,960.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 161-254
- 제조사 부품 번호:
- 8WD4250-5AB
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Light Module | |
| Series | 8WD42 | |
| Multifunction | No | |
| Current Type | AC | |
| Mount Type | Bayonet Mount | |
| Current Consumption | 35mA | |
| Light Effect | Continuous | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 230V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 67mm | |
| Standards/Approvals | UKCA, RCM, EAC, cULus, CE | |
| Hazardous Area Certification | No | |
| IP Rating | IP54 | |
| Base Diameter | 50mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Light Module | ||
Series 8WD42 | ||
Multifunction No | ||
Current Type AC | ||
Mount Type Bayonet Mount | ||
Current Consumption 35mA | ||
Light Effect Continuous | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 230V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Height 67mm | ||
Standards/Approvals UKCA, RCM, EAC, cULus, CE | ||
Hazardous Area Certification No | ||
IP Rating IP54 | ||
Base Diameter 50mm | ||
- COO (Country of Origin):
- DE
The Siemens Continuous Light Element features integrated LED technology and operates at 230 V AC with a maximum consumed current of 35 mA. Its compact dimensions include a height of 67 mm and an outer diameter of 50 mm, making it suitable for various installations. The service life of the LED is rated up to 100,000 hours, ensuring long term functionality in diverse conditions.
Bayonet fastening for secure installation
Durable PC material for environmental protection
IP54 protection against dust and water
Light intensity of 0.64 to 1.51 cd
