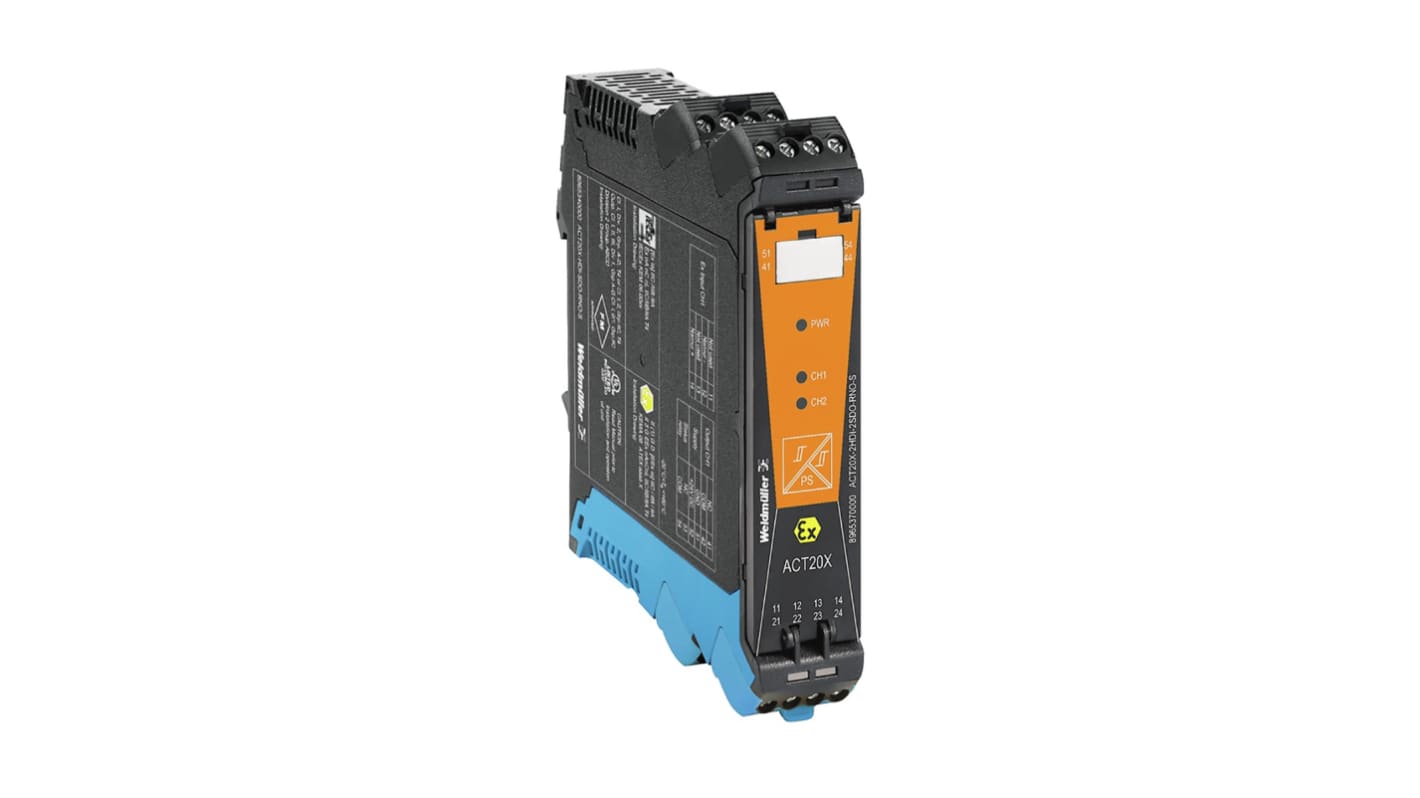

Weidmüller ACT20X Series Signal Conditioner, NPN, PNP Input, Relay Output, 19.2 → 31.2V Supply, IECEx
- RS 제품 번호:
- 902-8029
- 제조사 부품 번호:
- 8965410000
- 제조업체:
- Weidmüller
일시 품절-다음 입고 날짜는 09/09/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩319,123.749
수량 | 한팩당 |
1 + | ₩319,123.749 |
대체품들
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 902-8029
- 제조사 부품 번호:
- 8965410000
- 제조업체:
- Weidmüller
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DK
제품 세부 사항
ACT20X SDI-HDO/2SDI-2HDO-S Signal Isolating Converter
The ACT20X SDI-HDO/2SDI-2HDO-S valve control isolating converters are controlled from the safe zone on the input side by the switching signals (NPN, PNP) and provide digital outputs to switch actuators (solenoids, alarms) in Ex zone 0.
DIN Rail mounting
22.5 mm width
1 or 2 channel options
Alarm contacts in the event of a malfunction
Screw connection, removable terminal block
IP20 protection
22.5 mm width
1 or 2 channel options
Alarm contacts in the event of a malfunction
Screw connection, removable terminal block
IP20 protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Module Type | Signal Isolator |
Input Signal Type | NPN, PNP |
Output Signal Type | Relay |
Input Range | ≤28V dc |
Supply Voltage | 19.2 → 31.2V |
Hazardous Area Certification | IECEx |
Mounting Type | DIN Rail Mount |
Operating Temperature Range | -20 → +60°C |
Series | ACT20X |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Termination | Screw |
