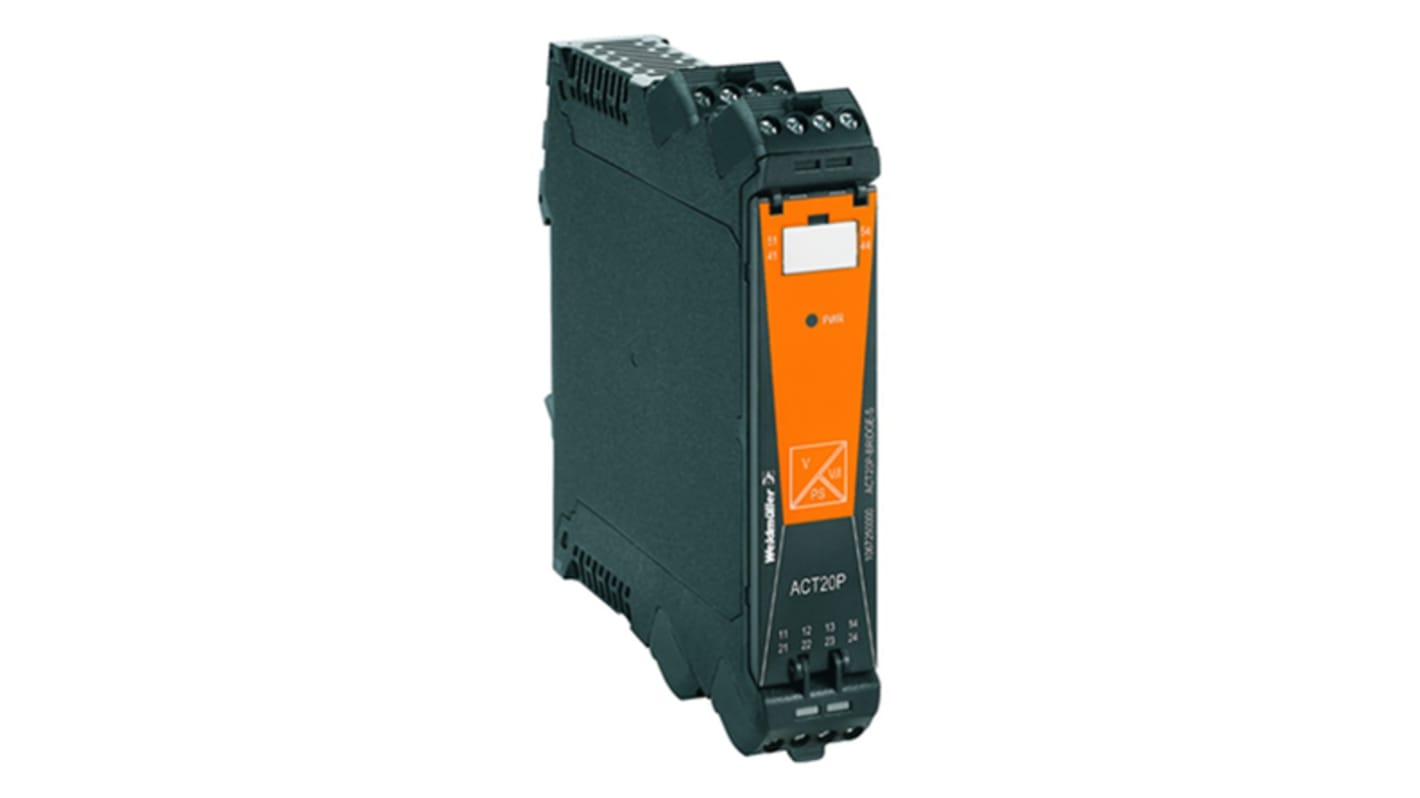

Weidmüller ACT20P Series Signal Conditioner, Current Input, Current Output, 16.8V, 31.2 V Supply
- RS 제품 번호:
- 892-8997
- Distrelec 제품 번호:
- 301-66-913
- 제조사 부품 번호:
- 1510540000
- 제조업체:
- Weidmüller
Subtotal (1 unit)*
₩481,640.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩481,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 892-8997
- Distrelec 제품 번호:
- 301-66-913
- 제조사 부품 번호:
- 1510540000
- 제조업체:
- Weidmüller
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Weidmüller | |
| Product Type | Signal Conditioner | |
| Input Signal Type | Current | |
| Output Signal Type | Current | |
| Input Range | 15 → 700 Hz | |
| Output Range | 0 → 20 mA | |
| Supply Voltage | 16.8V, 31.2V | |
| Hazardous Area Certification | No | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | RoHS Compliant | |
| Series | ACT20P | |
| 모두 선택 | ||
|---|---|---|
브랜드 Weidmüller | ||
Product Type Signal Conditioner | ||
Input Signal Type Current | ||
Output Signal Type Current | ||
Input Range 15 → 700 Hz | ||
Output Range 0 → 20 mA | ||
Supply Voltage 16.8V, 31.2V | ||
Hazardous Area Certification No | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals RoHS Compliant | ||
Series ACT20P | ||
- COO (Country of Origin):
- SK
Weidmuller Signal Conditioner, Analogue Output Type, Screw Connection - ACT20P Series - 1510540000
To make signals readable to conventional instruments, wire up this signal conditioner from Weidmuller. It converts inputs from a sensing device into adjustable current outputs between -20 and 20mA and voltage outputs between -10 and 10V. You can use it with AC or DC input types to cover all your bases. Harsh work areas are no match for this hardy product, as it performs reliably in temperatures ranging from -25°C to +60°C.
Features & Benefits
• Light weight of 158g to place minimal strain on your equipment
• Supply voltage range between 16.8 and 31.2V for use in low-power systems
• Fits into tight spaces, thanks to its compact dimensions of 119.2 (H) x 22.5 (W) x 113.6mm (D)
Applications
• Machine control networks
• Digital data analysis
• Oil and gas refineries
How reliable is this product?
Its MTBF of 158 years means you can count on this product for the long haul.
What conductor sizes is this unit compatible with?
For flexibility, you can wire this product with conductors ranging in size between 26 and 12AWG.
