Phoenix Contact MINI MCR Series Signal Conditioner, Current/Voltage Input, Frequency Output, 20V dc, 30 V dc Supply, C,

모든 Signal Conditioners 열람하기

Subtotal (1 unit)*

₩479,780.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 17 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩479,780.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
616-8950
Distrelec 제품 번호:
176-89-718
제조사 부품 번호:
2864082
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Signal Conditioner

Input Signal Type

Current/Voltage

Output Signal Type

Frequency

Input Range

0 → 10 V, 0 → 20 mA

Output Range

PWM: 5 → 95 %, 0 Hz → 10 kHz

Supply Voltage

20V dc, 30V dc

Hazardous Area Certification

C, B, Groups A, Div 2, Class I, D T4

Mount Type

DIN Rail

Terminal Type

Screw

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

IP Rating

IP20

Signal Conditioner Type

Analogue Frequency Transducer

Standards/Approvals

cULus Recognised, EN 61000-4-2, DNV GL TAA000020N, EN 61000-6-2, cUL, DNV, EN 61000-4-5, EN 61000-4-6, UKCA, cUL Listed, EN 61000-4-3, CE, EN 61000-6-4, EN 61000-4-4, UL 508 Recognised, cULus Listed, BV, UL Listed

Series

MINI MCR

Number of Channels

1

COO (Country of Origin):
DE

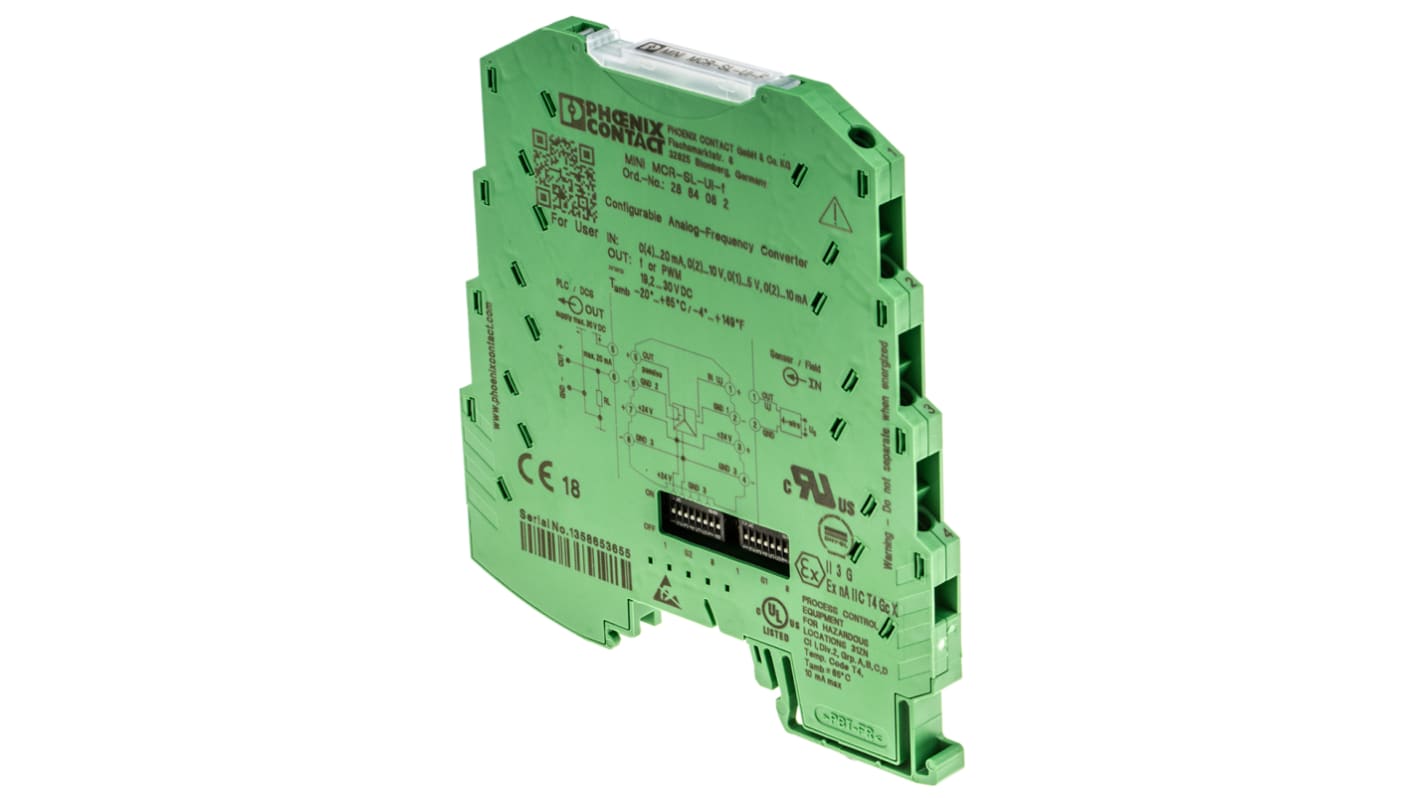

Phoenix Contact Signal Conditioner, 108.3g Weight, Single Output - MINI MCR-SL-UI-F - 2864082


Aiming to unlock crystal-clear communication? Choose this signal conditioner from Phoenix Contact to convert an analogue signal range between 0 and 20mA into eight frequency or PWM signals. The TBUS terminal block eliminates the need for a separate power source, so it's a walk in the park to integrate this component into your existing system. Streamlined dimensions of 6.2 (W) x 93.1 (H) x 101.2mm (D) make it a cinch to slot it into setups with limited space.

Thanks to a broad operating temperature range between -20°C and +65°C, the conditioner gets on with the job in challenging environments. An IP20 rating indicates it's protected against dust as well as objects over 12mm in size, so you can touch it without risking an electric shock. Short-circuit and reverse polarity protection safeguard your equipment from damage, keeping downtime to a minimum so you can run your operation like clockwork. You'll find this device in applications such as chemical processing and power generation plants.

Features & Benefits


• Red LED indicator for speedy troubleshooting

• PWM output between 5% and 95% enables fine-tuning to suit your needs

• Configurable interference filter reduces noise for smoother performance

• Snappy and secure mounting onto a standard DIN rail
