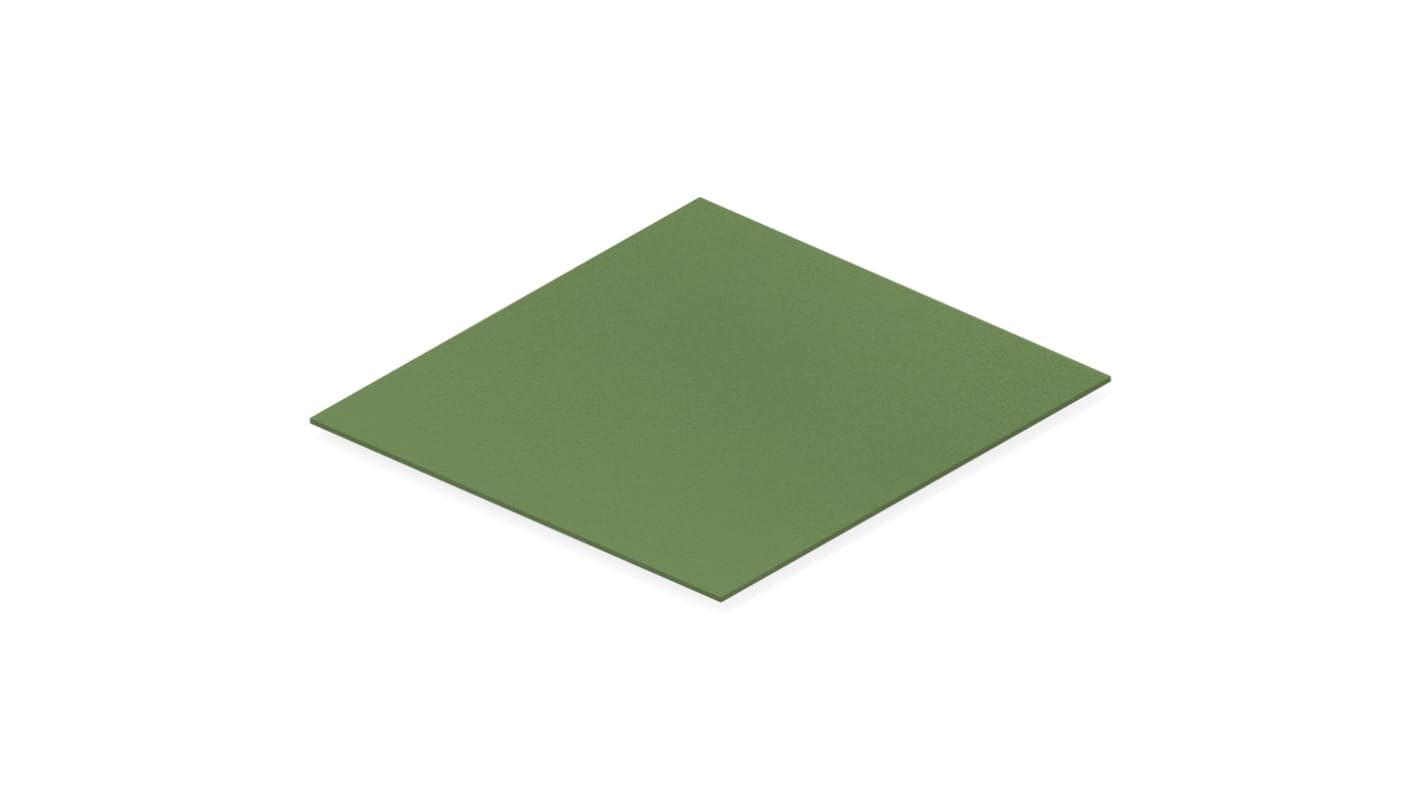

TE Connectivity Fluorosilicone Shielding Sheet, 300mm x 300mm x 1.2mm
- RS 재고 번호:
- 255-7197
- 제조 부품 번호:
- 1212-FNG-0012
- 제조업체:
- TE Connectivity
Subtotal (1 Bag of 10 units)*
₩5,639,680.40
마지막 RS 재고
- 최종적인 10 개 unit(s)이 배송 준비 됨
단위당 | 한팩당 | Per Bag* |
|---|---|---|
| 10 + | ₩563,968.04 | ₩5,639,680.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 255-7197
- 제조 부품 번호:
- 1212-FNG-0012
- 제조업체:
- TE Connectivity
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Material | Fluorosilicone, Nickel Plated Graphite | |
| Fixing Method | Surface Mount | |
| Series | Kemtron 1212 | |
| Thickness | 1.2mm | |
| Length | 300mm | |
| Width | 300mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Material Fluorosilicone, Nickel Plated Graphite | ||
Fixing Method Surface Mount | ||
Series Kemtron 1212 | ||
Thickness 1.2mm | ||
Length 300mm | ||
Width 300mm | ||
- COO (Country of Origin):
- GB
The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-300mm sq x 1.2mm thick.
Conductive sheet
The sheet consist of a fluorosilicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 15 N/cm²
The sheet consist of a fluorosilicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 15 N/cm²
