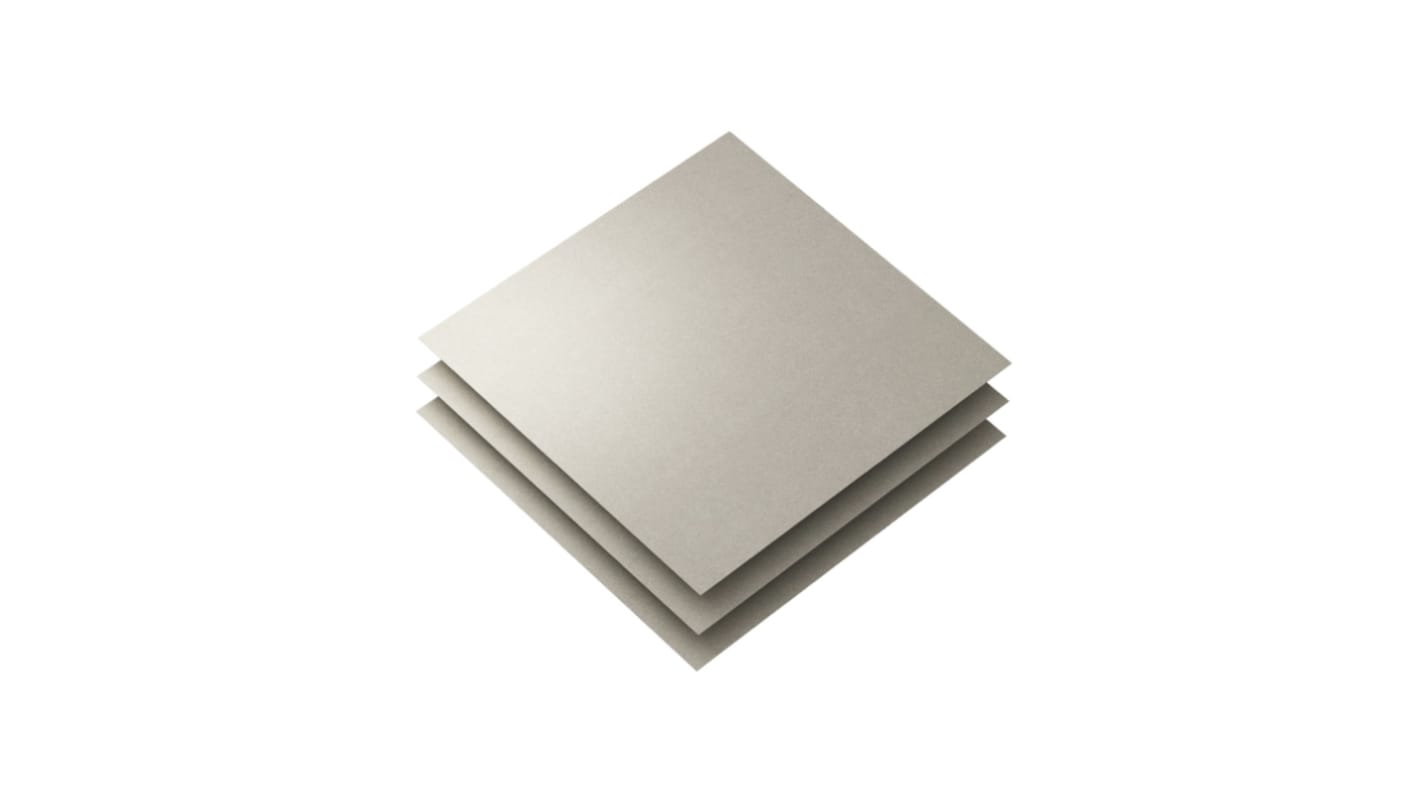

Name: KEMET Polymer, Magnetic Shielding Sheet, 90mm x 70mm x 0.2mm
Brand: KEMET
SKU: 181-5701
Price: 12302.72 KRW
Availability: BackOrder

The KEMET Magnetic Sheet for radio frequency identification (RFID) Flex Suppressor® prevents interference between a loop antenna and metallic objects and effectively improves the communication rage of RFID. The flexible sheet is a polymer base, blended with micronsized magnetic powders dispersed throughout the material. These sheets improve the magnetic flux convergence and can be cut into a variety of shapes and sizes.

Magnetic flux convergence improvement - increases the relative permeability (u’) while keeping the magnetic loss(u”) low Effective carrier frequency 13.56 MHz and below
Resistant to shock, not brittle
Thin, flexible material used in portable equipment
Virtually no limitation in where it can be used
Less time required for installation
Easily cut into any shape
Easily laminates the Flex Suppressor® roll to the tag roll
Halogen-free

수량	한팩당	Per Bag*
50 - 50	₩12,302.72	₩615,098.40
100 - 150	₩11,994.40	₩599,720.00
200 +	₩11,810.16	₩590,498.60

모두 선택	제품 정보	값
	브랜드	KEMET
	Material	Polymer base blended with micron sized magnetic powders
	Fixing Method	Self-Adhesive
	Series	RM4A
	Thickness	0.2mm
	Length	90mm
	Width	70mm
	Operating Temperature Range	-40 → +105 °C
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Peak Frequency	13.56MHz

	모두 선택
	브랜드 KEMET
	Material Polymer base blended with micron sized magnetic powders
	Fixing Method Self-Adhesive
	Series RM4A
	Thickness 0.2mm
	Length 90mm
	Width 70mm
	Operating Temperature Range -40 → +105 °C
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Peak Frequency 13.56MHz

KEMET Polymer, Magnetic Shielding Sheet, 90mm x 70mm x 0.2mm

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
