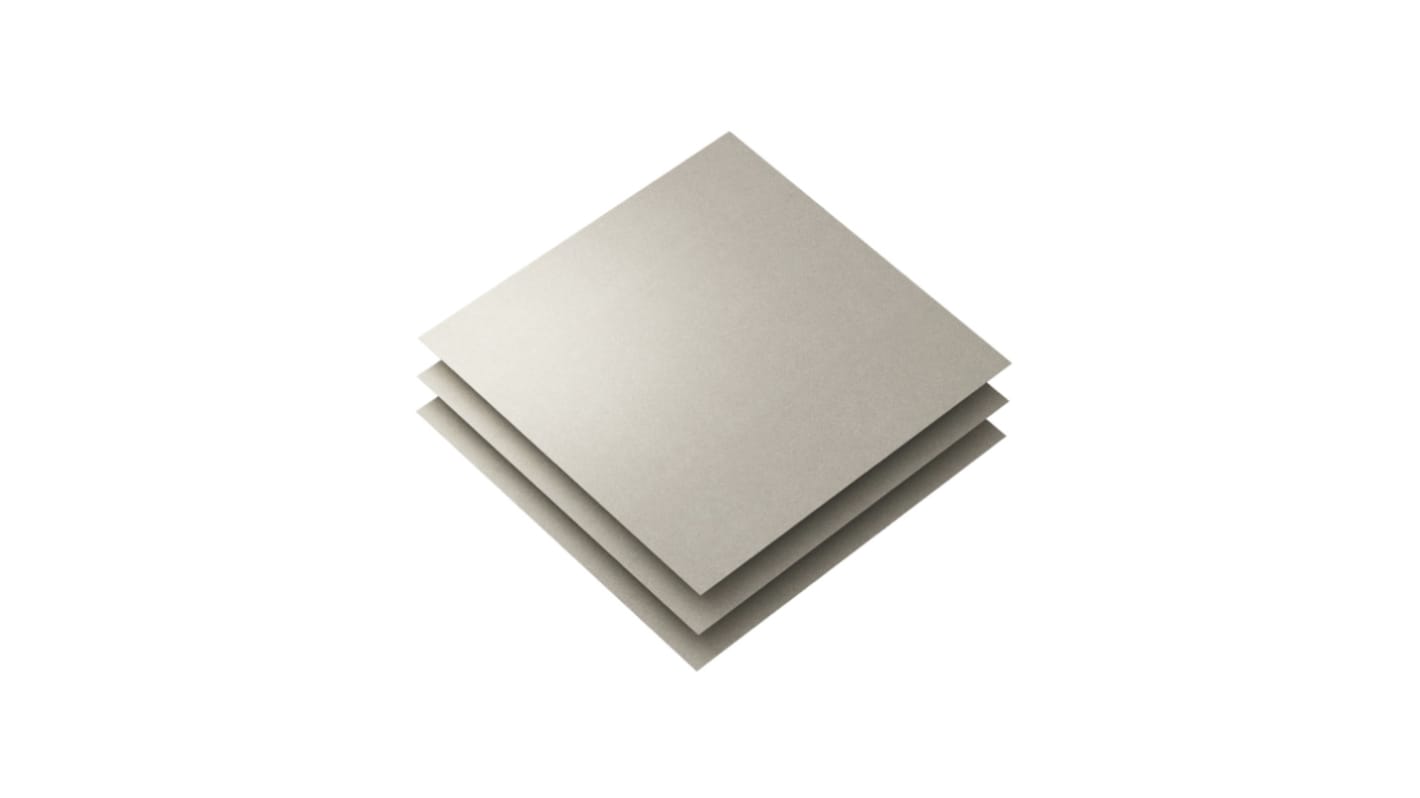

KEMET Polymer, Magnetic Shielding Sheet, 120mm x 120mm x 0.1mm
- RS 제품 번호:
- 181-5688
- 제조사 부품 번호:
- EFF4(01)-120X120T0800
- 제조업체:
- KEMET
대량 구매 할인 기용 가능
Subtotal (1 Bag of 25 units)*
₩420,274.00
재고있음
- 추가로 2025년 12월 15일 부터 25 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 25 - 25 | ₩16,810.96 | ₩420,255.20 |
| 50 - 225 | ₩16,389.84 | ₩409,746.00 |
| 250 + | ₩16,062.72 | ₩401,568.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-5688
- 제조사 부품 번호:
- EFF4(01)-120X120T0800
- 제조업체:
- KEMET
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | KEMET | |
| Material | Polymer base blended with micron sized magnetic powders | |
| Fixing Method | Self-Adhesive | |
| Thickness | 0.1mm | |
| Series | EFF | |
| Length | 120mm | |
| Width | 120mm | |
| Maximum Operating Temperature | +125°C | |
| Peak Frequency | 10GHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Shielded Frequency | 10GHz | |
| Minimum Shielded Frequency | 10000MHz | |
| Operating Temperature Range | -40 → +85 °C | |
| 모두 선택 | ||
|---|---|---|
브랜드 KEMET | ||
Material Polymer base blended with micron sized magnetic powders | ||
Fixing Method Self-Adhesive | ||
Thickness 0.1mm | ||
Series EFF | ||
Length 120mm | ||
Width 120mm | ||
Maximum Operating Temperature +125°C | ||
Peak Frequency 10GHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Shielded Frequency 10GHz | ||
Minimum Shielded Frequency 10000MHz | ||
Operating Temperature Range -40 → +85 °C | ||
- COO (Country of Origin):
- JP
The KEMET Noise Suppression Sheet Flex Suppressor® is effectively designed for high frequency noise that is generated from the electronic devices. The flexible sheet is a polymer base, blended with micron-sized magnetic powders dispersed throughout the material. These sheets are effective for electromagnetic wave and resonance suppression, and can be cut into a variety of shapes and sizes.
Electromagnetic wave suppression – the electromagnetic wave enters through the sheet and is suppressed by losing its magnetic structure
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
