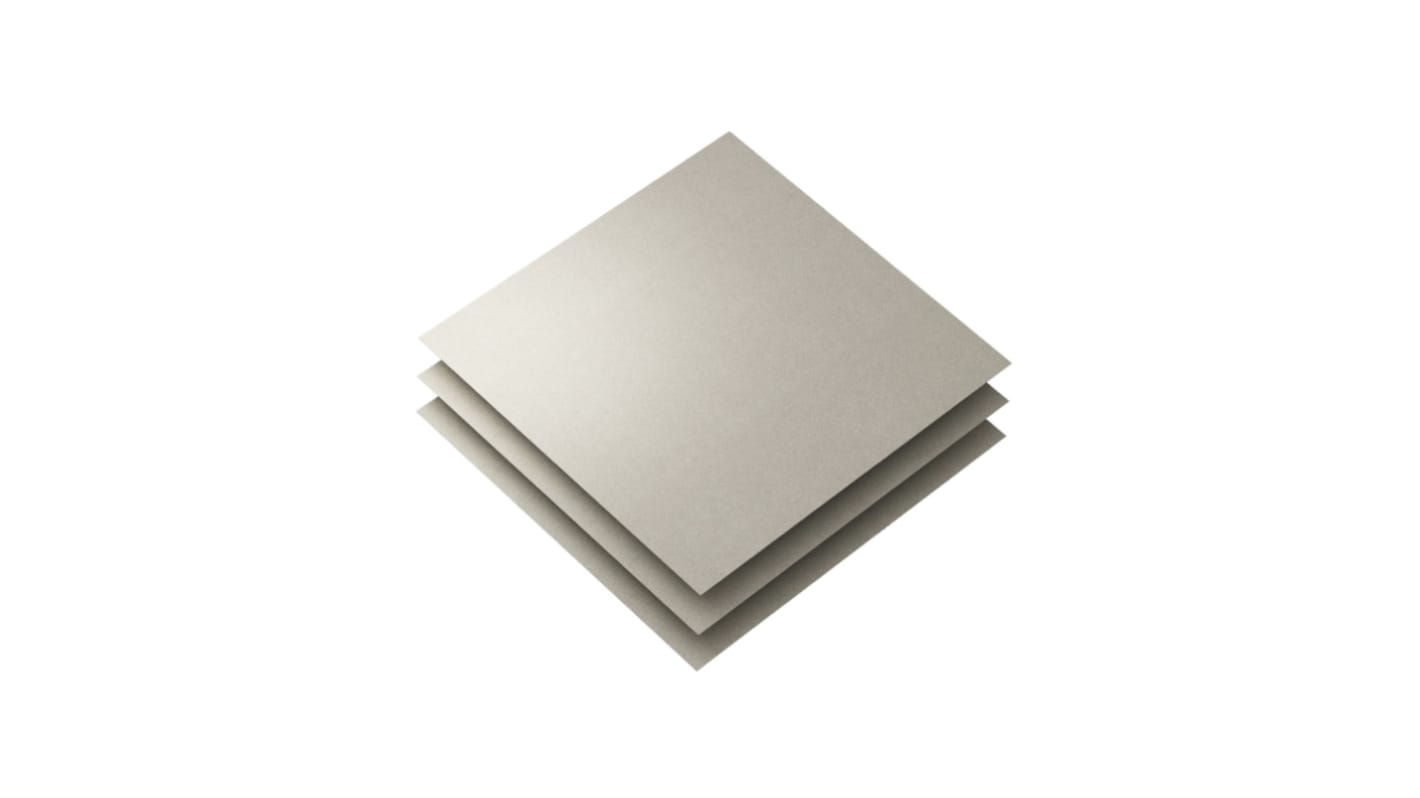

KEMET Polymer, Magnetic Shielding Sheet, 120mm x 120mm x 0.2mm
- RS 재고 번호:
- 181-5682
- 제조 부품 번호:
- FF1(200)-120X120T0800
- 제조업체:
- KEMET
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 재고 번호:
- 181-5682
- 제조 부품 번호:
- FF1(200)-120X120T0800
- 제조업체:
- KEMET
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | KEMET | |
| Material | Polymer base blended with micron sized magnetic powders | |
| Fixing Method | Self-Adhesive | |
| Thickness | 0.2mm | |
| Series | FF1 | |
| Length | 120mm | |
| Width | 120mm | |
| Maximum Operating Temperature | +125°C | |
| Maximum Shielded Frequency | 10GHz | |
| Minimum Shielded Frequency | 10000MHz | |
| Minimum Operating Temperature | -40°C | |
| Peak Frequency | 10GHz | |
| Operating Temperature Range | -40 → +125 °C | |
| 모두 선택 | ||
|---|---|---|
브랜드 KEMET | ||
Material Polymer base blended with micron sized magnetic powders | ||
Fixing Method Self-Adhesive | ||
Thickness 0.2mm | ||
Series FF1 | ||
Length 120mm | ||
Width 120mm | ||
Maximum Operating Temperature +125°C | ||
Maximum Shielded Frequency 10GHz | ||
Minimum Shielded Frequency 10000MHz | ||
Minimum Operating Temperature -40°C | ||
Peak Frequency 10GHz | ||
Operating Temperature Range -40 → +125 °C | ||
- COO (Country of Origin):
- JP
The KEMET Noise Suppression Sheet Flex Suppressor® is effectively designed for high frequency noise that is generated from the electronic devices. The flexible sheet is a polymer base, blended with micron-sized magnetic powders dispersed throughout the material. These sheets are effective for electromagnetic wave and resonance suppression, and can be cut into a variety of shapes and sizes.
Electromagnetic wave suppression – the electromagnetic wave enters through the sheet and is suppressed by losing its magnetic structure
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
