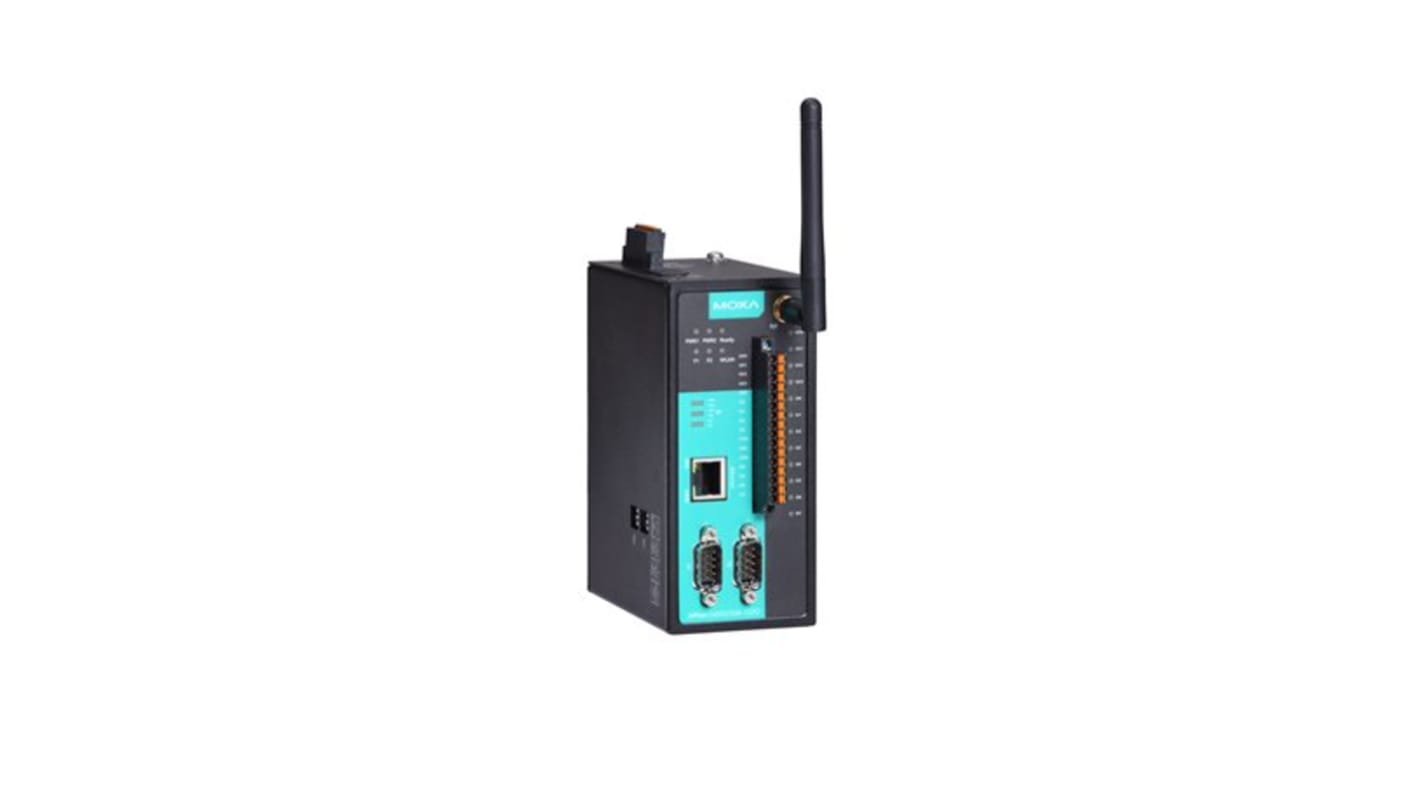

MOXA Device Server 2, 921.6 kbps Baud Rate

모든 Serial Device Servers 열람하기
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
RS 제품 번호:
255-3419
Distrelec 제품 번호:
301-39-953
제조사 부품 번호:
NPort IAW5250A-12I/O-EU
제조업체:
MOXA
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MOXA

Product Type

Device Server

Accessory Type

Server

Nominal Supply Voltage

12 V

Number of Ports

2

Minimum Operating Temperature

0°C

Connection Port

RS422, RS485, RS232

Maximum Operating Temperature

55°C

Standards/Approvals

IEC 61000-4-3, EN 61000-6-2/-6-4, IEC 61000-4-4, IEC 61000-4-2, IEC 61000-4-8, EN 60950-1, WEEE, RoHS, FCC Part 15B Class A, UL 60950-1, IEC 61000-4-6, EN 300 328, EN 301 893, IEC 61000-4-5, CISPR 32

Maximum Baud Rate

921.6kbps

COO (Country of Origin):
TW
The Moxa Europe 1/2-port RS-232/422/485 IEEE 802.11a/b/g/n wireless device server has 12 digital IOS. It has microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost. It supports repackaging the serial data size (up to 4K) to save the packet numbers that need to be sent to the cloud platform. It supports MQTT connection with TLS and certificate in JSON and raw data format.

Serial device server with 6 or 12 digital IOs

Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network

Connects serial/I/O data to the cloud through generic MQTT

Supports redundant dual DC power inputs and 1 relay output

Secure data access with WEP, WPA, WPA2

Wireless Client function for flexible integration

4 kV serial surge protection
