MikroElektronika Pressure 15 Click Absolute Pressure Sensor Add On Board for LPS27HHW mikroBUS Socket
- RS Stock No.:
- 247-5682
- Mfr. Part No.:
- MIKROE-4747
- Brand:
- MikroElektronika
Bulk discount available
Subtotal (1 unit)*
₩57,998.00
재고있음
- 추가로 2025년 12월 15일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 - 4 | ₩57,998.00 |
| 5 + | ₩56,851.20 |
*price indicative
- RS Stock No.:
- 247-5682
- Mfr. Part No.:
- MIKROE-4747
- Brand:
- MikroElektronika
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | MikroElektronika | |
| Product Type | Sensor Development Tool | |
| Sensor Technology | Absolute Pressure Sensor | |
| Featured Device | LPS27HHW | |
| For Use With | mikroBUS Socket | |
| Kit Classification | Add On Board | |
| Kit Name | Pressure 15 Click | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
브랜드 MikroElektronika | ||
Product Type Sensor Development Tool | ||
Sensor Technology Absolute Pressure Sensor | ||
Featured Device LPS27HHW | ||
For Use With mikroBUS Socket | ||
Kit Classification Add On Board | ||
Kit Name Pressure 15 Click | ||
Standards/Approvals RoHS | ||

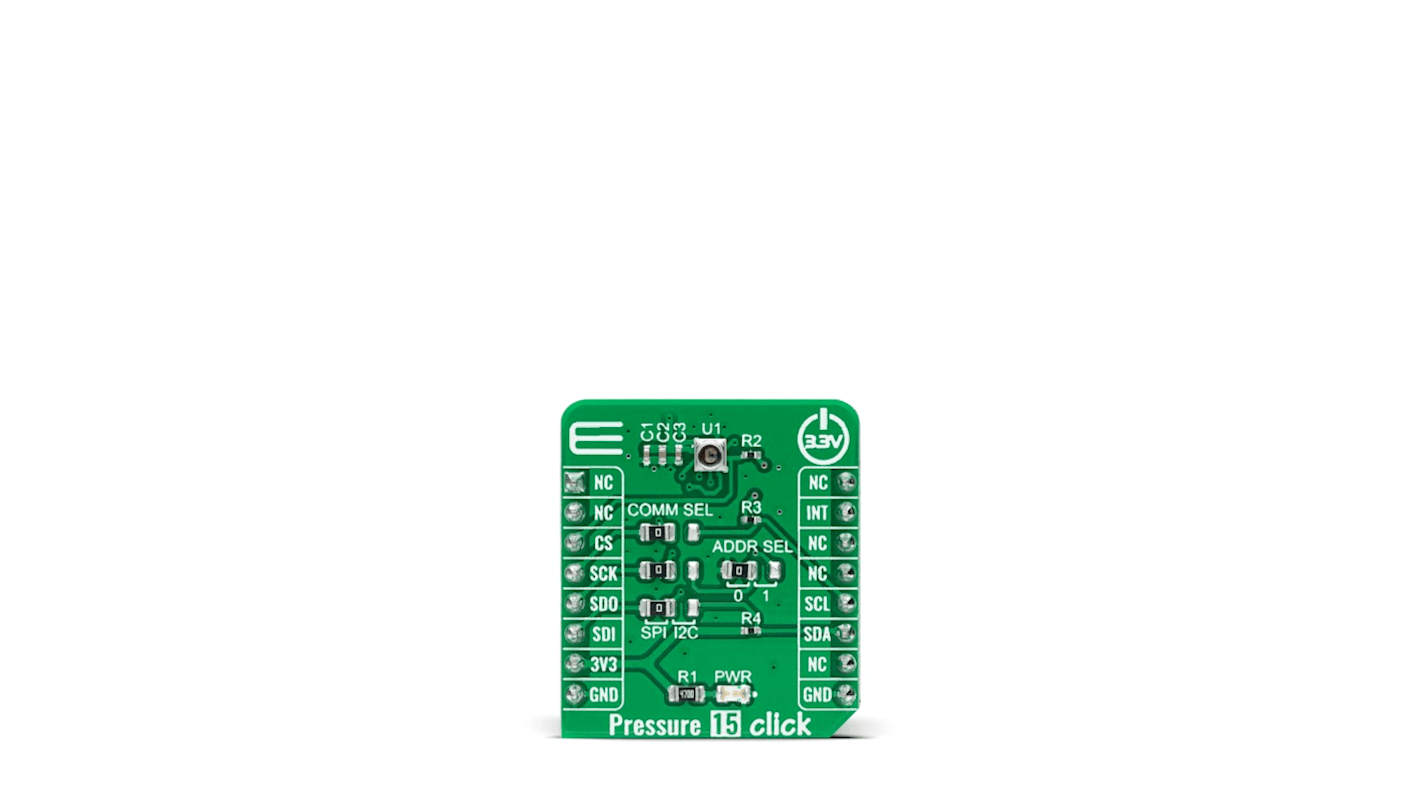

The The MikroElektronika's Pressure 15 Click is a compact add on board that contains a board-mount pressure sensor. This board features the LPS27HHW, an ultra-compact piezo resistive absolute pressure sensor that functions as a digital output barometer from STMicroelectronics. The device comprises a sensing element and an IC interface that communicates through I2C or SPI serial interface from the sensing element to the application. The sensing element, which detects absolute pressure in a range of 260 up to 1260hPa, consists of a suspended membrane manufactured using a dedicated process developed by STMicroelectronics. This Click board is suitable for weather station equipment, altimeter and barometer applications, industrial, consumer applications, and many more.
Low power consumption
High precision
Wide absolute pressure measurement range
Selectable serial interface
Selectable I2C slave address
Interrupt or data-ready feature
