MikroElektronika MR Angle Click Magnetoresistive Sensor Add On Board for MCP3204, KMZ60 mikroBUS Socket
- RS 제품 번호:
- 247-5653
- 제조사 부품 번호:
- MIKROE-4634
- 제조업체:
- MikroElektronika
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 247-5653
- 제조사 부품 번호:
- MIKROE-4634
- 제조업체:
- MikroElektronika
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | MikroElektronika | |
| Product Type | Sensor Development Tool | |
| Sensor Technology | Magnetoresistive Sensor | |
| Featured Device | MCP3204, KMZ60 | |
| For Use With | mikroBUS Socket | |
| Kit Classification | Add On Board | |
| Standards/Approvals | RoHS | |
| Kit Name | MR Angle Click | |
| 모두 선택 | ||
|---|---|---|
브랜드 MikroElektronika | ||
Product Type Sensor Development Tool | ||
Sensor Technology Magnetoresistive Sensor | ||
Featured Device MCP3204, KMZ60 | ||
For Use With mikroBUS Socket | ||
Kit Classification Add On Board | ||
Standards/Approvals RoHS | ||
Kit Name MR Angle Click | ||

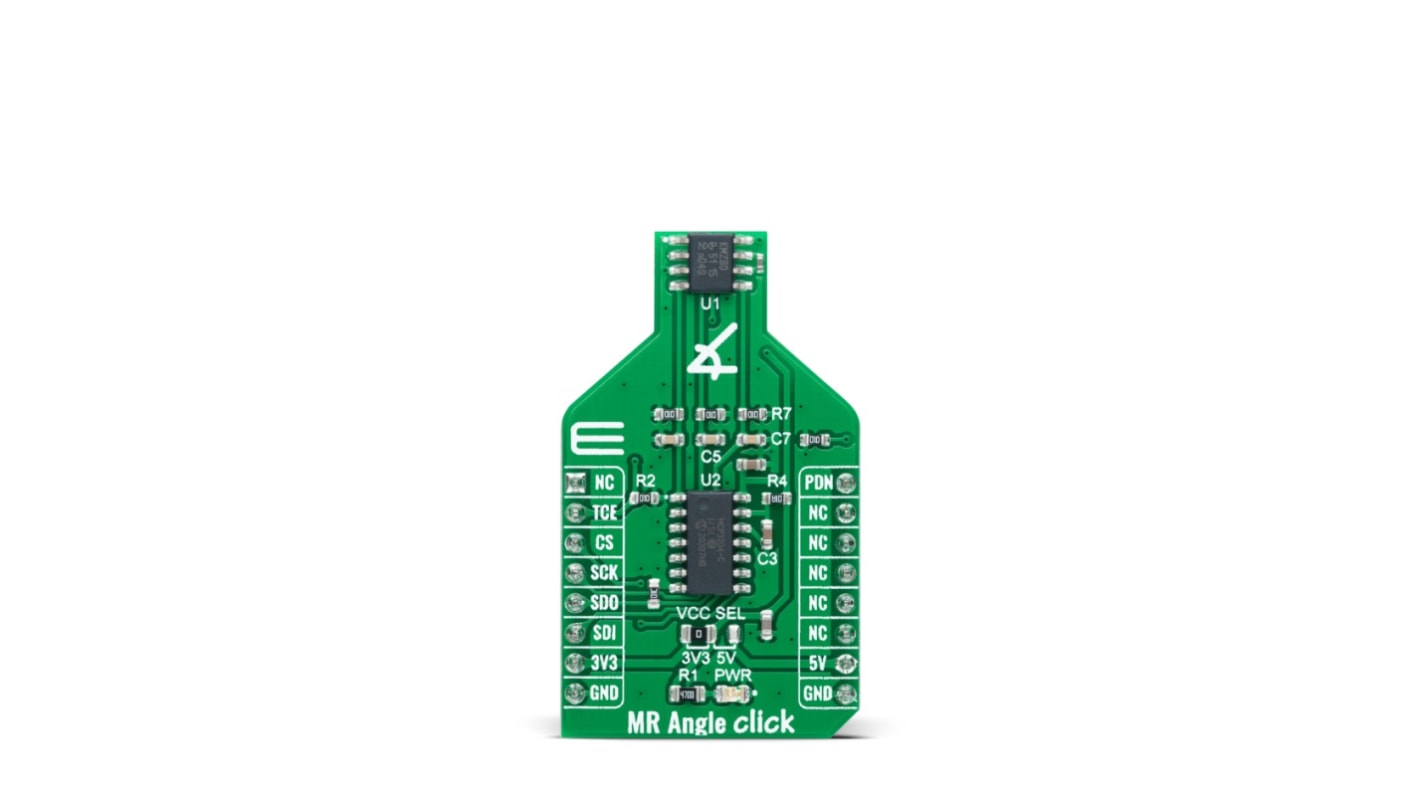

The MikroElektronika MR Angle Click is a compact add on board that contains a magneto resistive sensor with an integrated amplifier. This board features the KMZ60, a high precision sensor for magnetic angle measurement with single ended cosine and sine outputs from NXP Semiconductors. The KMZ60 is fully automotive qualified as well as applicable for industrial and consumer applications. This Click board is suitable for rotor position detection for BLDC motors and Electronic Power Steering applications, steering angle measurement, window wiper position detection, and general contactless angular measurement.
High precision sensor for magnetic angle measurement
Temperature compensated output signal amplitude
Power Down mode to enable or disable the device
Integrated instrumentation amplifier
Fully automotive qualified
