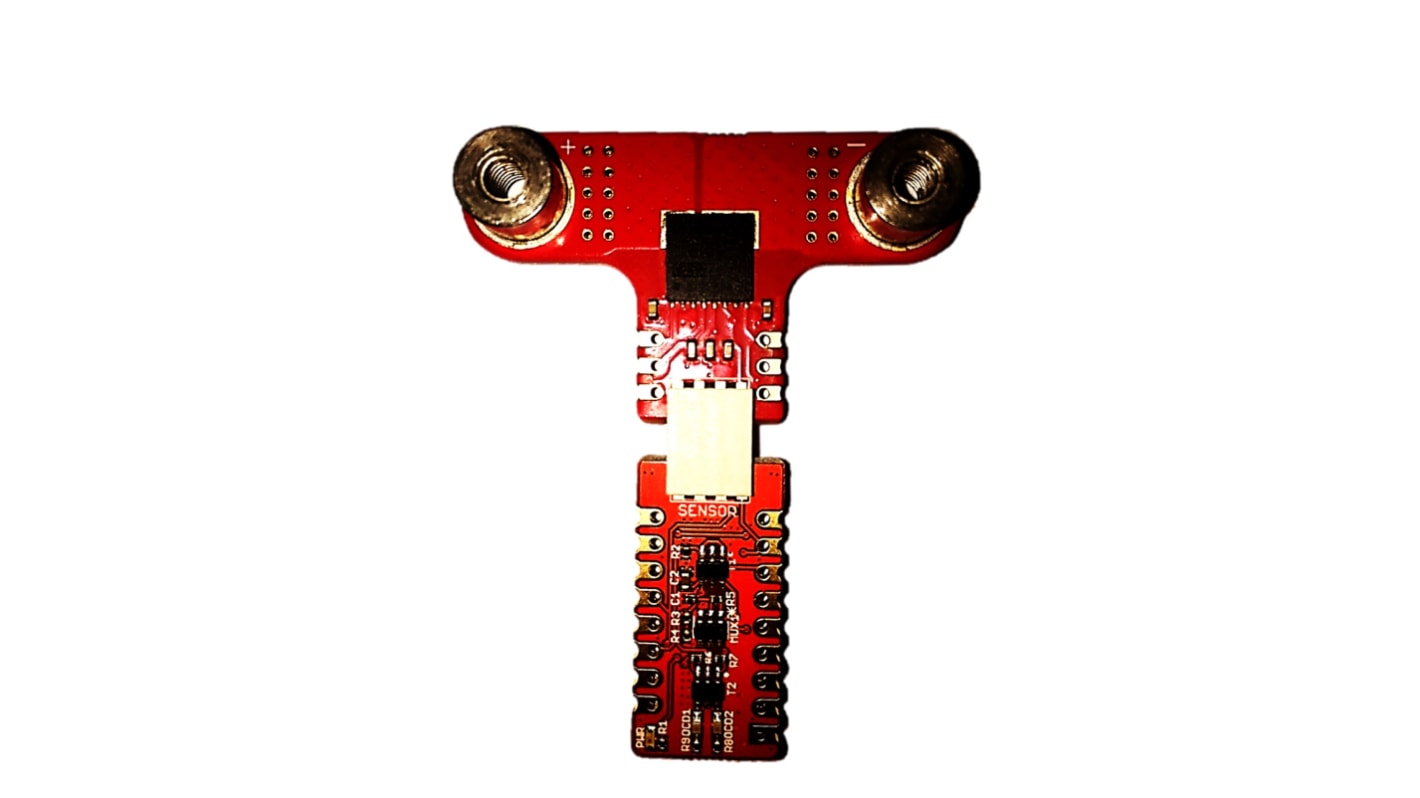

Infineon MS2GO Current Sensor for TLI4971 Inverter/Converter

모든 Sensor Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩65,651.48

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 추가로 2025년 12월 15일 부터 16 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩65,651.48
5 - 9₩63,126.64
10 +₩62,325.76

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
225-1583
제조사 부품 번호:
TLI4971 MS2GO
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Product Type

Power Management Development Kit

Sensor Technology

Current Sensor

Featured Device

TLI4971

For Use With

Inverter/Converter

Standards/Approvals

RoHS

Kit Name

MS2GO

The Infineon coreless current sensors with the new TLI4971. Our sensor relies on a Hall-based magnetic sensing principle with an integrated current rail offering smallest footprint resulting in an overall system size reduction. In addition a differential measurement principle makes the current sensor stray-field robust, furthermore an ultra- fast analogue output path offers a bandwidth of up to 120kHz. Paired with 2 programmable overcurrent channels the current sensor is a perfect fit for industrial applications such as drives and inverters. For evaluation purposes of the latest XENSIV current sensor TLI4971 we rely on our proven evaluation concept of Shield2Go and 2GO Kits.

Sensor Shield board description & schematic

MCU board description & schematic

Current2Go Eva kit GUI description & installation procedure

GUI operation with MS2Go kit in electric drive application example

MS2Go, S2Go kit and companion board order information

MS2Go and S2Go kit use cases
