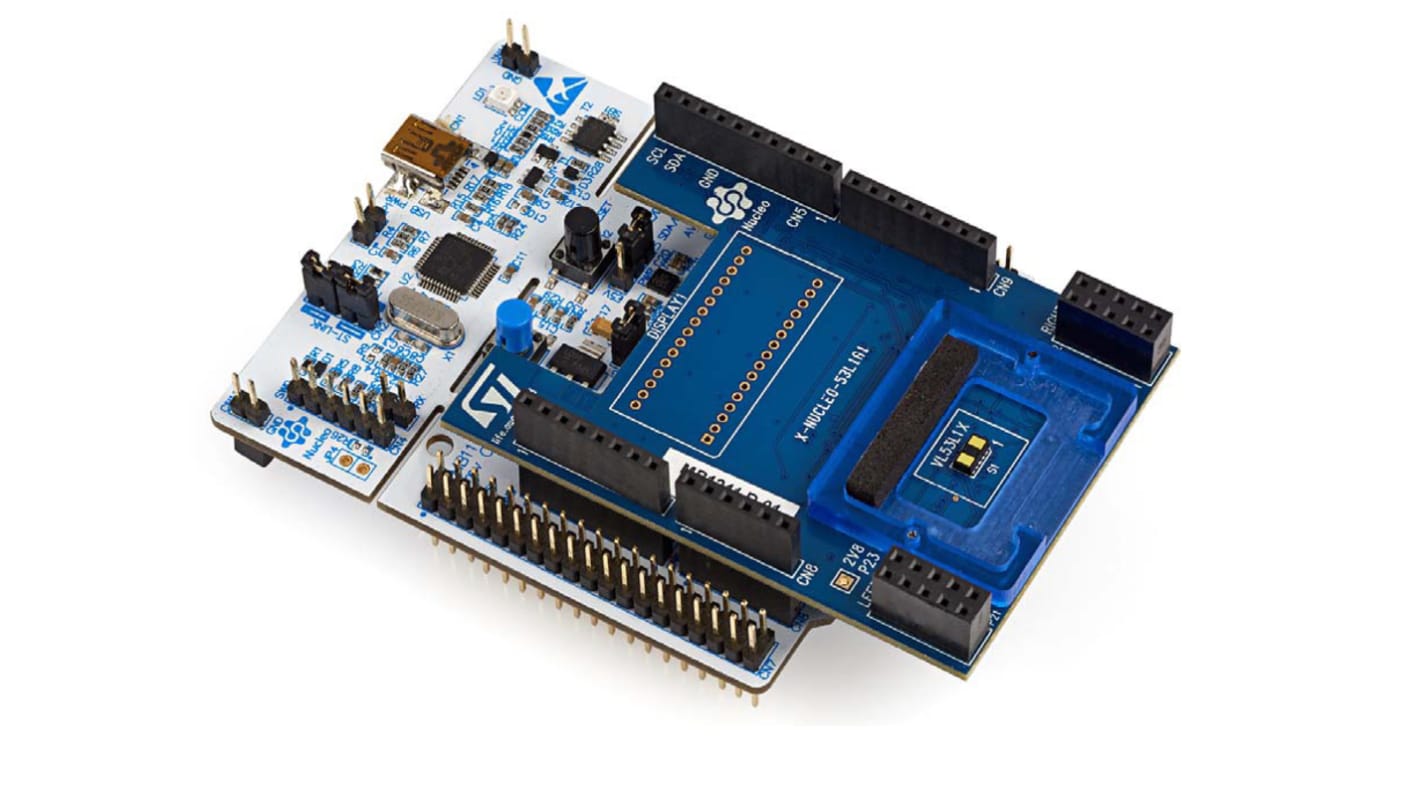

STMicroelectronics P-NUCLEO-53L1A1 Evaluation Module

모든 Sensor Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩104,283.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
  • 추가로 2025년 12월 17일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩104,283.60
5 +₩102,196.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
175-1097
제조사 부품 번호:
P-NUCLEO-53L1A1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Sensor Development Tool

Kit Classification

Evaluation Module

Standards/Approvals

RoHS

Kit Name

P-NUCLEO-53L1A1

COO (Country of Origin):
CN

STMicroelectronics VL53L1Xx - NUCELO Board Time Of Flight S


The STMicroelectronics VL53L1xx - NUCELO Board Time of Flight S is a complete evaluation kit allowing anyone to learn, evaluate and develop their application using the VL53L1X ToF, long-distance ranging sensor technology. The VL53L1X is the latest product based on ST’s patented FlightSense™ technology. This technology allows absolute long-distance distance to be measured independently of target reflectance. Instead of estimating the distance by measuring the amount of light reflected from an object (which is significantly influenced by Colour and surface), the VL53L1X precisely measures the time the light takes to travel to the nearest object and reflect the sensor (Time-of-Flight). The STM32 NUCLEO board, NUCLEO-F401RE, provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.

Features and Benefits:


• VL53L1X Time-of-Flight (ToF), long-distance ranging sensor expansion-board (X-NUCLEO53L1A1)

• STM32F401RE nucleo board

• Two VL53L1X breakout boards

• 0.25, 0.5 and 1 mm height spacers to simulate air gaps

• Two different cover windows

• Equipped with an Arduino UNO R3 connector

• The two VL53L1X breakout boards can be connected onto the X-NUCLEO-53L1A1 expansion-board to integrate the VL53L1X into the customer’s application

• Full system SW is supplied, including code examples and graphical user interface. All this can be downloaded from the folder “TOOLS AND SOFTWARE, section Ecosystem” on www.st.com/VL53L1X

Certifications:


• IEC 60825-1:2014
