STMicroelectronics Expansion Board for VL53L1X STM32 Nucleo Board
- RS 제품 번호:
- 175-1096
- 제조사 부품 번호:
- X-NUCLEO-53L1A1
- 제조업체:
- STMicroelectronics
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩63,224.40
공급 부족
- 27 개 단위 배송 준비 완료
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩63,224.40 |
| 5 + | ₩61,946.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 175-1096
- 제조사 부품 번호:
- X-NUCLEO-53L1A1
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Sensor Development Tool | |
| Featured Device | VL53L1X | |
| For Use With | STM32 Nucleo Board | |
| Kit Classification | Expansion Board | |
| Standards/Approvals | RoHS | |
| Distrelec Product Id | 301-76-643 | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Sensor Development Tool | ||
Featured Device VL53L1X | ||
For Use With STM32 Nucleo Board | ||
Kit Classification Expansion Board | ||
Standards/Approvals RoHS | ||
Distrelec Product Id 301-76-643 | ||
- COO (Country of Origin):
- CN

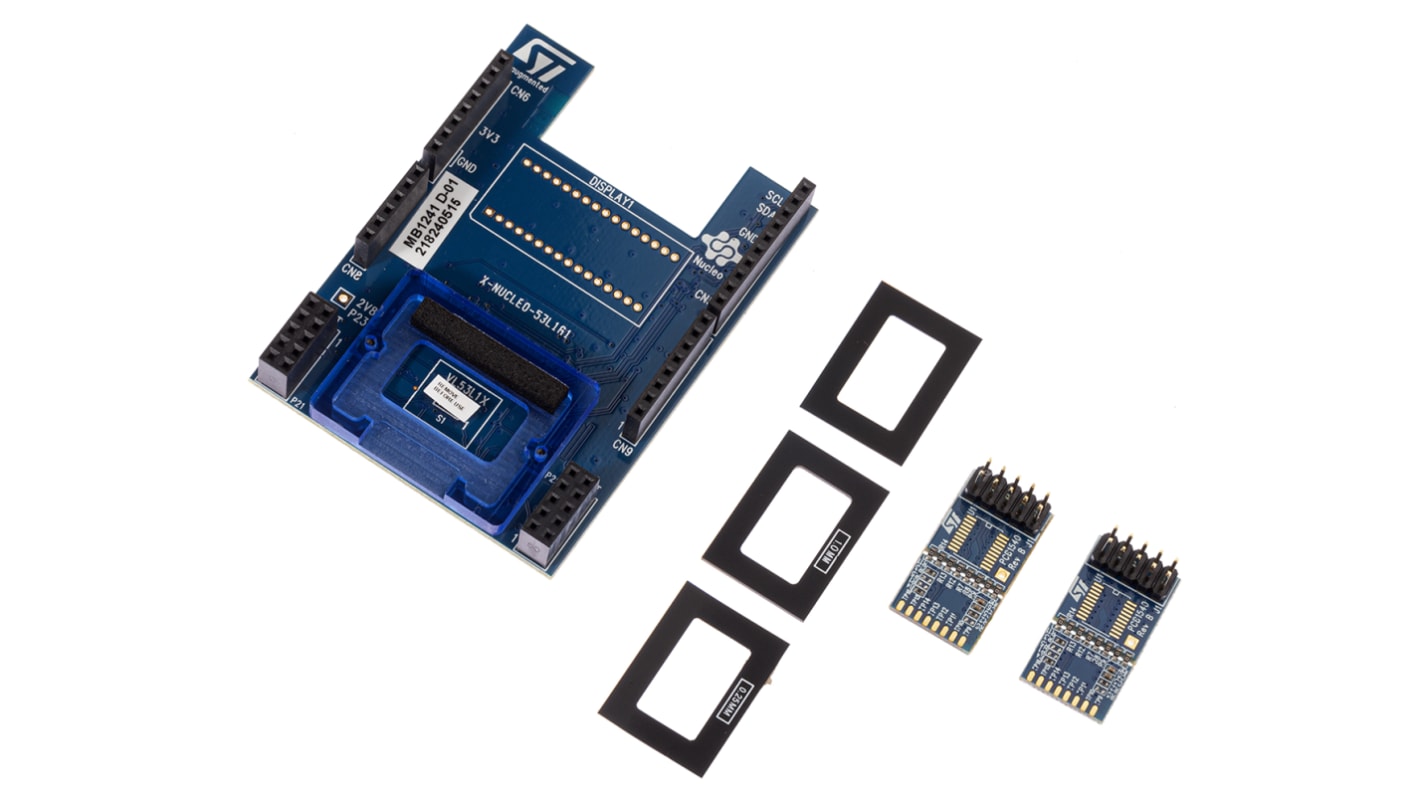

STMicroelectronics Time-of-Flight Expansion board
The STMicroelectronics Time-of-Flight sensor expansion board used for NUCLEO-F401RE and NUCLEO-L476RG development boards. It provides a complete evaluation kit allowing anyone to learn, evaluate, and develop their applications using the VL53L1X ToF, long-distance ranging sensor technology. It contains three spacers of 0.25, 0.5, and 1 mm height, used to simulate different air gaps between the VL53L1X and the cover glass. Full system SW is supplied, including code examples and graphical user interface. All this can be downloaded from the folder "TOOLS AND SOFTWARE, section Ecosystems" on www. St. Com/VL53L1X.
Features and Benefits
• Accurate absolute ranging distance
• Compatible with STM32 nucleo board family and Arduino UNO R3 connector layout
• Input supply voltage is 3.3V
• Time-of-flight sensor module
Applications
• Electronic industry
• Long distance ranging
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• ECCN (US) EAR99
