onsemi Ambient Light Sensor (ALS) Shield Evaluation Board Evaluation Board for NOA1305CUTAG, PCA9655EMTTXG
- RS 제품 번호:
- 171-9122
- 제조사 부품 번호:
- ALS-GEVB
- 제조업체:
- onsemi
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩22,278.00
마지막 RS 재고
- 최종적인 9 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩22,278.00 |
| 5 + | ₩21,845.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-9122
- 제조사 부품 번호:
- ALS-GEVB
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Featured Device | NOA1305CUTAG, PCA9655EMTTXG | |
| Kit Classification | Evaluation Board | |
| Kit Name | Ambient Light Sensor (ALS) Shield Evaluation Board | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Featured Device NOA1305CUTAG, PCA9655EMTTXG | ||
Kit Classification Evaluation Board | ||
Kit Name Ambient Light Sensor (ALS) Shield Evaluation Board | ||

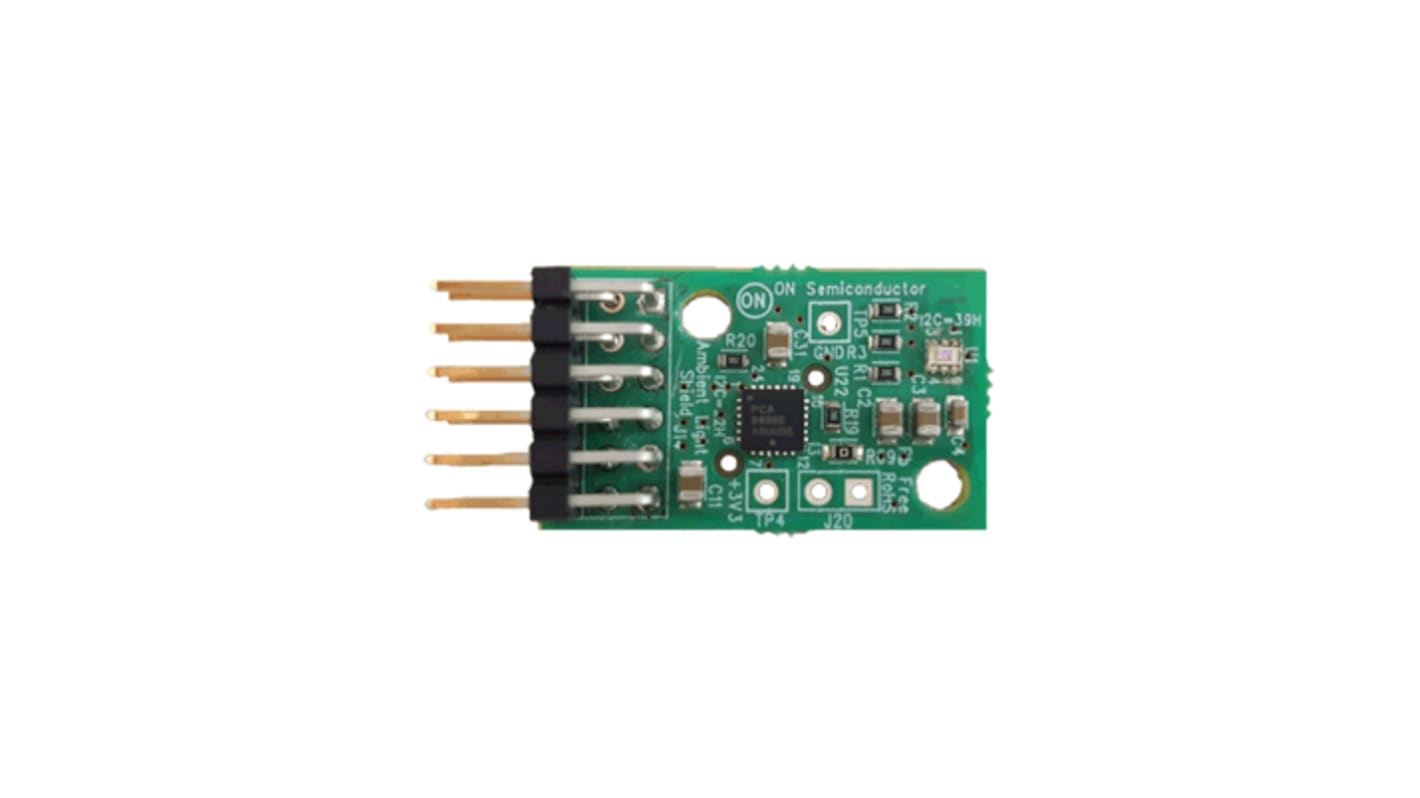

ON Semiconductor ALS Shield Evaluation Board
The ON semiconductor ALS-GEVB ambient light sensor (ALS) shield evaluation kit for NOA1305 is a comprehensive solution designed for handheld applications. This kit has an integrated 16-bit analogue-to-digital converter, a 2-wire I2C digital interface, internal clock oscillator and a power-down mode. The built-in dynamic dark current compensation and precision calibration capability coupled with excellent IR and 50-60 Hz flicker rejection enable highly accurate measurements from very low light levels to full sunlight.
Features and Benefits
• Input supply voltage is 3.3V
• Large signal to noise ratio (SNR) due to CMOS image sensing technology
• optical filter used with this chip provides a light response similar to that of the human eye
• Used with NOA1305CUTAG, PCA9655EMTTXG devices
• Wide dynamic range (DR) over the entire operating temperature
• Large signal to noise ratio (SNR) due to CMOS image sensing technology
• optical filter used with this chip provides a light response similar to that of the human eye
• Used with NOA1305CUTAG, PCA9655EMTTXG devices
• Wide dynamic range (DR) over the entire operating temperature
Applications
• Electronic industry
• Low Power IoT applications
• Low Power IoT applications
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
