MikroElektronika Flame Click Flame Sensor MikroBus Click Board for PT334-6B

모든 Sensor Development Tools 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩25,080.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 15 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩25,080.00
5 +₩24,100.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
136-0709
Distrelec 제품 번호:
301-63-591
제조사 부품 번호:
MIKROE-1820
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Product Type

Sensor Development Tool

Sensor Technology

Flame Sensor

Featured Device

PT334-6B

Kit Classification

MikroBus Click Board

Standards/Approvals

RoHS

Kit Name

Flame Click

FLAME click mikroBUS™

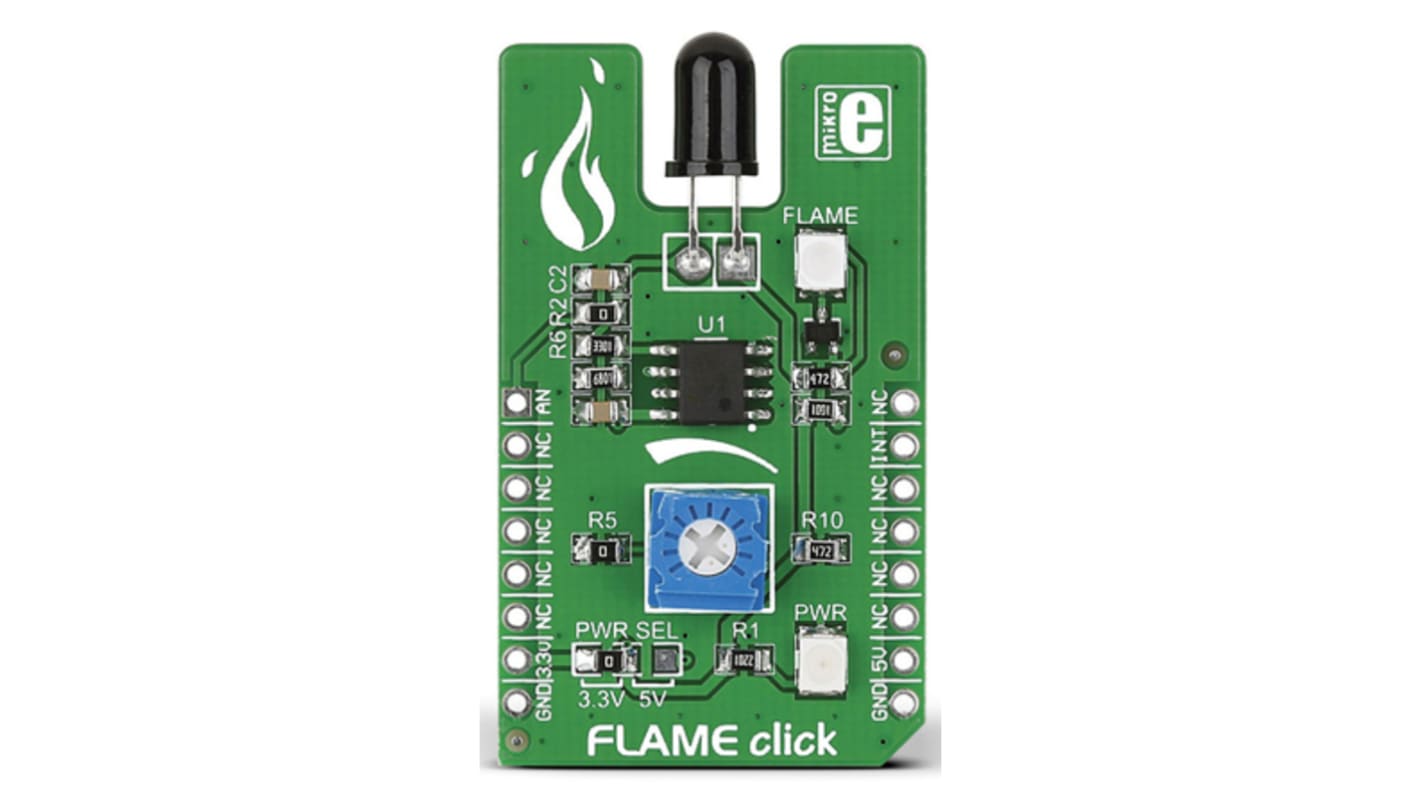

A Click accessory module for use with MikroElektronika mikroBUS™ microcontroller development boards. The Flame click board is a fire detection solution using a PT334-6B silicon phototransistor. The phototransistor is housed in a dark diffused package and has high sensitivity to infrared radiation. A potentiometer on the click board allows precise setting of the detection threshold, which, when reached, will send an interrupt to the target board MCU through the mikroBUS INT pin. The click board also has an analogue output for continuous infrared level measurement. The board requires a power supply of 3.3 or 5V.

Click mikroBUS™ Sensor Boards


MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!

Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

Note

Click board comes with the header strips soldered.
