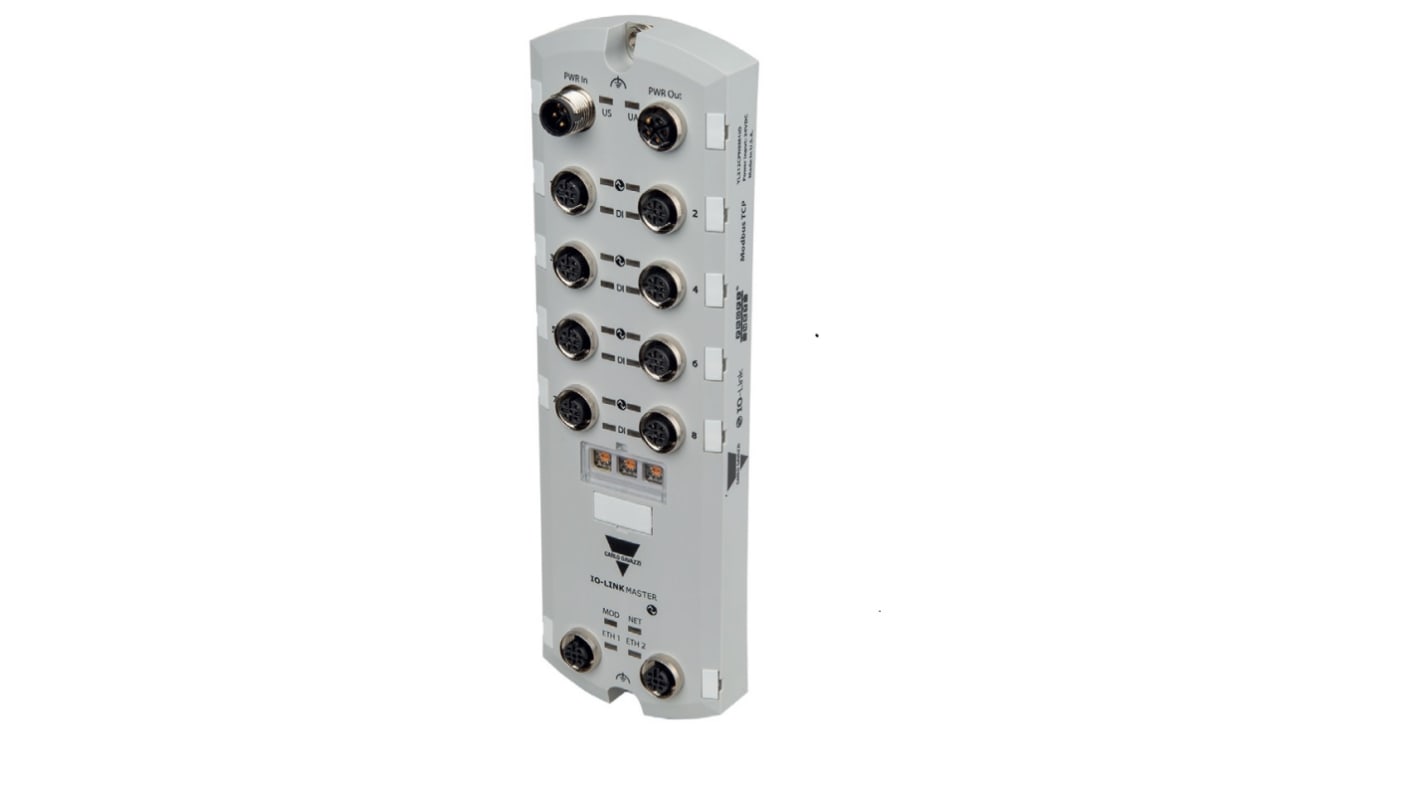

Carlo Gavazzi Y Series Sensor Box, 8 Port, TCP, OPC UA, Ethernet

RS 제품 번호:: 209-8618
제조사 부품 번호:: YL212CEI8M1IO
제조업체:: Carlo Gavazzi

Carlo Gavazzi Y Series Sensor Box, 8 Port, TCP, OPC UA, Ethernet

Subtotal (1 unit)*

₩1,793,181.60

일시적 품절

2026년 8월 27일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩1,793,181.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 209-8618
제조사 부품 번호:: YL212CEI8M1IO
제조업체:: Carlo Gavazzi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Carlo Gavazzi
	Product Type	Sensor Box
	Number of Ports	8
	Maximum Operating Voltage	30V
	Series	Y
	Interface Type	TCP, OPC UA, Ethernet
	Housing Material	Molded Polyamide 66 (Potted)
	IP Rating	IP67
	Minimum Operating Temperature	25°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	FCC Part15 Subpart B, EN 61000-6-4, IEC 61000-4-11, IEC 60068-2-27, Class A limit, EN 61000-6-2, Canadian EMC requirements ICES-001, IEC 61000-4-3, IEC 61000-4-8, IEC 61000-4-6, IEC 61000-4-4, AS/NZS CISPR-11, IEC 61000-6-4, IEC 60068-2-6, UL 61010-1 / UL 61010-1-201, IEC 61131-2, EN/IEC 61131-2, IEC 61000-4-5, IEC 60529, IEC 61000-4-2, CSA C22.2 No. 61010-1-12 / CSA C 22.2 No. 61010-1-201, EN/IEC 61131-9
	Minimum Operating Voltage	20V
	Output Type	Digital I/O, Digital Input, IO-Link

	모두 선택
	브랜드 Carlo Gavazzi
	Product Type Sensor Box
	Number of Ports 8
	Maximum Operating Voltage 30V
	Series Y
	Interface Type TCP, OPC UA, Ethernet
	Housing Material Molded Polyamide 66 (Potted)
	IP Rating IP67
	Minimum Operating Temperature 25°C
	Maximum Operating Temperature 60°C
	Standards/Approvals FCC Part15 Subpart B, EN 61000-6-4, IEC 61000-4-11, IEC 60068-2-27, Class A limit, EN 61000-6-2, Canadian EMC requirements ICES-001, IEC 61000-4-3, IEC 61000-4-8, IEC 61000-4-6, IEC 61000-4-4, AS/NZS CISPR-11, IEC 61000-6-4, IEC 60068-2-6, UL 61010-1 / UL 61010-1-201, IEC 61131-2, EN/IEC 61131-2, IEC 61000-4-5, IEC 60529, IEC 61000-4-2, CSA C22.2 No. 61010-1-12 / CSA C 22.2 No. 61010-1-201, EN/IEC 61131-9
	Minimum Operating Voltage 20V
	Output Type Digital I/O, Digital Input, IO-Link

Datasheet - YL212CEI8M1IO

COO (Country of Origin):: US

The Carlo Gavazzi slimline IO-Link master is machine mount fieldbus module with eight M12 IO-Link ports, compatible with IO-Link V1.0 and V1.1. It is a gateway solution with support for EtherNet/IP™ fieldbus system.

M12 L-Coded power connectors

IO-Link master with EtherNet/IP™, Modbus TCP, OPC UA

OPC UA support

Integrated web server and IODD interpreter

Dual Ethernet ports via M12, D-coded

Multi-colour LEDs for device, network, and port status diagnostics

Carlo Gavazzi Y Series Sensor Box, 8 Port, TCP, OPC UA, Ethernet
