제조사부품번호

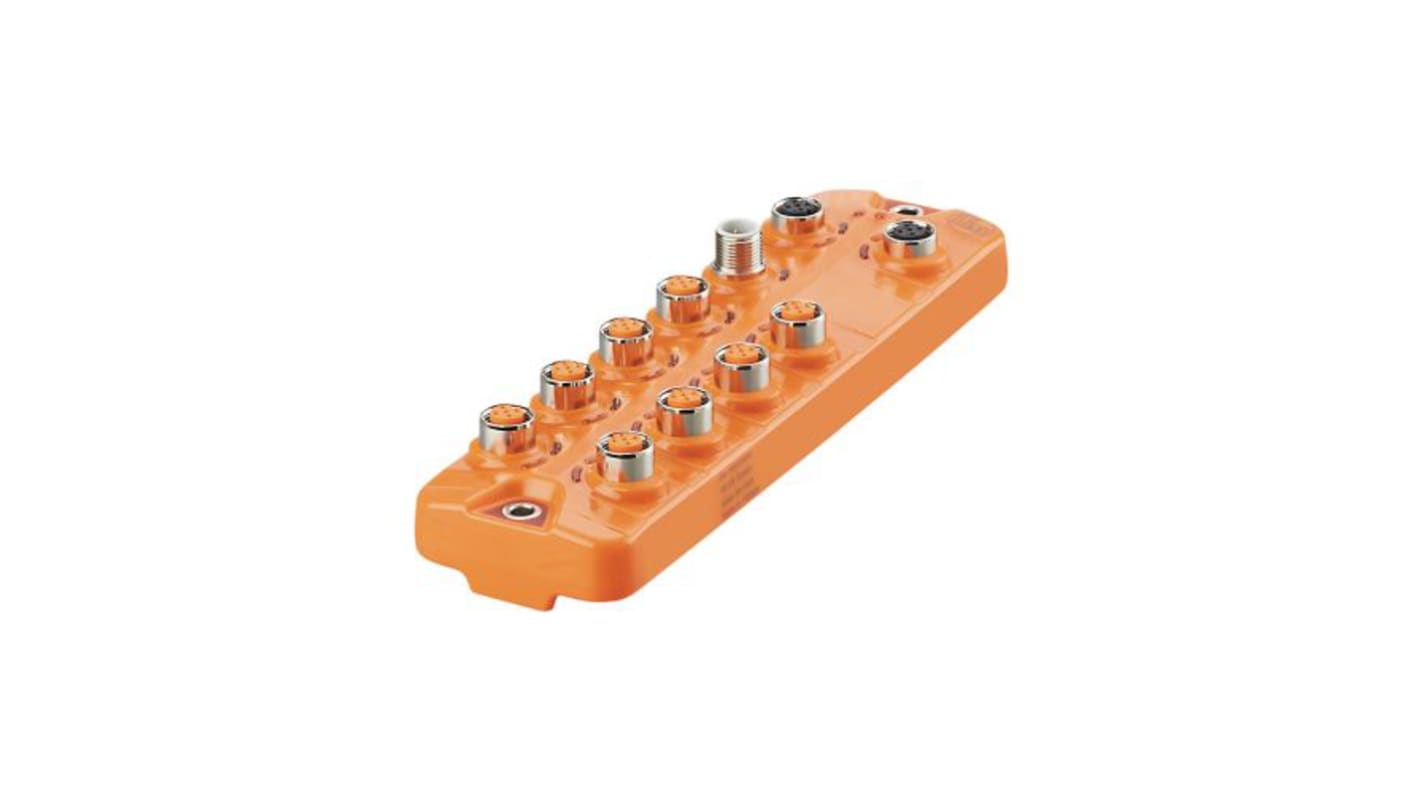

ifm electronic AL1122 Series Sensor Box, 8 Port, Ethernet/IP

RS 제품 번호:: 183-2776
제조사 부품 번호:: AL1122
제조업체:: ifm electronic

ifm electronic AL1122 Series Sensor Box, 8 Port, Ethernet/IP

Subtotal (1 unit)*

₩849,139.60

재고있음

5 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩849,139.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 183-2776
제조사 부품 번호:: AL1122
제조업체:: ifm electronic

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ifm electronic
	Product Type	Sensor Box
	Inlet Connection Type	M12
	Number of Ports	8
	Maximum Operating Voltage	30V dc
	Series	AL1122
	Interface Type	Ethernet/IP
	Housing Material	Polyamide
	IP Rating	IP66, IP65, IP67
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	DIN EN 60068-2-6 2008-10, DIN EN 60068-2-27, EN 61000-6-2, EN 61000-6-4, DIN EN 60068-2-64 2009-04
	Minimum Operating Voltage	20V
	Output Type	Digital

	모두 선택
	브랜드 ifm electronic
	Product Type Sensor Box
	Inlet Connection Type M12
	Number of Ports 8
	Maximum Operating Voltage 30V dc
	Series AL1122
	Interface Type Ethernet/IP
	Housing Material Polyamide
	IP Rating IP66, IP65, IP67
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Standards/Approvals DIN EN 60068-2-6 2008-10, DIN EN 60068-2-27, EN 61000-6-2, EN 61000-6-4, DIN EN 60068-2-64 2009-04
	Minimum Operating Voltage 20V
	Output Type Digital

COO (Country of Origin):: PL

Reliable transmission of machine data, process parameters and diagnostic data to the controller

For connection of up to eight IO-Link devices

Wide operating temperature range and high protection rating

With integrated fieldbus interface

Robust housing for use in harsh industrial environments

Reliable transmission of machine data, process parameters and diagnostic data to the controller

For connection of up to eight IO-Link devices

With integrated EtherNet/IP interface

Software LR AGENT EMBEDDED for direct communication with SAP

Robust housing for use in harsh industrial environments

ifm electronic AL1122 Series Sensor Box, 8 Port, Ethernet/IP
