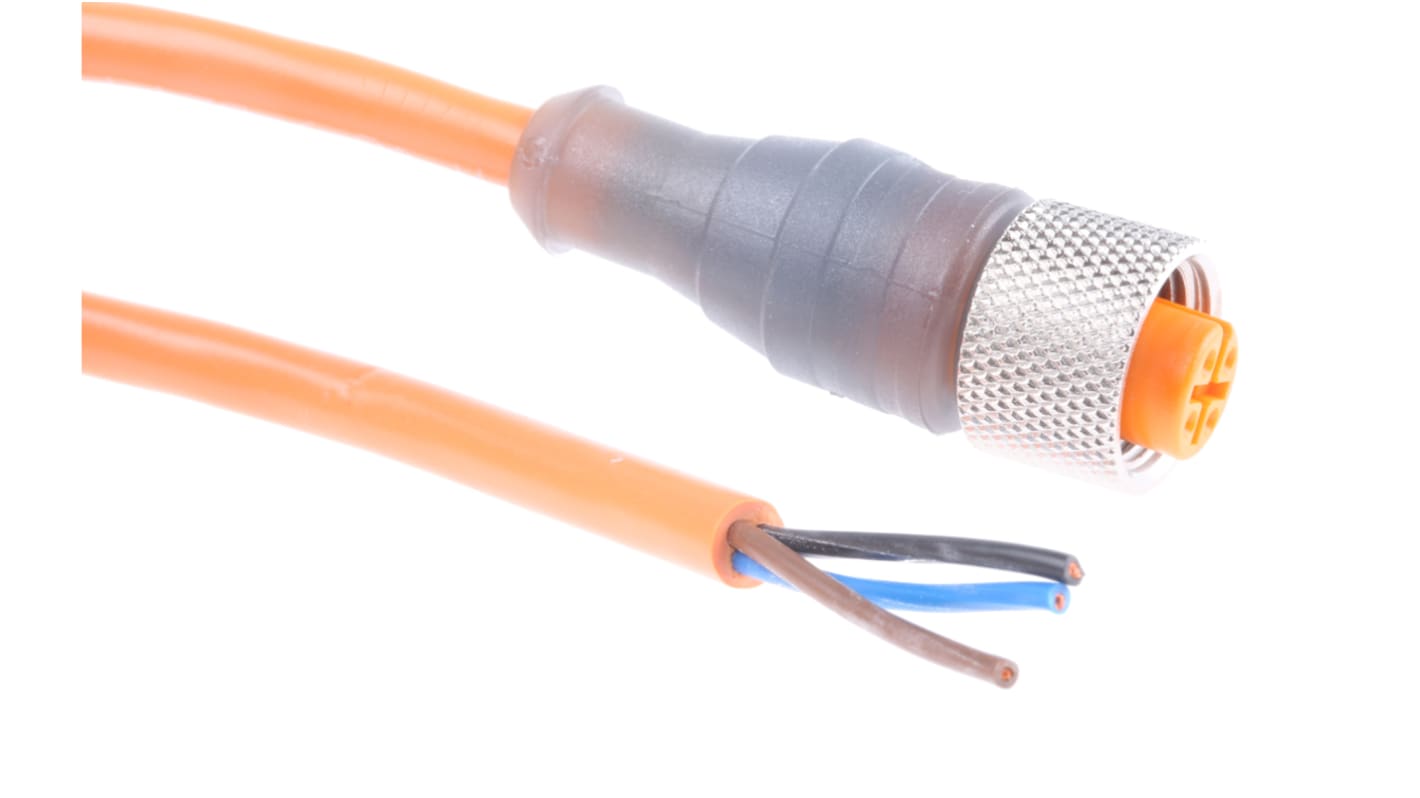

Lumberg Automation Female 3 way M12 to Free End Sensor Actuator Cable, 2 m
- RS 제품 번호:
- 724-2608
- 제조사 부품 번호:
- 11363 RKT 4-3-06/2 M
- 제조업체:
- Lumberg Automation
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩17,070.40
재고있음
- 55 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩17,070.40 |
| 50 - 99 | ₩16,732.00 |
| 100 - 249 | ₩16,412.40 |
| 250 + | ₩16,074.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 724-2608
- 제조사 부품 번호:
- 11363 RKT 4-3-06/2 M
- 제조업체:
- Lumberg Automation
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lumberg Automation | |
| Series | RKT | |
| Product Type | Sensor Actuator Cable | |
| Cable Length | 2m | |
| Jacket Colour | Black | |
| Jacket Material | Polyvinyl Chloride | |
| Connector Type A | M12 | |
| Connector Gender A | Female | |
| Number of Contacts A | 3 | |
| Connector Type B | Free End | |
| Voltage | 250 V | |
| Standards/Approvals | UL | |
| IP Rating | IP67 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lumberg Automation | ||
Series RKT | ||
Product Type Sensor Actuator Cable | ||
Cable Length 2m | ||
Jacket Colour Black | ||
Jacket Material Polyvinyl Chloride | ||
Connector Type A M12 | ||
Connector Gender A Female | ||
Number of Contacts A 3 | ||
Connector Type B Free End | ||
Voltage 250 V | ||
Standards/Approvals UL | ||
IP Rating IP67 | ||
Belden Lumberg Automation Sensor Actuator Cable, 4A Current Rating, IP67 Rating - RKT Series - 11363 RKT 4-3-06/2 M
Need to keep signals moving, even when the going gets tough? This sensor actuator cable from Belden Lumberg Automation handles the pressure. An IP67 rating shows it's waterproof and fully protected against dust, so does its job of carrying data reliably in harsh conditions. One end has a female connector, while the other is left unterminated, so you can choose how to link it up. The three cores are colour-coded to help you out during installation. Thanks to the cable's gold-plated bronze contacts, it gets signals to their destination efficiently.
Features & Benefits
• Industry-standard M12 connector for wide compatibility
• PVC sheath provides effective abrasion resistance
• Coupling screw locks the connection against movement
Applications
• Water treatment plants
• Manufacturing facilities
• Renewable energy production
Can I safely bend this sensor actuator cable?
Yes, the cable handles over one million bending cycles, so you can trust it's flexible.
Note
3 pole (4 poles but 1 not connected) cord set are wired (1-4) brown, no colour, blue and black.
