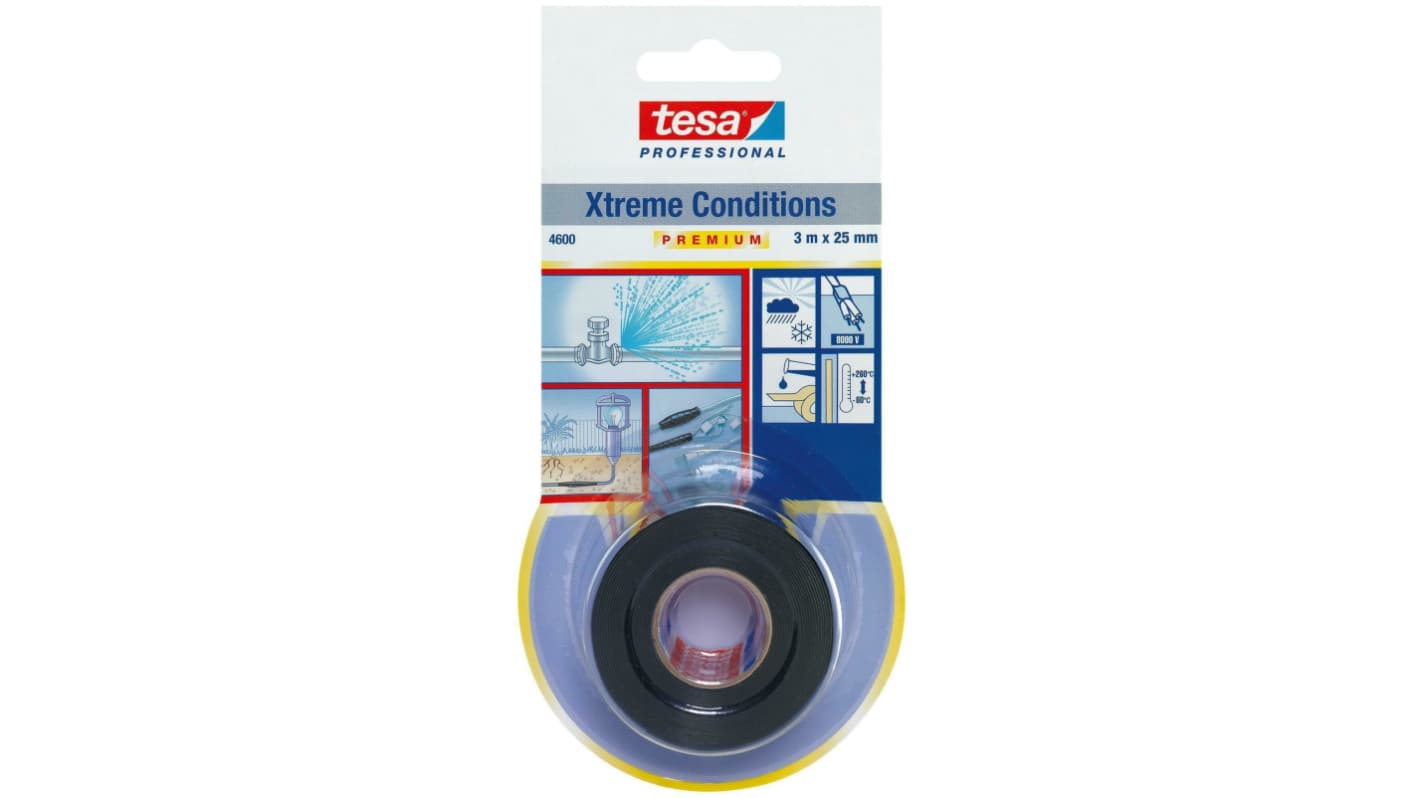

Tesa 4600 Black Self-Amalgamating Tape 25mm x 10 mm

모든 Self Amalgamating Tapes 열람하기

Subtotal (1 unit)*

₩113,373.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
1 +₩113,373.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
282-4508
Distrelec 제품 번호:
110-51-983
제조사 부품 번호:
04600-00006-01
제조업체:
Tesa
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Tesa

Product Type

Self-Amalgamating Tape

Backing Material

Silicone

Width

25mm

Length

10mm

Thickness

0.5mm

Colour

Black

Tensile Strength

33N/cm

Maximum Operating Temperature

260°C

Breakdown Voltage

12000V

Model Number

4600

Minimum Operating Temperature

-60°C

Standards/Approvals

RoHS Exempt

제외

COO (Country of Origin):
US

Tesa Self-Amalgamating Tape, 25mm Width, 0.5mm Thickness - 04600-00006-01


This self-amalgamating tape is a silicone-based, self-fusing insulating wrap designed for demanding electrical and industrial environments. It provides a solid, adhesive-free seal for electrical insulation and emergency repairs across a wide temperature range and is intended for technicians working in automation, electronics, electrical and mechanical sectors.

Features and Benefits:


• Withstands −60°C to 260°C for extreme temperature resilience
• Offers dielectric performance rated at 12000V for high-voltage insulation
• Achieves tensile strength of 33N/cm to maintain mechanical integrity
• Silicone backing ensures heat resistance and flexible conformability
• RoHS Exempt status supports use where restricted substance rules apply

Applications


• Suitable for insulating high-voltage terminations and joints
• Ideal for emergency wiring repairs on industrial equipment
• Used for bundling and protection of sensor and control cables
• Can be used for sealing connections in high-temperature assemblies
• Suitable for temporary waterproofing of electrical components

How does it behave when wrapped around irregular shapes?


The silicone formulation fuses to itself, forming a homogeneous, gap-free layer that conforms to uneven profiles without adhesive, preserving insulation continuity.

What mechanical stresses can it tolerate in handling and assembly?


Its 33N/cm tensile strength provides resistance to stretching and shear during installation, reducing the risk of rupture under routine manipulation.

Is it appropriate for use on live equipment during short repairs?


Its high dielectric rating and self-fusing property allow it to be applied as a temporary insulating measure on live systems, provided safe working practices are followed.

How does the material resist thermal cycling in continuous operation?


The silicone construction maintains elasticity and electrical properties across repeated cycles between −60°C and 260°C, limiting embrittlement and loss of insulation.

What Visual and dimensional details aid Rapid identification?


The product is finished in black, supplied in a 25mm width with a 0.5mm thickness and a 10mm length specification for Compact repair tasks.
