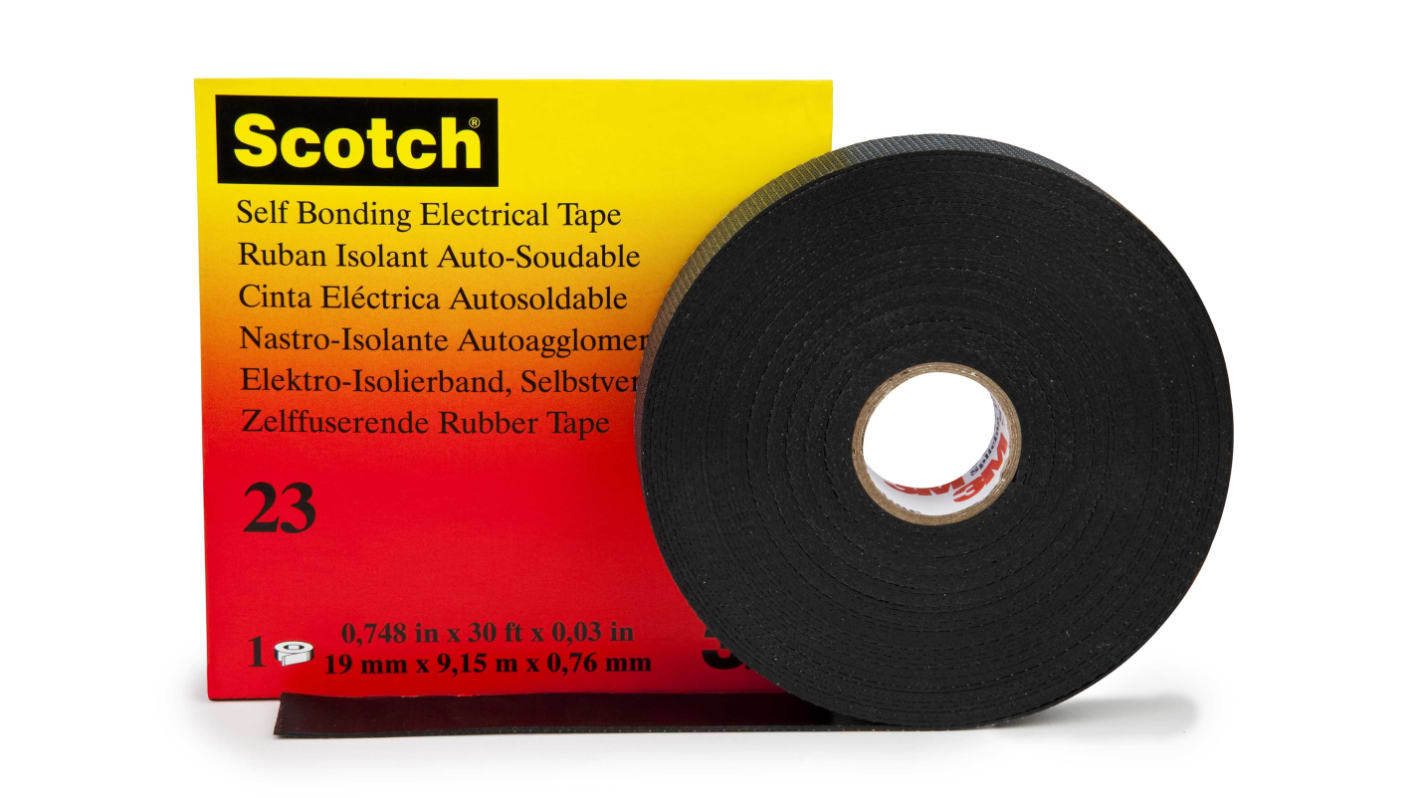

3M Scotch® 23 Black Self Amalgamating Tape 19mm x 9.15m
- RS 제품 번호:
- 192-1605
- 제조사 부품 번호:
- SCOTCH 23 9.15X19
- 제조업체:
- 3M
가격 개당**
₩29,069.04
66 개 홍콩에 재고-결제 확인후 2-3영업일내 국내 도착*
1008 <재고있음> 5-9영업일내 홍콩 발송
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩29,069.04 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 192-1605
- 제조사 부품 번호:
- SCOTCH 23 9.15X19
- 제조업체:
- 3M
- COO (Country of Origin):
- BR
Scotch ™ 23 self-amalgamating tapes
Scotch® Rubber Splicing Tape 23 is a highly conformable 0.76 mm thick, self-amalgamating EPR (Ethylene Propylene Rubber) base for rubber splicing. It is designed to splice and terminate cables with overload temperatures of 266 degrees F(130 degree C), due to dissipating heat affectively. The snakeskin liner is easily removed when applying the tape, to allow the self-fusing ethylene propylene rubber, high insulating voltage tape.
Self-amalgamating tapes made from an insulating elastomer, usable at low, medium and high voltages.
The layers amalgamate into a homogeneous mass after application.
Applications: reconstitution of insulating cable up to 69 kV, replacing soldering, metal braids on lead sheathing, making waterproof joints.
The layers amalgamate into a homogeneous mass after application.
Applications: reconstitution of insulating cable up to 69 kV, replacing soldering, metal braids on lead sheathing, making waterproof joints.
Features and Benefits
• Features a special polyester liner that will not stick when unwinding
• Stretch up to 100% for void-free, moisture-resistant insulation
• Non-vulcanising and shelf stable
• Highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape
• Ideal for moisture sealing electrical connections
• Black
• Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
• Temperature rated for continuous adhesion to 90°C
• Stretch up to 100% for void-free, moisture-resistant insulation
• Special polyester liner keeps tape protected and clean during application
• Non-vulcanising and shelf stable
• ASTM Approved & RoHS 2002/65/EC Compliant
• Temperature rated for continuous adhesion to 90°C
• Stretch up to 100% for void-free, moisture-resistant insulation
• Special polyester liner keeps tape protected and clean during application
• Non-vulcanising and shelf stable
• ASTM Approved & RoHS 2002/65/EC Compliant
Application
• Use Scotch® Rubber Splicing Tape 23 for low or high voltage applications and joints up to 69 kV.
• This 0.76 mm thick, highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape can be stretched up to 100% for void-free, moisture-resistant insulation.
• It’s non-vulcanising and shelf-stable with excellent electrical properties.
Featuring a special polyester liner that will not stick when unwinding, this tape is ideal for moisture sealing electrical connections.
• This 0.76 mm thick, highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape can be stretched up to 100% for void-free, moisture-resistant insulation.
• It’s non-vulcanising and shelf-stable with excellent electrical properties.
Featuring a special polyester liner that will not stick when unwinding, this tape is ideal for moisture sealing electrical connections.
Can wires with exposed cables be made safe with this tape?
Yes, the electrical tape is designed for this purpose, but would recommended seek professional advice to deal with exposed wires.
3M Self-Amalgamating Tape, 0.76mm Thickness, 1.4KN/m Tensile Strength - Scotch 23 Series - SCOTCH 23 9.15X19
Looking for a tape that can handle the heat? Look no further than this self-amalgamating tape from 3M. Its highly conformable ethylene propylene rubber is designed specifically for splicing and terminating cables with overload temperatures of up to +130°C to make quick work of heavy-duty electrical jobs. This product stretches up to 1000% of its original size, and it provides a moisture-resistant and void-free barrier that won't fail you in tough conditions.
Features & Benefits
• Polyester lining prevents self-sticking, making installation a breeze without getting in a tangle
• Thick 0.76mm tape won't crack or rip when exposed to the elements
• 5-year shelf life ensures long-term effectiveness without the need for frequent replacement
• Thick 0.76mm tape won't crack or rip when exposed to the elements
• 5-year shelf life ensures long-term effectiveness without the need for frequent replacement
Applications
• Automotive industry
• Electrical insulation
• Aerospace engineering
• Electrical insulation
• Aerospace engineering
How much insulation does this tape provide?
This tape safely insulates solid dielectric cables between 600V and 69kV, making it ideal for most industrial electric applications.
속성 | 값 |
|---|---|
| Backing Material | EPDM |
| Width | 19mm |
| Length | 9.15m |
| Thickness | 0.76mm |
| Colour | Black |
| Adhesion Strength | Non-adhesive |
| Tensile Strength | 14N/cm |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -18°C |
| Model Number | Scotch® 23 |
