Siemens SIRIUS ACT 3SU10 Series 3 Position Illuminated Selector Switch Head, 30 mm Cutout, IP67, IP69K, IP66
- RS 제품 번호:
- 173-6754
- 제조사 부품 번호:
- 3SU1062-2DL60-0AA0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩123,460.00
제조사가 재고 비축중
- 2026년 9월 21일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩123,460.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS 제품 번호:
- 173-6754
- 제조사 부품 번호:
- 3SU1062-2DL60-0AA0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Selector Switch Head | |
| Illuminated | Yes | |
| Number of Positions | 3 | |
| Cutout Diameter | 30mm | |
| Switch Operation | Latching | |
| Series | SIRIUS ACT 3SU10 | |
| IP Rating | IP67, IP69K, IP66 | |
| Angle of Throw | 45 ° | |
| Standards/Approvals | RoHS | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Selector Switch Head | ||
Illuminated Yes | ||
Number of Positions 3 | ||
Cutout Diameter 30mm | ||
Switch Operation Latching | ||
Series SIRIUS ACT 3SU10 | ||
IP Rating IP67, IP69K, IP66 | ||
Angle of Throw 45 ° | ||
Standards/Approvals RoHS | ||
Better World Product Yes | ||
Better World Claim Extended Product Life | ||
- COO (Country of Origin):
- CZ

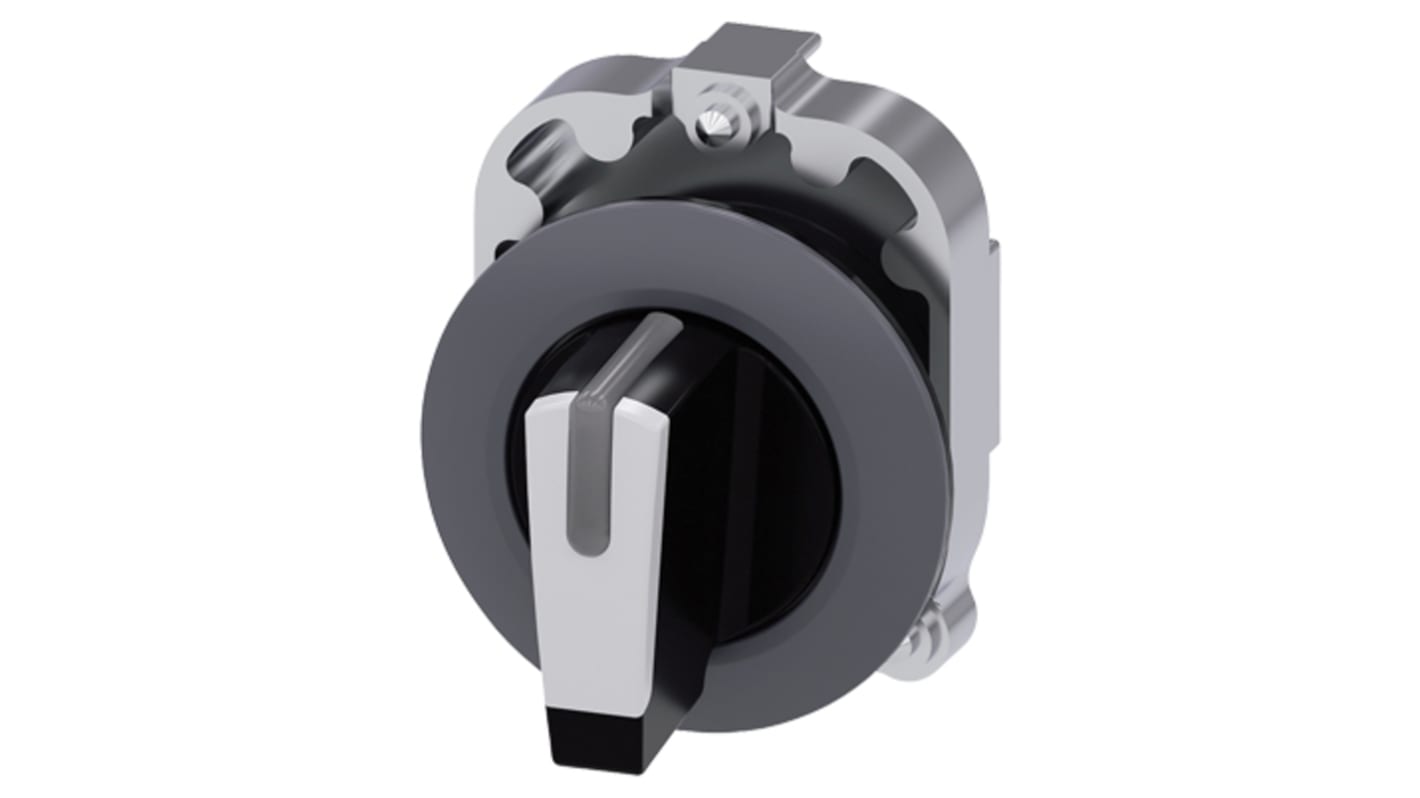

Siemens Selector Switch
The Siemens SIRIUS ACT series is a latching contact selector switch. It is a 3 switch position key with 2 Ronis keys. It has a matt finish grey metal front ring and a white switch actuator.
Features and Benefits
• Cost efficient
• Elegant black look
• High durability and reliability
• Industry standards compliant
• Lightweight
Applications
• Electrical circuits
• Electrical power isolators
• Factory automation
• Fire alarm systems
• Fuse boxes
• Industrial cabinets
Certifications
• CE certified
• CSA certified
• DIN EN 61373
• EAC approved
• IEC 60068-2-27
• IEC 60068-2-6
• IP66 rated
• IP67 rated
• IP69K rated
• NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• UL listed
