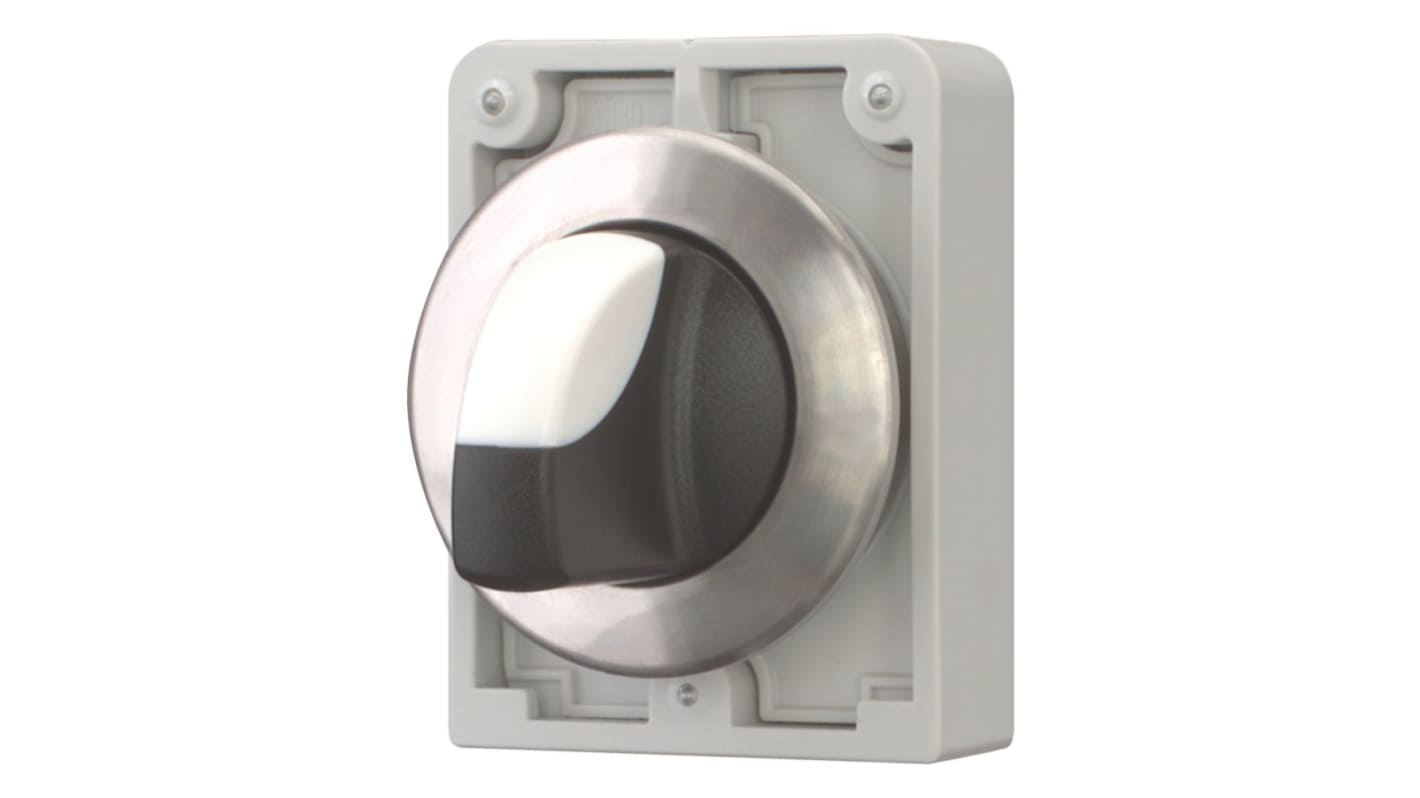

Eaton M30 Series 3 Position Selector Switch Head, 30 mm Cutout, Black Handle, IP66
- RS 제품 번호:
- 246-648
- 제조사 부품 번호:
- 188187 M30I-FWRK3
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩53,160.00
제조사가 재고 비축중
- 2026년 10월 26일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩53,160.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-648
- 제조사 부품 번호:
- 188187 M30I-FWRK3
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Selector Switch Head | |
| Illuminated | No | |
| Number of Positions | 3 | |
| Cutout Diameter | 30mm | |
| Switch Operation | Latching, Maintained | |
| Series | M30 | |
| IP Rating | IP66 | |
| Angle of Throw | 60 ° | |
| Standards/Approvals | VDE 0660 IEC/EN 60947 CSA file No. 012528 CSA Class No.:3211-03 DNV UL File No.:E29184 GL IEC/EN 60947-5 UL 508 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 CE marking UL Category Control No.:NKCR UL Listed CSA | |
| Mechanical Life | 100000Operations | |
| Actuator Colour | Black | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Selector Switch Head | ||
Illuminated No | ||
Number of Positions 3 | ||
Cutout Diameter 30mm | ||
Switch Operation Latching, Maintained | ||
Series M30 | ||
IP Rating IP66 | ||
Angle of Throw 60 ° | ||
Standards/Approvals VDE 0660 IEC/EN 60947 CSA file No. 012528 CSA Class No.:3211-03 DNV UL File No.:E29184 GL IEC/EN 60947-5 UL 508 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 CE marking UL Category Control No.:NKCR UL Listed CSA | ||
Mechanical Life 100000Operations | ||
Actuator Colour Black | ||
- COO (Country of Origin):
- DE
The Eaton durable selector switch from Eaton is engineered for precision and reliability in demanding environments. Designed as part of the Moeller series M30, it features a unique thumb-grip mechanism allowing for effortless operation across three positions. Crafted with a stainless steel front ring, this model not only adds a touch of sophistication but also meets strict standards for protection and operational efficiency. Its robust design ensures a long lifespan with up to 100,000 mechanical operations, making it an excellent choice for applications requiring consistent performance. Additionally, it boasts excellent resistance to environmental factors, ensuring stability and reliability in various conditions.
Maintains a sleek aesthetic with its flat front design
Offers superior protection with an IP66 rating
Built to endure extreme temperatures ranging from -40 °C to 70 °C
Features a stay-put/spring-return function for versatile operation
Designed for easy installation, reducing setup time
Equipped with a stainless steel bezel for added durability
Complies with multiple international safety certifications
Offers a switching angle of 60° for improved operational control
