제조사부품번호

RS PRO 36 Way Cable SCSI Connector, Solder

RS 제품 번호:: 239-1213
Distrelec 제품 번호:: 304-19-077
제조업체:: RS PRO

RS PRO 36 Way Cable SCSI Connector, Solder

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩6,840.00

148 개 단위 배송 준비 완료
추가로 2026년 12월 30일 부터 200 개 단위 배송
추가로 2027년 4월 20일 부터 200 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 24	₩6,840.00
25 - 74	₩6,720.00
75 - 199	₩6,540.00
200 - 399	₩6,380.00
400 +	₩6,080.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 239-1213
Distrelec 제품 번호:: 304-19-077
제조업체:: RS PRO

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Product Type	SCSI Connector
	Number of Contacts	36
	Mount Type	Cable
	Contact Material	Brass
	Contact Plating	Gold
	Minimum Operating Temperature	-55°C
	Termination Type	Solder
	Maximum Operating Temperature	105°C
	Series	RS PRO

	모두 선택
	브랜드 RS PRO
	Product Type SCSI Connector
	Number of Contacts 36
	Mount Type Cable
	Contact Material Brass
	Contact Plating Gold
	Minimum Operating Temperature -55°C
	Termination Type Solder
	Maximum Operating Temperature 105°C
	Series RS PRO

COO (Country of Origin):: TW

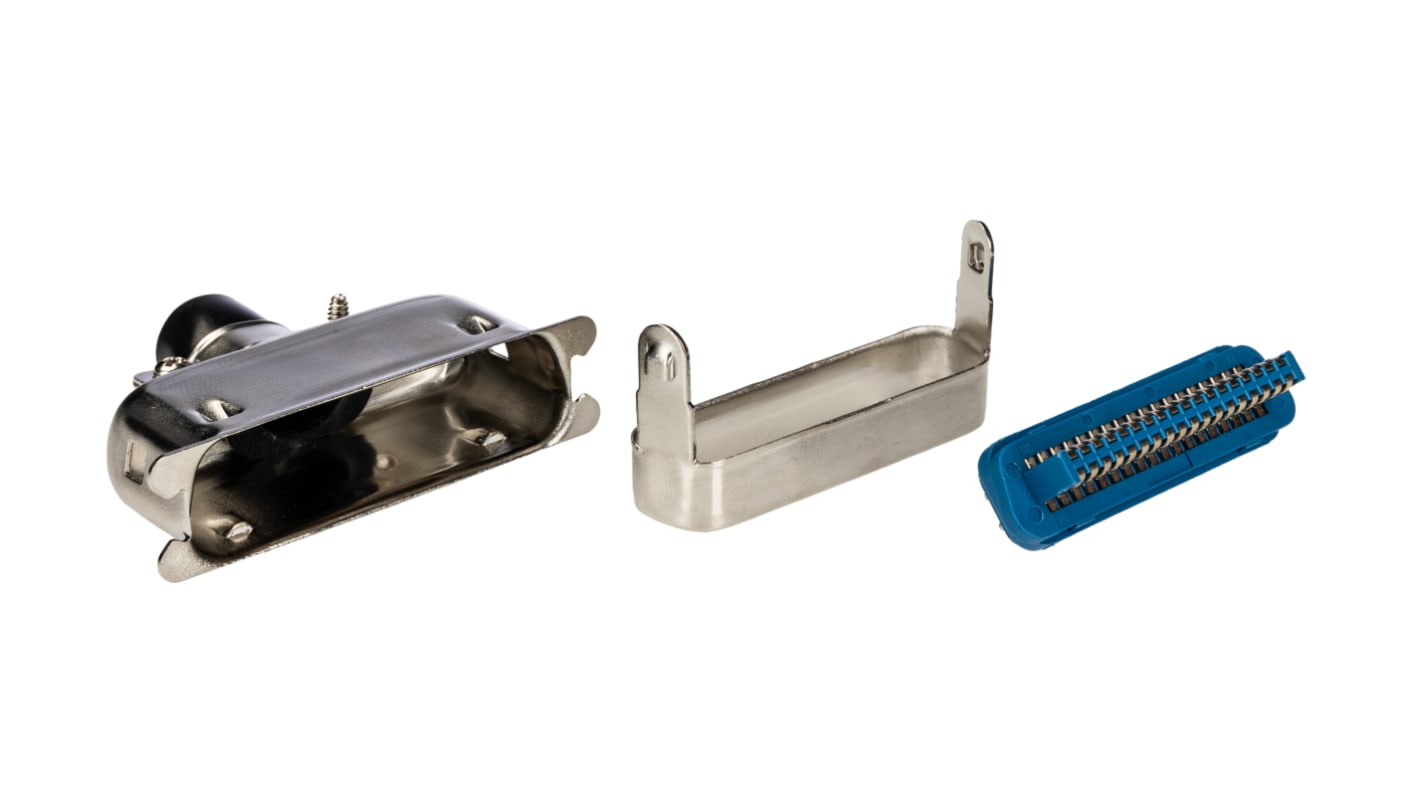

RS PRO 36 Way Cable Mount D-sub Connector Plug

A D-sub connector is a simple way of making I/O (input/output) interconnections and is used across industry in networking, communications and computing systems. This RS PRO 36-way cable mount plug features a double row of pins and couples with a compatible female connector.

The housing is made from PBT (polybutylene terephthalate), a polymer known for its insulating properties. Tin-plated solder bucket terminations defend against corrosion. The connector is protected by a sturdy D-shaped metal cover which ensures the plug stays in the correct position when paired and also provides a supportive shield. A rubber cable gland helps stop dust and dirt from getting into the unit.

This connector plug meets international standards that guarantee the safety and efficacy of the product. It has been carefully tested to ensure its quality as a Thyristor AC power controller (IEEE 428) and 8-bit parallel multi-master interface bus (IEEE 488).

You can find D-sub connectors in any industry where computers are networked and attached to output devices such as printers or monitors, for example.

Features and Benefits

• 36 contacts

• Overall dimensions of 61.6 mm length x 15.3 mm depth x 42.4 mm width

• 1A current rating

• Straight body orientation

• Minimum operating temperature of -55°C without cracking

• Maximum operating temperature of +105°C without melting

• Gold contact plating, brass contact material, PBT housing material for effective conductivity and insulation

• Conforms to standards IEEE 428, IEEE 488

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Cable Mounting Plugs

Plugs with tin-plated solder bucket terminations, supplied with a shielded metal cover and rubber cable gland.

Standards

IEEE 428; IEEE 488
