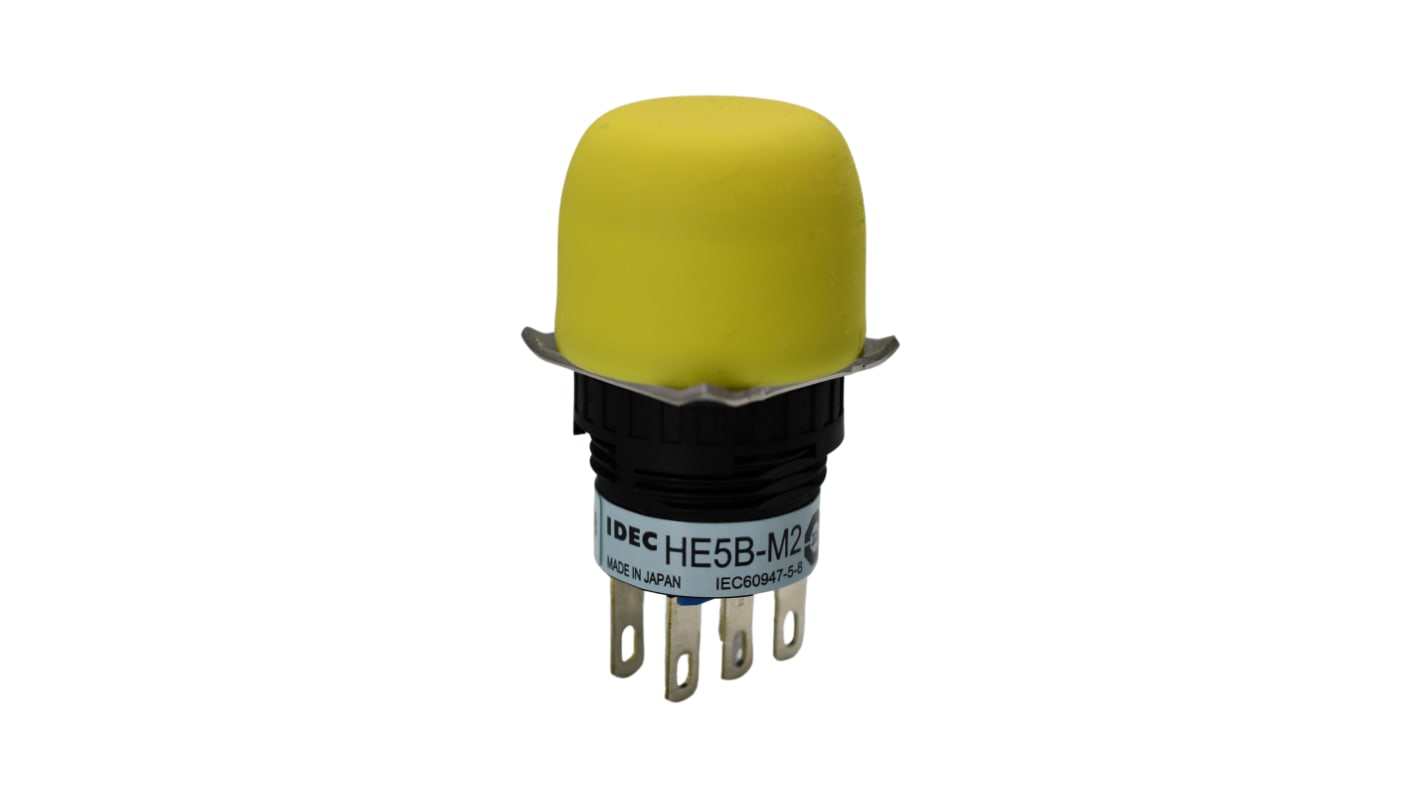

Idec HE5B Series Safety Enabling Switch, 3 Position, DPDT, IP65
- RS 제품 번호:
- 807-7112
- Distrelec 제품 번호:
- 304-11-315
- 제조사 부품 번호:
- HE5B-M2PY
- 제조업체:
- Idec
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩62,200.00
재고있음
- 추가로 2026년 9월 07일 부터 84 개 단위 배송
- 추가로 2026년 10월 05일 부터 30 개 단위 배송
- 추가로 2026년 11월 02일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩62,200.00 |
| 5 - 9 | ₩60,340.00 |
| 10 - 24 | ₩58,520.00 |
| 25 + | ₩56,840.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 807-7112
- Distrelec 제품 번호:
- 304-11-315
- 제조사 부품 번호:
- HE5B-M2PY
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Product Type | Safety Enabling Switch | |
| Series | HE5B | |
| Contact Configuration | DPDT | |
| Number of Positions | 3 | |
| IP Rating | IP65 | |
| Terminal Type | Solder | |
| Switch Contact Current | 500mA | |
| Minimum Operating Temperature | 25°C | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 125V | |
| Hazardous Area Certification | No | |
| Standards/Approvals | ISO12100-1-2/EN12100-1-2, CSA C22.2 No. 14 (c-UL), IEC/EN60947-5-8 (TÜV Approval), ANSI B11.19, IEC/EN60947-5-1, IEC60204-1/EN60204ISO11161/prEN11161, ISO10218/EN775, ANSI/RIA R15.06, UL508 (UL), GB14048.5 (CCC Approval) | |
| Length | 39mm | |
| Mechanical Life | 100000Operations | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Product Type Safety Enabling Switch | ||
Series HE5B | ||
Contact Configuration DPDT | ||
Number of Positions 3 | ||
IP Rating IP65 | ||
Terminal Type Solder | ||
Switch Contact Current 500mA | ||
Minimum Operating Temperature 25°C | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 125V | ||
Hazardous Area Certification No | ||
Standards/Approvals ISO12100-1-2/EN12100-1-2, CSA C22.2 No. 14 (c-UL), IEC/EN60947-5-8 (TÜV Approval), ANSI B11.19, IEC/EN60947-5-1, IEC60204-1/EN60204ISO11161/prEN11161, ISO10218/EN775, ANSI/RIA R15.06, UL508 (UL), GB14048.5 (CCC Approval) | ||
Length 39mm | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- JP
IDEC HE5B Series Pushbutton Enabling Switch
Ideally suited for use as an enabling switch for manual robotic control. To assist the operator the "On" position requires only light pressure to maintain the function, a higher force is then required to switch from the "On" position to position 3. The contact will not close when released from "Off" position 3 to "Off" position 1. For a suitable IDEC "Pendant Grip" switch housing for HE5B, see RS Stock No. 807-7086. The HE5B series pushbutton enabling switch is the RS Stock No. 807-7112. Rubber boot switch button covers are available in Yellow, RS Stock No. 807-7121, in Black, RS Stock No. 807-7124, in Grey, RS Stock No. 807-7128.
IP65 rated with fitted rubber cover
Mounts in 16 mm round hole
3 position operation Off-On-Off
Enabling Switch
Standards
IEC60947-5-1, EN60947-5-1, JIS C8201-5-1, UL508, CSA C22.2 No 14
