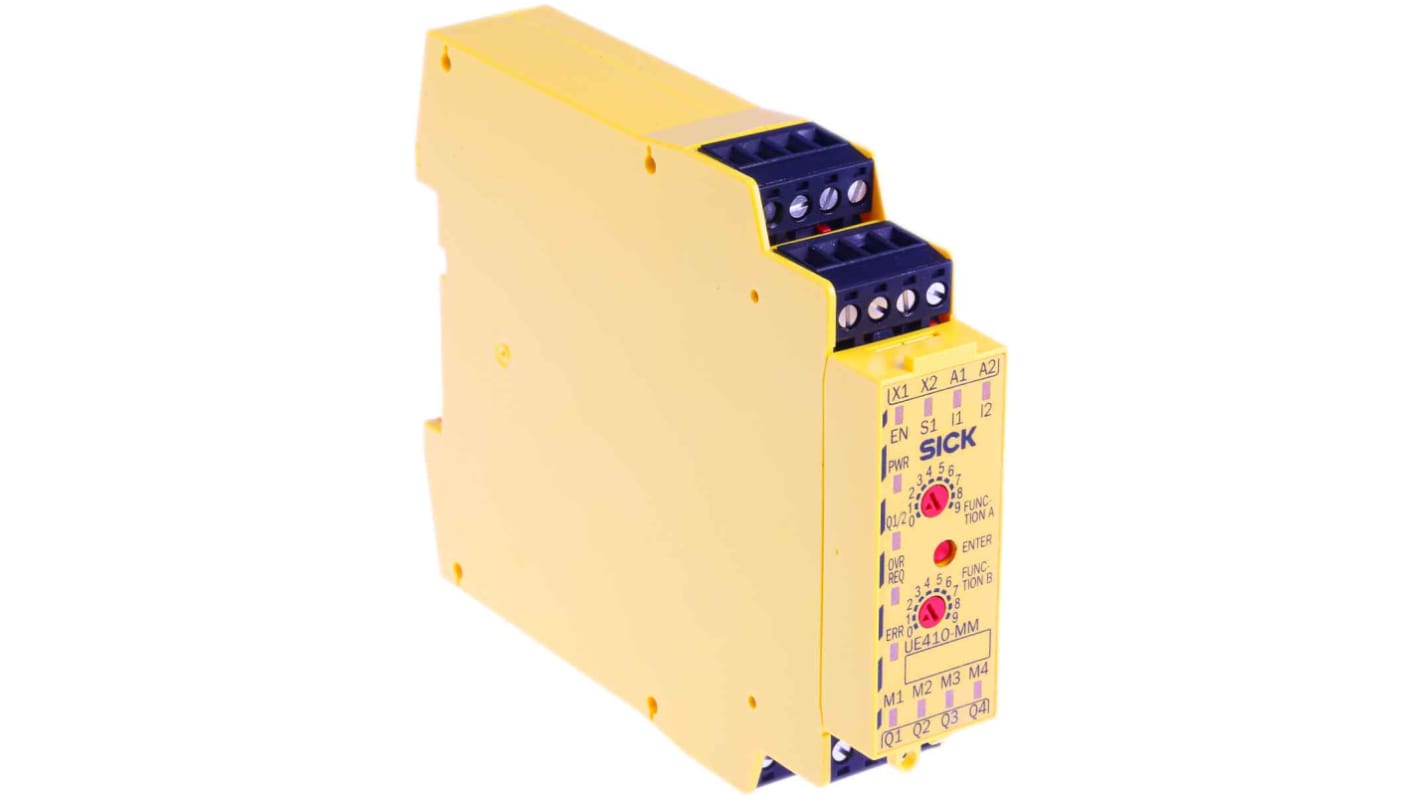

SICK UE410 Series Safety Controller, 2 Safety Inputs, 2 Safety Outputs, 30 V dc
- RS 제품 번호:
- 701-9171
- Distrelec 제품 번호:
- 304-23-273
- 제조사 부품 번호:
- UE410-MM3
- 제조업체:
- SICK
Subtotal (1 unit)*
₩830,847.20
재고있음
- 추가로 2026년 3월 23일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩830,847.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 701-9171
- Distrelec 제품 번호:
- 304-23-273
- 제조사 부품 번호:
- UE410-MM3
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Series | UE410 | |
| Product Type | Safety Controller | |
| Number of Safety Inputs | 2 | |
| Number of Safety Outputs | 2 | |
| Mount Type | DIN Rail | |
| Safety Category | 4 | |
| Supply Voltage | 30 V dc | |
| Number of I/Os | 14 | |
| Contact Voltage | 24V | |
| Width | 22.5 mm | |
| Standards/Approvals | UL, CE | |
| Depth | 120.8mm | |
| Terminal Type | Screw | |
| Length | 96.5mm | |
| IP Rating | IP20, IP40 | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Series UE410 | ||
Product Type Safety Controller | ||
Number of Safety Inputs 2 | ||
Number of Safety Outputs 2 | ||
Mount Type DIN Rail | ||
Safety Category 4 | ||
Supply Voltage 30 V dc | ||
Number of I/Os 14 | ||
Contact Voltage 24V | ||
Width 22.5 mm | ||
Standards/Approvals UL, CE | ||
Depth 120.8mm | ||
Terminal Type Screw | ||
Length 96.5mm | ||
IP Rating IP20, IP40 | ||
- COO (Country of Origin):
- DE
UE410-MM3 Muting Main Unit and UE410-XM3 Muting Extension
Functions include muting and override, concurrence monitoring, monitoring total muting time, sensor gap monitoring, end of muting by ESPE. Applications: Opto-electronic protective devices and non-contact safety switches
2 or 4 muting sensors
1 reset/restart input and external device monitoring
Activation and time adjustable 0.33 to 60 min
Type of output safety capable outputs: PNP semiconductors, short-circuit protected, cross-circuit monitored
Maximum output current: 2A
Maximum response time: 13 ms
Maximum switch on time: 10 s
Maximum power consumption: 3 W
Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), PL e (EN ISO 13849)
